3D CT Scanner - Electrode Alignment
Save
Share
Limited Time Offer
SEC Co.
South Korea
Condition: New
Scale: Production
Status: Lead Time Required
Ships From: South Korea
Product Description

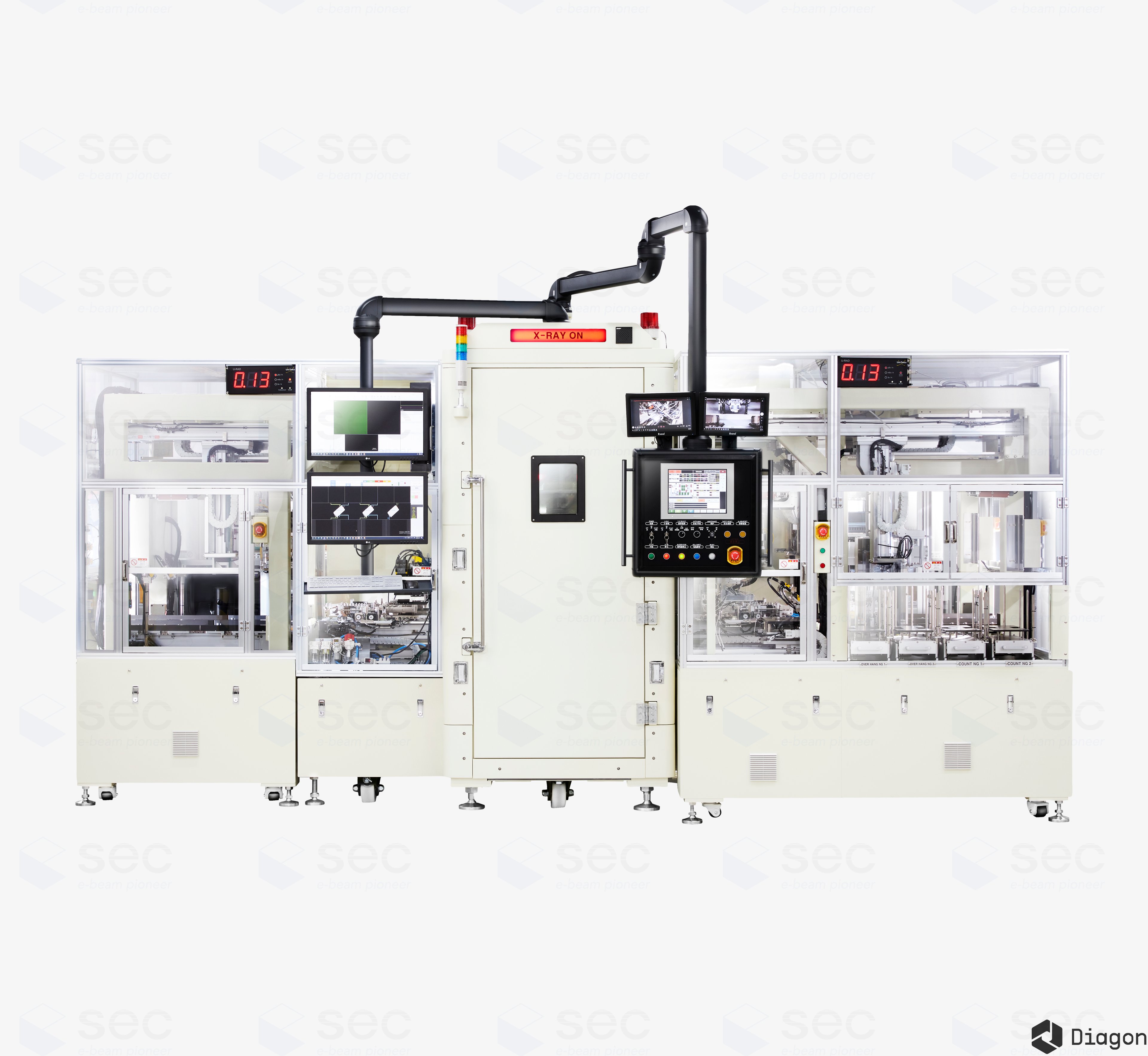

3D CT Stack Cell Alignment Inspection System enables high-speed computed tomography scanning for precise electrode alignment verification in battery cell manufacturing processes.
Key Features

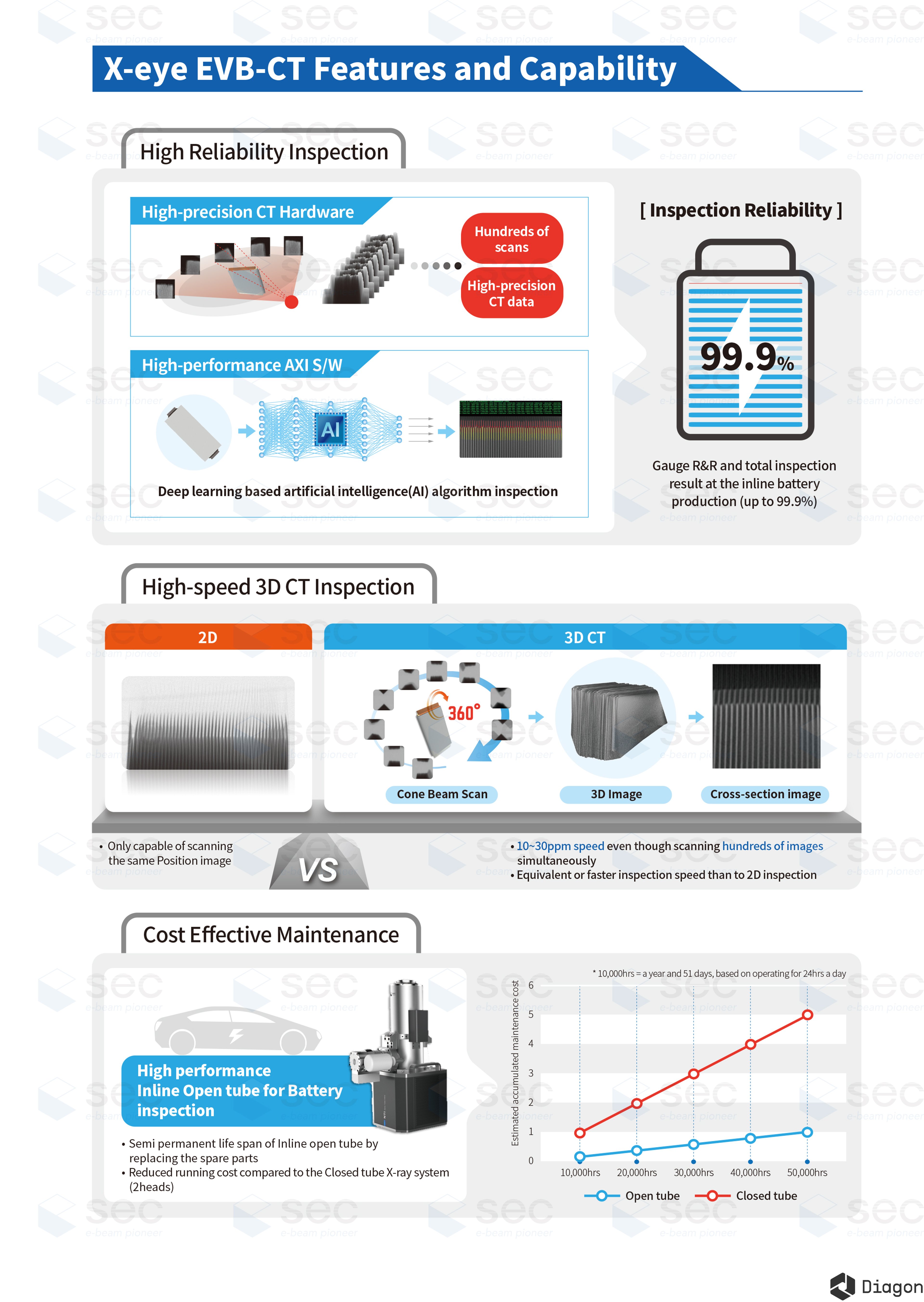

- High-speed inspection capability of 8 parts per minute with 360° rotating scan technology
- Advanced AI deep learning algorithm providing 99.9% inspection reliability for electrode alignment
- Dual scan head configuration with X-ray tube operating at 240kV for comprehensive imaging
- Precise measurement of anode and cathode distances along X and Y axes with automatic inspection technology
- Automated loading/unloading handler system with integrated PLC controls for seamless operation
- Compact footprint with dimensions of 2,776(W) x 1,742(D) x 2,345(H) mm
- Comprehensive HMI interface with process monitoring capabilities including PPM and inspection data
Additional Documentation (NDA Required)
- Detailed Technical Specifications
- System Layout (2D Drawing)
Key Technical Specifications
| Inspection Method | 3D CT | |
| Machine Speed | 8 ppm | |
| X-ray Tube Voltage | 240 kV | |
| Inspection Reliability | 99.9 % | |
| Machine Dimensions | 2,776 x 1,742 x 2,345 mm (W x D x H) | |
| External Leakage Dose | < 1 μSv/h | |
| Power Requirements | 220 V | |
| Machine Weight | 11 ton | |
| Inspection Parameters | Anode-Cathode distance, X-Y alignment | |
| Control System | PLC with HMI interface | |
| Material Handling | Automated un/loader handler |
Output Battery Specs
Form Factors
Prismatic: L 246–246 × W 168–168 × H 28–28 mm
Technical Specifications
No specifications available.
