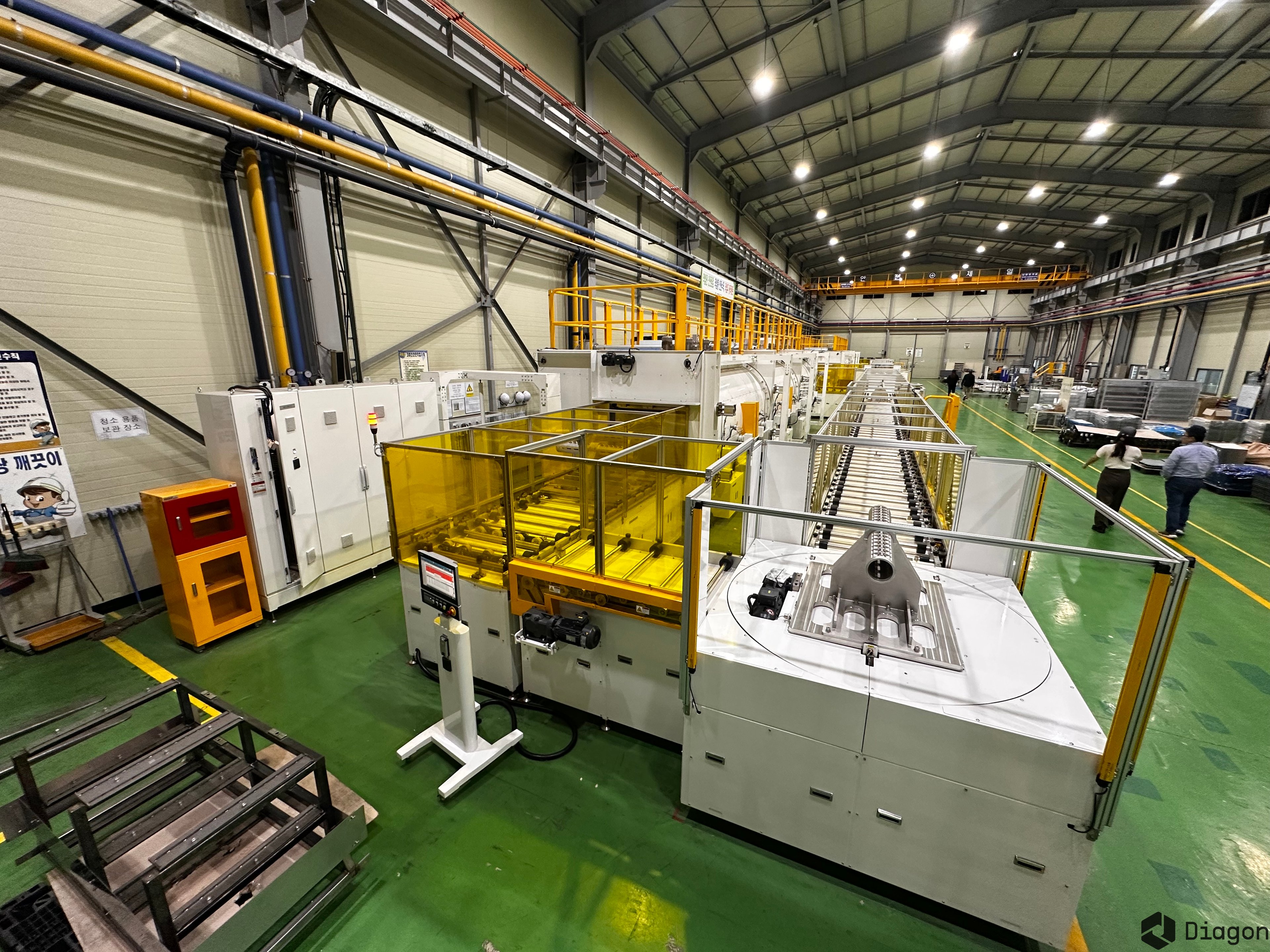

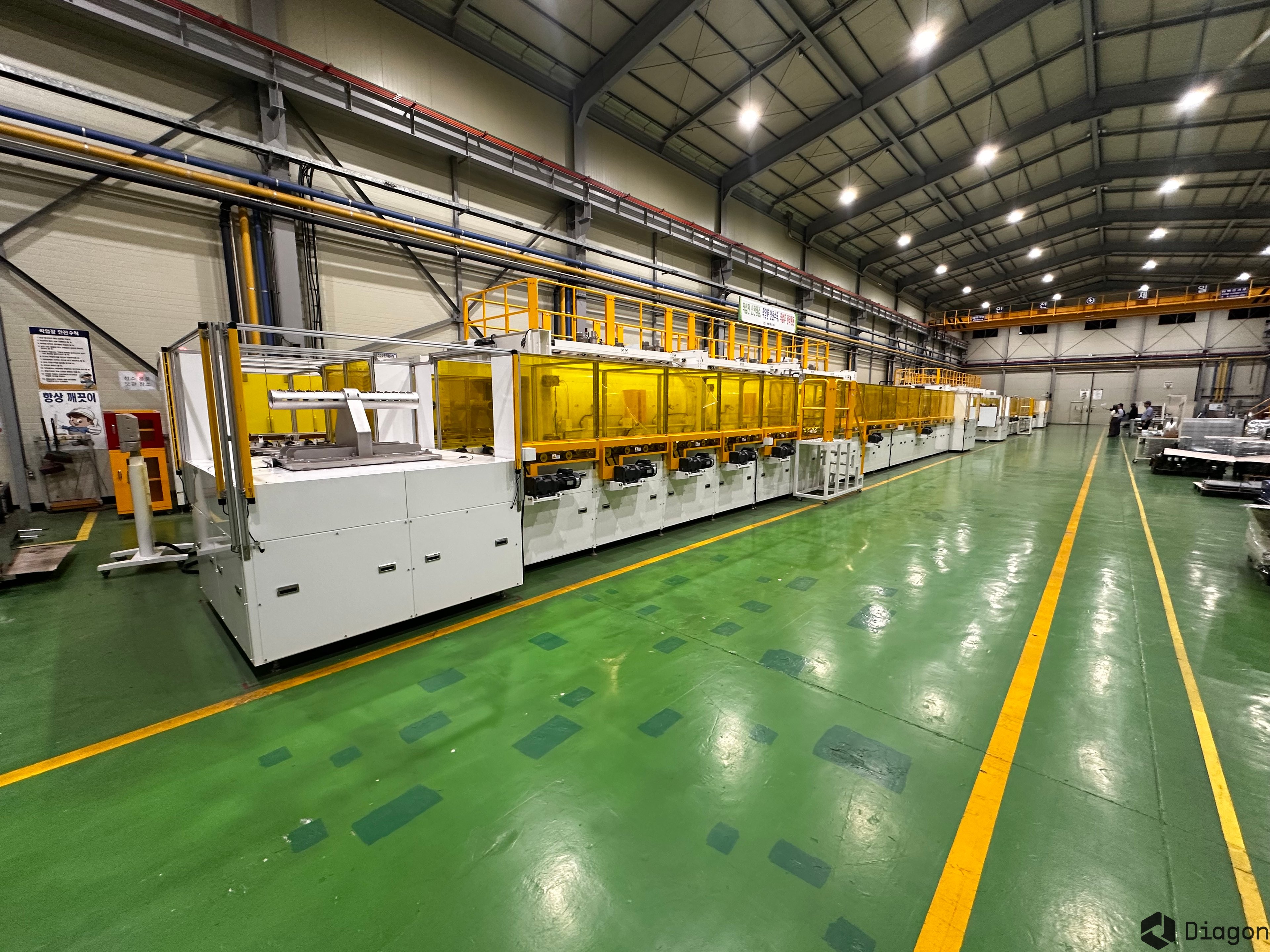

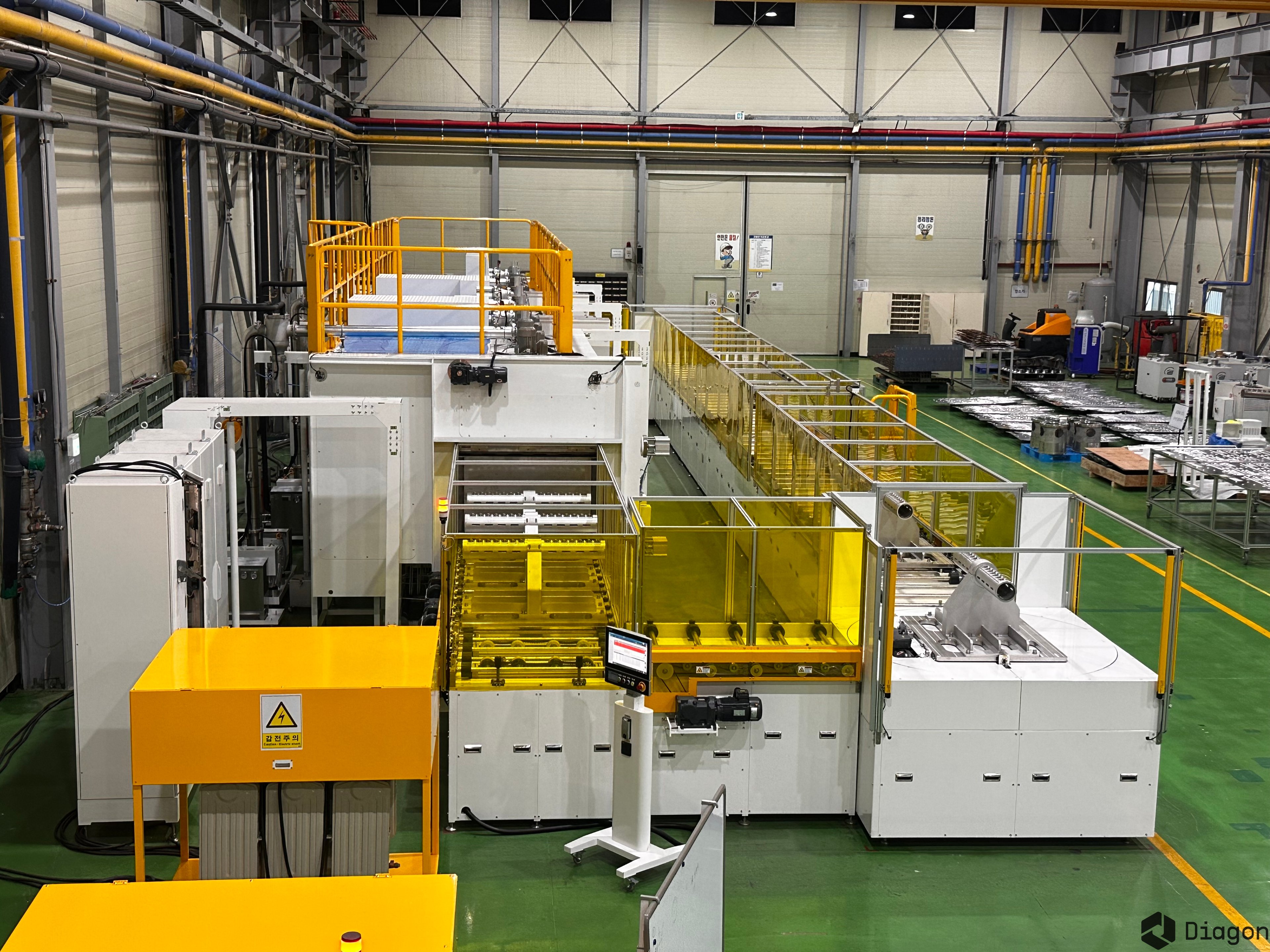

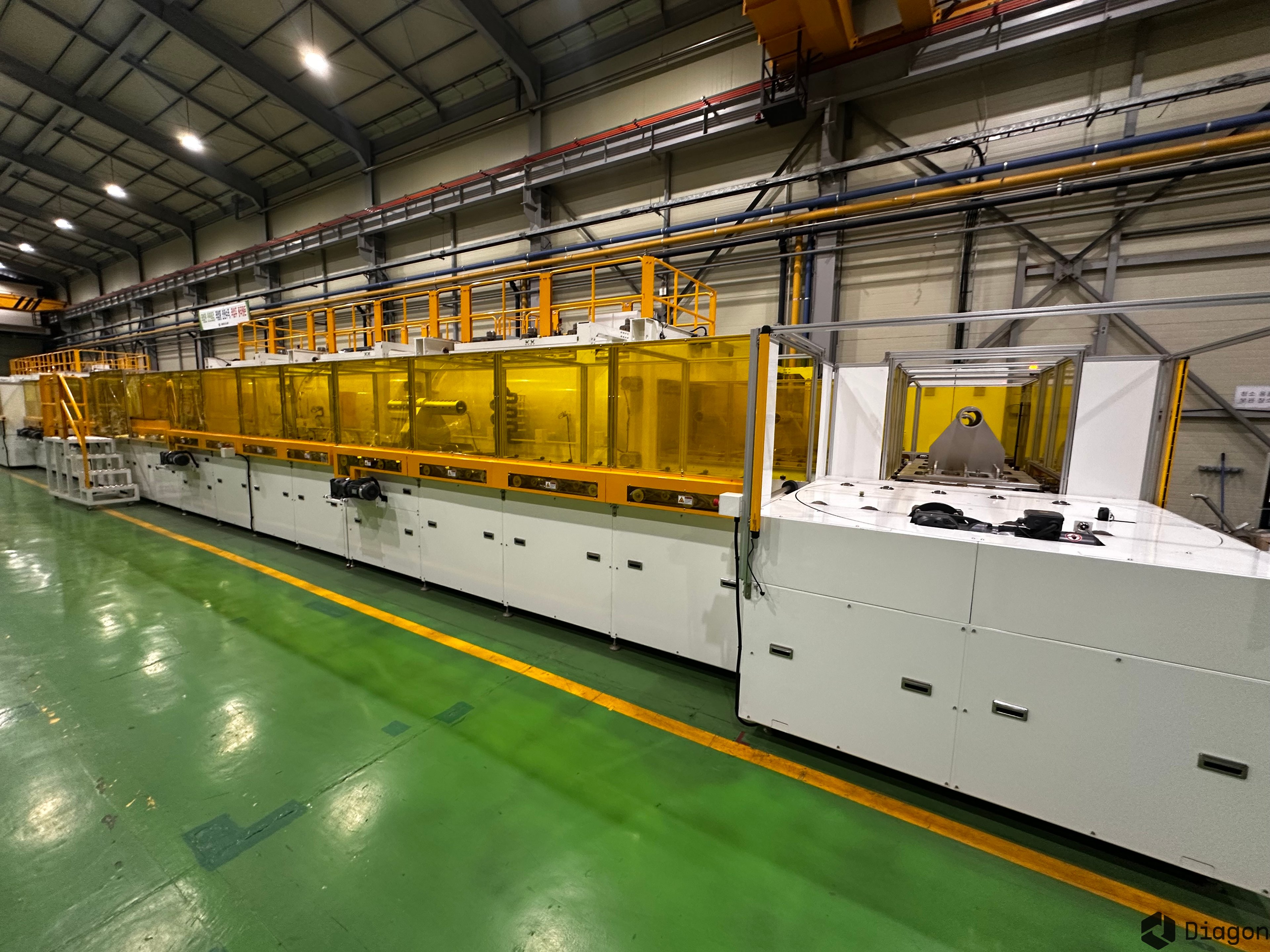

This vacuum drying system is designed for efficient moisture and NMP removal from electrode coated coils in Li-ion battery production. The system consists of two identical drying setups—one dedicated to anode drying and the other for cathode drying—ensuring optimized processing for each coil type. It utilizes a multi-chamber design to ensure consistent temperature ramp-up, vacuum drying, and cooling processes for high-quality battery cell production.

Key Features

• Three-Chamber Process: Includes temperature ramp-up, vacuum dwell, and cooling chambers.
• Capacity: Accommodates anode and cathode coils with a 220mm max width and 500mm max diameter.
• High Temperature Control: Operates at up to 250°C with a vacuum pressure of 0.5 Torr.
• Automation: Features conveyors for seamless loading and unloading.
• Optional Features: Includes a return conveyor for efficient tray handling and safety mechanisms such as light curtains and safety covers.

Additional Documentation (NDA Required)

• BOM
• FAT Run Plan
• Automated Safety Matrix
• Detailed Technical Specs
• Utility Layout (2D Drawing)
• Heater Diagram (2D Drawing)
• Conveyor Diagram (2D Drawing)
• Test Product Data Measurements

Key Technical Specifications
