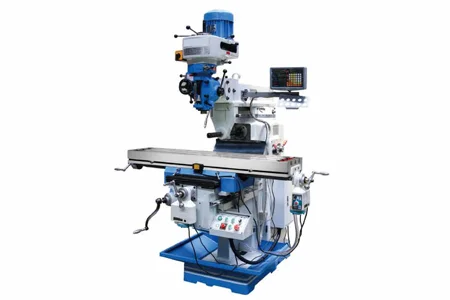

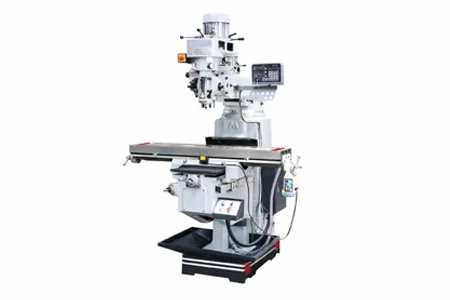

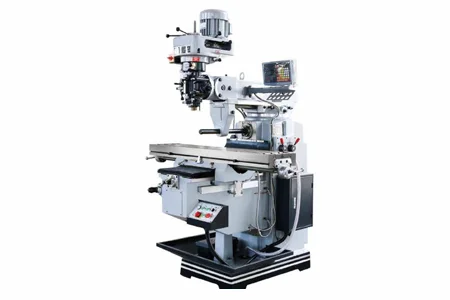

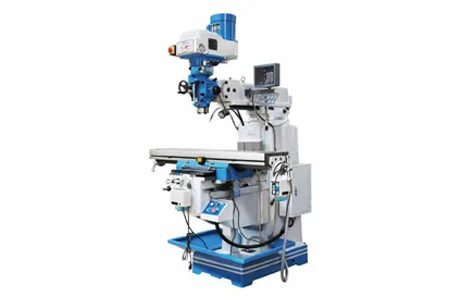

Turret milling machine series 4H 5H 4HW 5HW

Overview

Revolver (turret) milling machine series 4H | 5H | 4HW | 5HW described as a light, universal metal-cutting milling machine with both vertical and horizontal milling functions. It is specified with table sizes (mm) 4H: 1270X254; 5H: 1370X305; 4HW: 1370X305; 5HW: 1570X320. Work travel by axis (mm) is given as X — 4H: 780-850 | 5H: 770-880 | 4HW: 770-850 | 5HW: 970-1070; Y — 4H: 400 | 5H: 380 | 4HW: 380-420 | 5HW: 380-420; Z — 4H: 450 | 5H: 450 | 4HW: 400 | 5HW: 450. T-slot specification is 3-16*50. Distance between spindle and table surface (mm) is 4H: 420 | 5H: 440 | 4HW: 540 | 5HW: 540. Spindle nose type by model: 4H: R8 | 5H: NT40 | 4HW: R8/ISO40 | 5HW: NT40/ISO40, and spindle nose to column (mm) 127 for all models. Spindle speed ranges (rpm): 60Hz: 60-4540 | 50Hz: 66-5440; vertical/horizontal: 60-4540(16 steps)/40-1350(12 steps). Spindle feed range (three steps) (mm): 0.04(0.0015)/0.08(0.003)/0.15(0.006). Main spindle motor power: 4H: 2.2kW/3hp; 5H: 3.7kW/5hp; 4HW: V/H(2.2/3); 5HW: V/H(3.75/3). Head rotation (left-right) is 90° and head tilt (front-back) is 45° for all models. Packing dimensions (mm): 4H: 1700X1600X2000 | 5H: 1700X1600X2000 | 4HW: 1800X1780X2350 | 5HW: 1800X1780X2350. Machine weight (kg): 4H: 1200 | 5H: 1350 | 4HW: 1400 | 5HW: 1400. The machine supports both vertical and horizontal milling operations and can mill planes, chamfers, grooves and splines of medium and small parts. It is stated to be widely used in machining, in the production of press molds, and for instruments and tools as well as in other sectors of industry. Warranty and availability information provided: 1 year warranty on the equipment, in stock, delivery to RF and CIS countries, and 24/7 service; listed price: 0 ₽.
