Pallet Conveyors | Comau APC

Overview

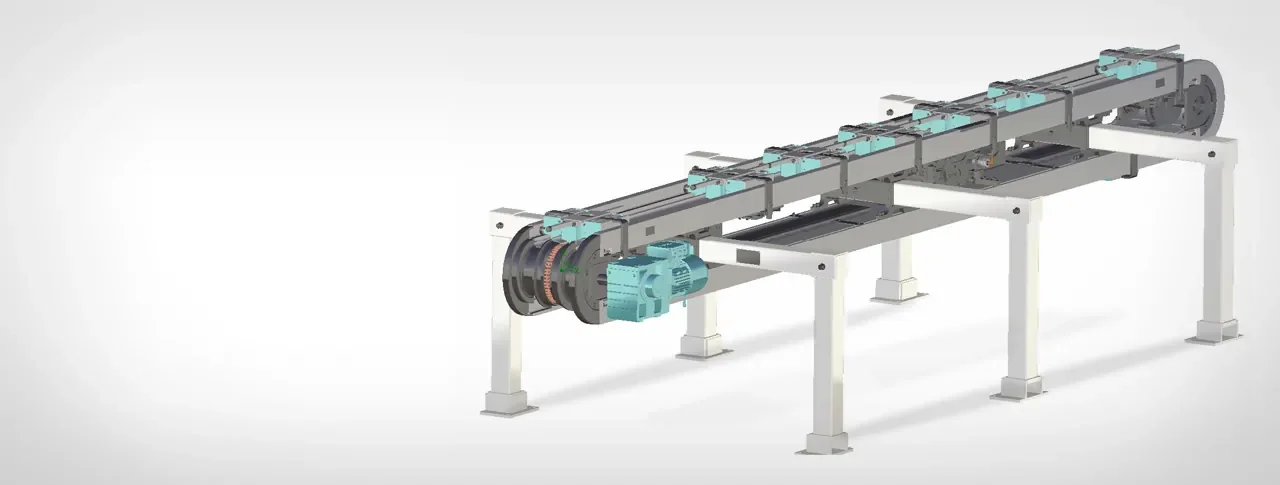

The Accumulate Pallet Conveyors (APC) is a configurable pallet conveyor system designed for simplicity to speed conveyor composition for standard applications and with component commonality so parts do not change according to different conveyor lengths. The product offers complete flexibility including floor mounted or overhead installation and front or lateral loading options. - Conveyor Length: 2  12 m (Standard) ; 12  100 m (Custom) - Conveyor Weight: 100 Kg/m - Transport Speed (max.): 10 m/min - Payload (max.): 100 Kg/m (specific fixture + part) - Pallet width (max.): 1200 mm - Motor mounting: Clamped directly onto the driving shaft with anti-rotation bracket - Maximum installable power: 0,55 kW - Flying roller chain: 1 triple chain with 12,7 mm pitch - Pallet position control: by inductive limit switches - Pallet stopping accuracy: ± 0,5 mm - Height of transport level: 800  1050 mm (floor mounted) - Conveyor structure: Aluminum - Load per stopper (max.): 10 pallets - No air needed: ecosustainable - Chain oil free The APC supports installation as floor mounted or overhead conveyors and allows front or lateral pallet loading, accommodating pallet widths up to 1200 mm. It provides pallet position control by inductive limit switches and pallet stopping accuracy of ± 0,5 mm for applications requiring precise pallet positioning. The design uses wide standard units to simplify engineering processes, operates without the need for air (ecosustainable) and with an oil-free chain, and is offered with global engineering/process support and worldwide distribution.
