High Temperature/High Pressure Series Heat Exchangers

Overview

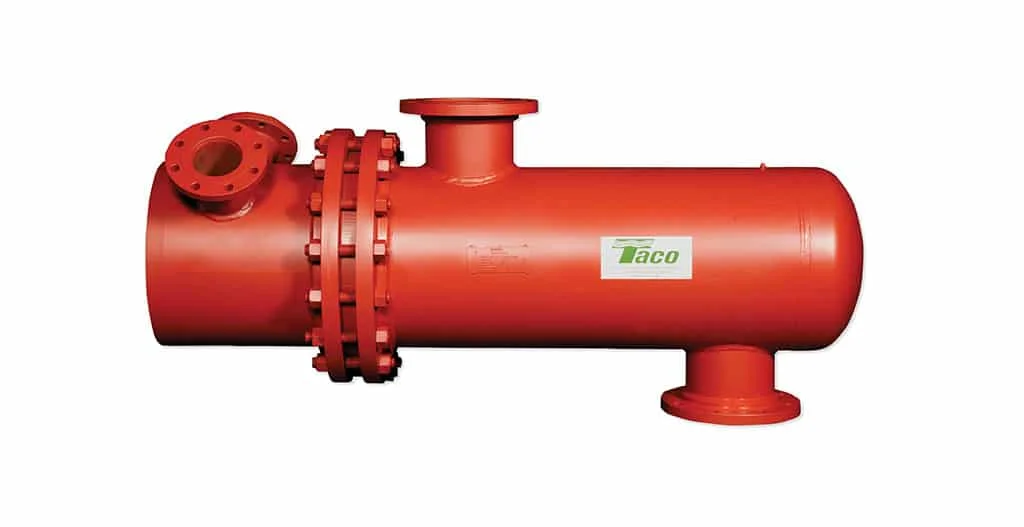

Taco U-Tube High Temperature/High Pressure Series Heat Exchangers are designed, constructed and tested to ASME Section VIII, Div. 1 requirements. They are available in a wide range of materials, with all fabrication done in-house, and computerized product selection to match application requirements. Performance data: Connection sizes: 1-14″; Diameters: 4-30″; Max. Length: 10ft. Standard; Working Pressure: 400PSI Standard Tube Side, 150PSI Shell Side (Optional Higher Pressures); Max. Operating Temp.: 450°F (Optional Higher Temperatures). Additional features include NSF/ANSI 372 Certified and Listed, availability in 2 or 4 pass construction, National Board Registration, and optional CRN registration. Products featuring eLink® provide cloud-based support, monitoring, or controls accessible from mobile phones, tablets, and laptops. Documented applications include Hot Water Heating Systems, Closed Cooling Circuits, Air Conditioning Systems, Hydronic Heating & Cooling, Solar / Geothermal, Pool and Spa, and use with water/glycol concentrations up to 50%. The product line’s eLink capability is described as providing support, monitoring and controls for both residential and commercial applications.
