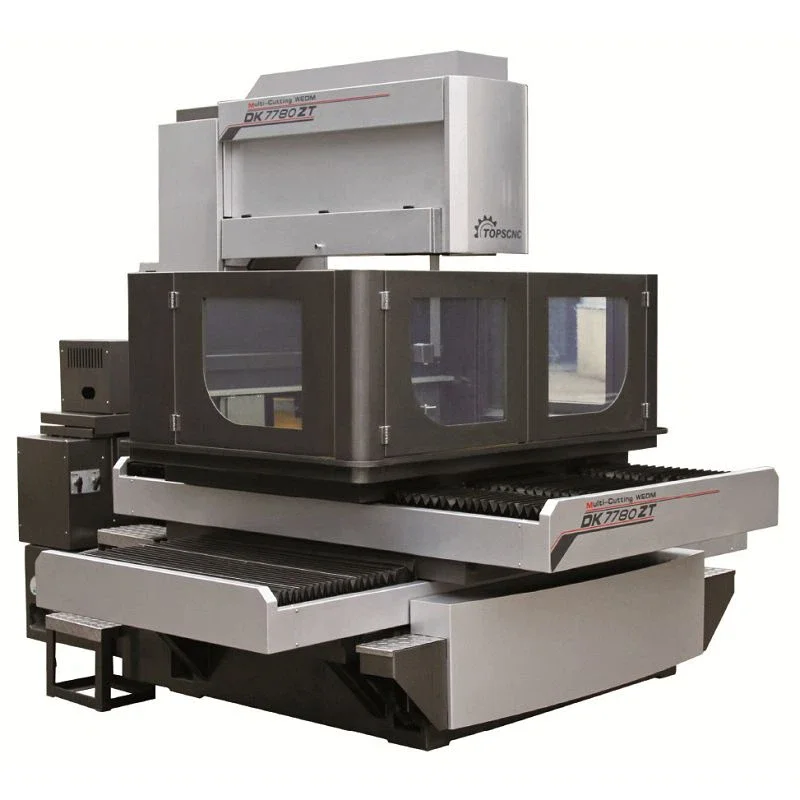

Large Stroke Wire Cut Edm
Jiangsu Dongqing CNC Machine Tool Co., Ltd. (TOPSCNC)
Model Overview & Specs
Overview
Specifications & Technical Parameters for the series: DK77100ZT | DK77120ZT | DK77150ZT | DK77200ZT. Workbench size: 1640×1140 mm | 2050×1320mm | 2050×1390mm | 2450×1390mm. X-axis and Y-axis stroke of workbench: 1200×1000mm | 1600×1200mm | 1600×1500mm | 2000×1500mm. Machine weight: 5800kg | 6200kg | 7000kg | 9000kg; overall dimensions (l × w × h): 3300×3270×3490 | 3550×3270×3490 | 4140×3980×3490 | 4700×4400×3490. This equipment is a CNC wire cut EDM series identified as Large Stroke Wire Cut EDM and by model numbers DK77100ZT, DK77120ZT, DK77150ZT and DK77200ZT. Key operational specifications include maximum linear cutting thickness: 450mm, maximum load weight: 2000kg, X-axis and Y-axis minimum instruction unit: 0.001mm, and data exchange support for CAD (DXF files). Control and operation features explicitly listed are control mode: X/Y AC servo; U/V stepper, closed-loop control with encoder feedback and software-origin control, handheld keypad control box, and software AUTOCUT/WIN7.
