Busbar Machine

Overview

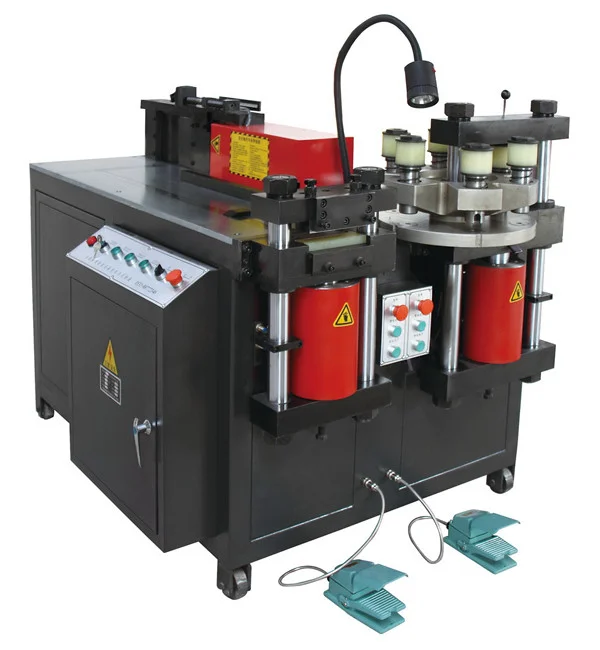

The Busbar Machine is specialized for manufacturing aluminum and copper busbars and integrates punching, bending and cutting operations; it can also perform embossing, twisting, flattening and pressing tie-in. Main features include double column cutting with a smooth cutting surface and no burr, a rotary turret punch system with 6 dies for reduced die replacement, and a double work table that provides three work positions usable at the same time. The machine is controlled by a PLC and offers bending angle digital input with record and auto-save; manual button and foot switch are optional. CNC description: Siemens PLC system, bending angle digital input, precision +-1 degree. Punching, cutting and bending can work at the same time. Model parameters by item: 303ESK — Max. force 300KN, Punching hole size 4.3-25mm, Material thickness max. 12mm, Material width max. 150mm, Vertical bending width max. 100mm, Min. bending angle 90 degree, Motor power 3 x 4KW, Outside dimension 1830x1400x1480mm, Machine weight 1420kg. 503ESK — Max. force 500KN, Punching hole size 4.3-34mm, Material thickness max. 16mm, Material width max. 200mm, Vertical bending width Max.120mm, Min. bending angle 90 degree, Motor power 3 x 5.5KW, Outside dimension 1830x1500x1480mm, Machine weight 1750kg. 803ESK — Max. force 800KN, Punching hole size 4.3-36mm, Material thickness max. 20mm, Material width max. 260mm, Vertical bending width Max.120mm, Min. bending angle 90 degree, Motor power 3 x 5.5KW, Outside dimension 1950x1650x1500mm, Machine weight 2350kg. Production applications listed for the Busbar Machine include switch cabinet and electric control panel manufacturing, high low voltage switchgear and electric transformer station equipment, electric panels and voltage transformers, appliance switches and electric elevator manufacturing, electric cabinet manufacturing, and power distribution system product manufacturing.
