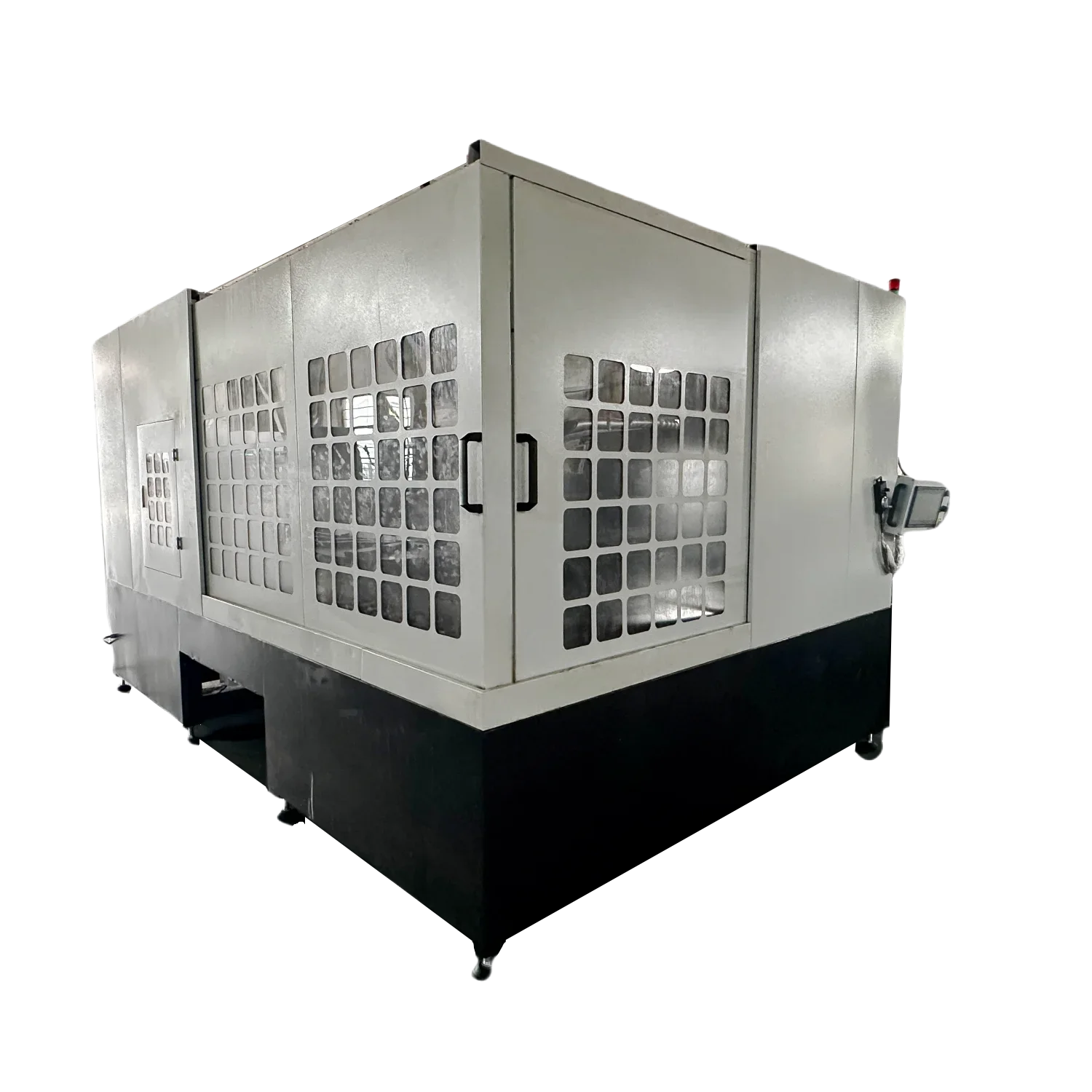

SH200-R Huge Quartz Cut

Overview

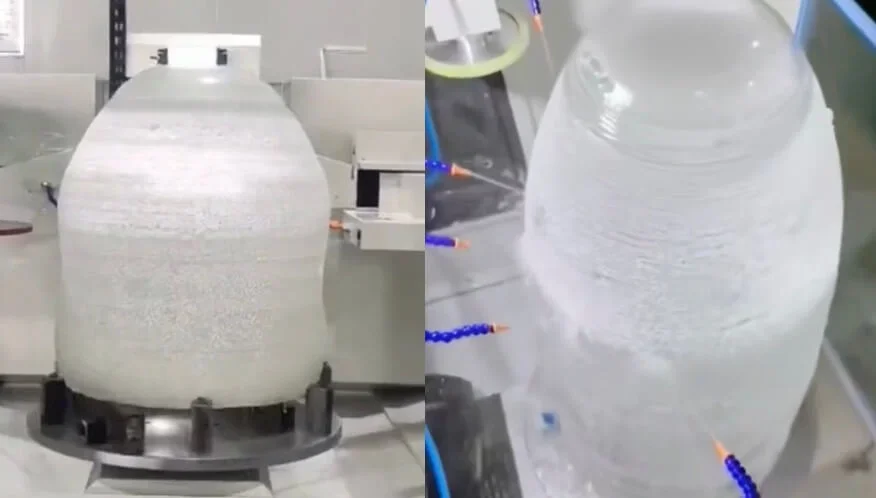

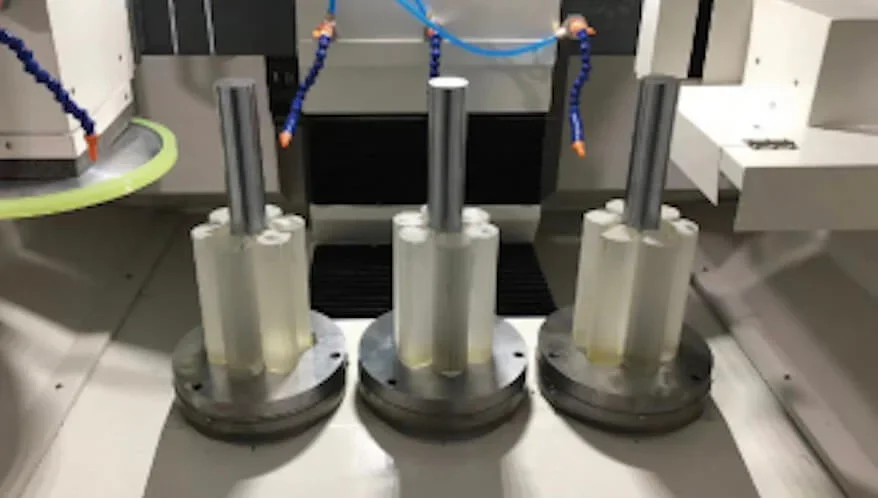

SH200-R Huge Quartz Cut is a horizontal type Quartz Glass Cutting Machine marketed as a Diamond Wire Saw for large-size ceramic and crystal cutting. The model SH200-R (also referenced as SH2000-R in product text) features an endless, closed diamond wire that moves in a single direction without reversing and a loading table customizable with 3 or 2 smaller tables. The product text states the closed diamond wire can reach up to 38 m/s, and the technical specification lists a Maximum Diamond Wire Speed (m/s) of 60 (Max). The diamond wire diameter range is specified as 0.35 to 0.8 mm and the cut kerf is approximately 0.7 mm. Technical movement and size specifications include Maximum Workpiece Dia (mm): 2000, Maximum Workpiece Height (mm): No Limit, Worktable Y-Axis Travel (mm): 1000 with R-axis it’s qual to 2000 mm, Worktable Z-Axis Travel (mm): 550, Minimum Feed Increment Y-Axis (mm): 0.01, Minimum Feed Increment Z-Axis (mm): 0.01, Repeat Positioning Accuracy Y-Axis (mm): ±0.02, and Repeat Positioning Accuracy Z-Axis (mm): ±0.02. The machine is described as heavy-duty with a built-in rotary axis that allows the loading platform to rotate rapidly in tandem with the high-velocity diamond wire. Electrical and physical specifications list Total Power Consumption (kW): 6, Power Supply (Three-phase Five-wire): AC220V 50Hz, Equipment Dimensions (Length×Width×Height) (mm): Approximately 3100*2300*2100, and Total Weight (kg): Approximately 3000. Explicitly stated application areas include Jewelry and Luxury Goods for crafting large gemstones and sapphire glass for watches and high-end electronics displays. The machine is listed for use in the Ceramic industry and named materials include Alumina (Aluminum Oxide), Silicon Carbide, Zirconia, Cordierite, Titanate Ceramics, Boron Nitride, Mullite, Sialon, Steatite and Macor. Other documented use cases are Semiconductor Industry slicing of Ceramic, Quartz and other crystal substrates, Optoelectronics shaping of synthetic sapphire and other crystals used in LED and laser technologies, and Scientific Research for precision cutting of various crystal materials. The product text also states the HorizonCrystal can be integrated into an automated production line with customized software per customer request.
