FCR - Machining Center for Generator Rotors

Overview

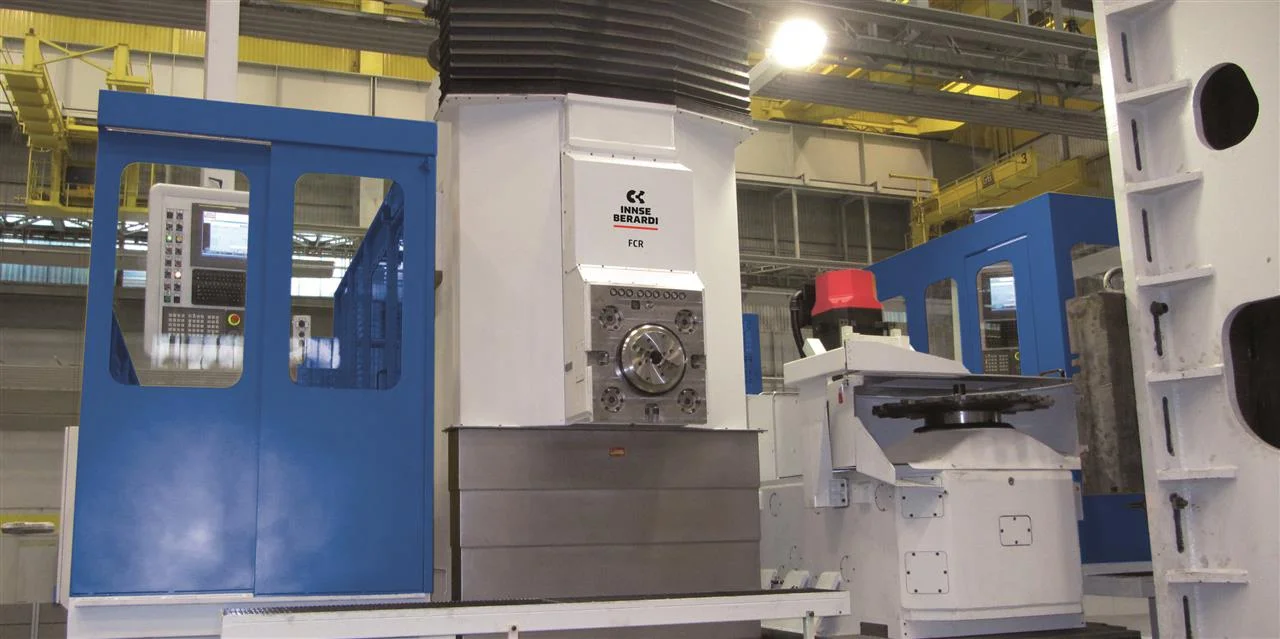

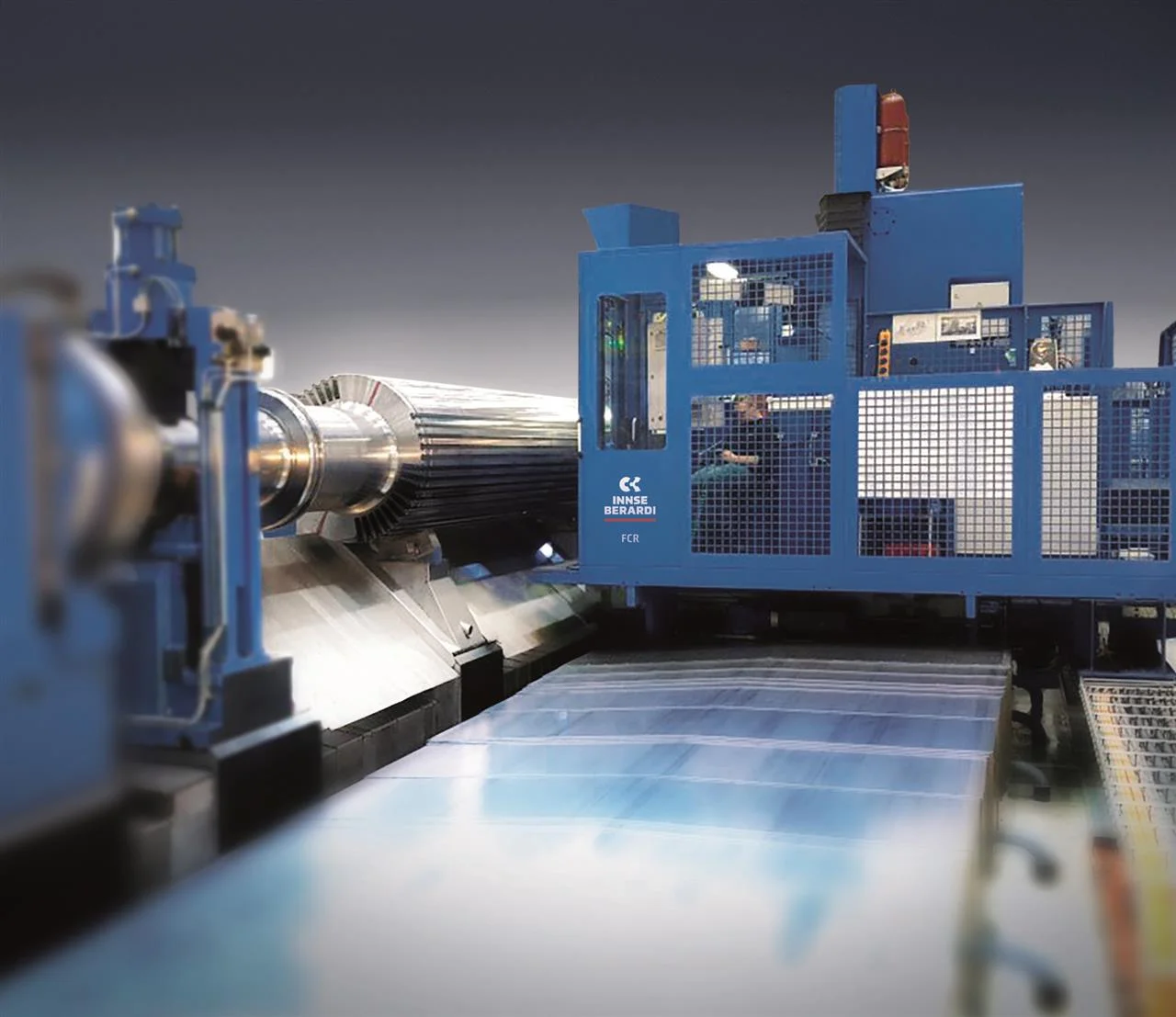

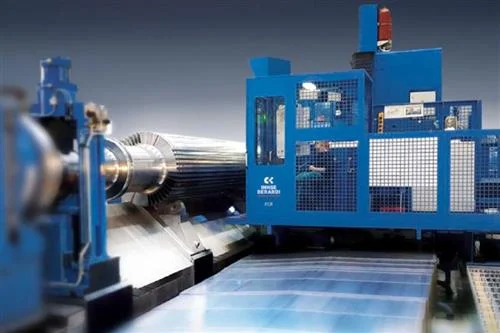

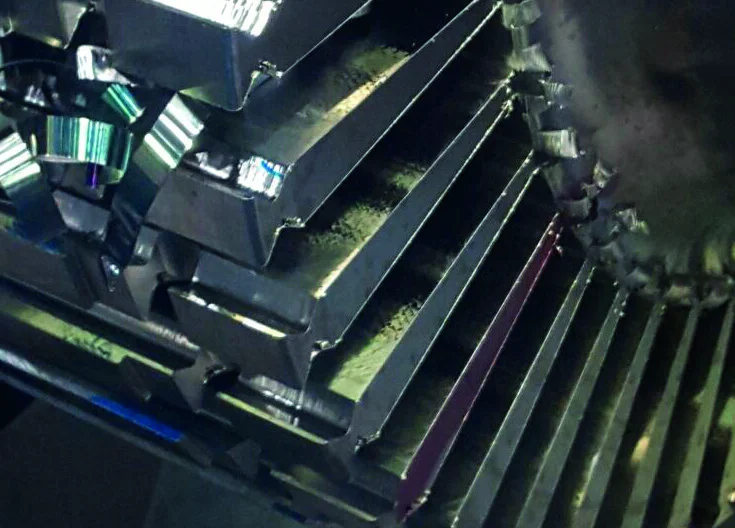

The FCR - Machining Center for Generator Rotors features hydrostatic guideways on all axes, which allows application of the high torque and high cutting forces generated during main slots milling by large diameters cutters. Technical specifications include: - Max. spindle power: kW up to 113 - Max. spindle torque: Nm up to 42,000 - Milling cutter diameter: mm 800 up to 1,200 - Max. workpiece weight: tons up to 350 - Max. workpiece length: mm up to 18,000 A high productivity slotting head with a vertical column is matched on the same carriage for auxiliary operations, and a complete range of advanced attachments is provided, making the FCR a versatile center to perform all the machining operations on both generator shaft body and necks. Performing main slots milling by large diameter cutters that generate high torque and high cutting forces. Carrying out auxiliary operations using the high productivity slotting head with vertical column mounted on the same carriage. Executing all machining operations on both generator shaft body and necks.
