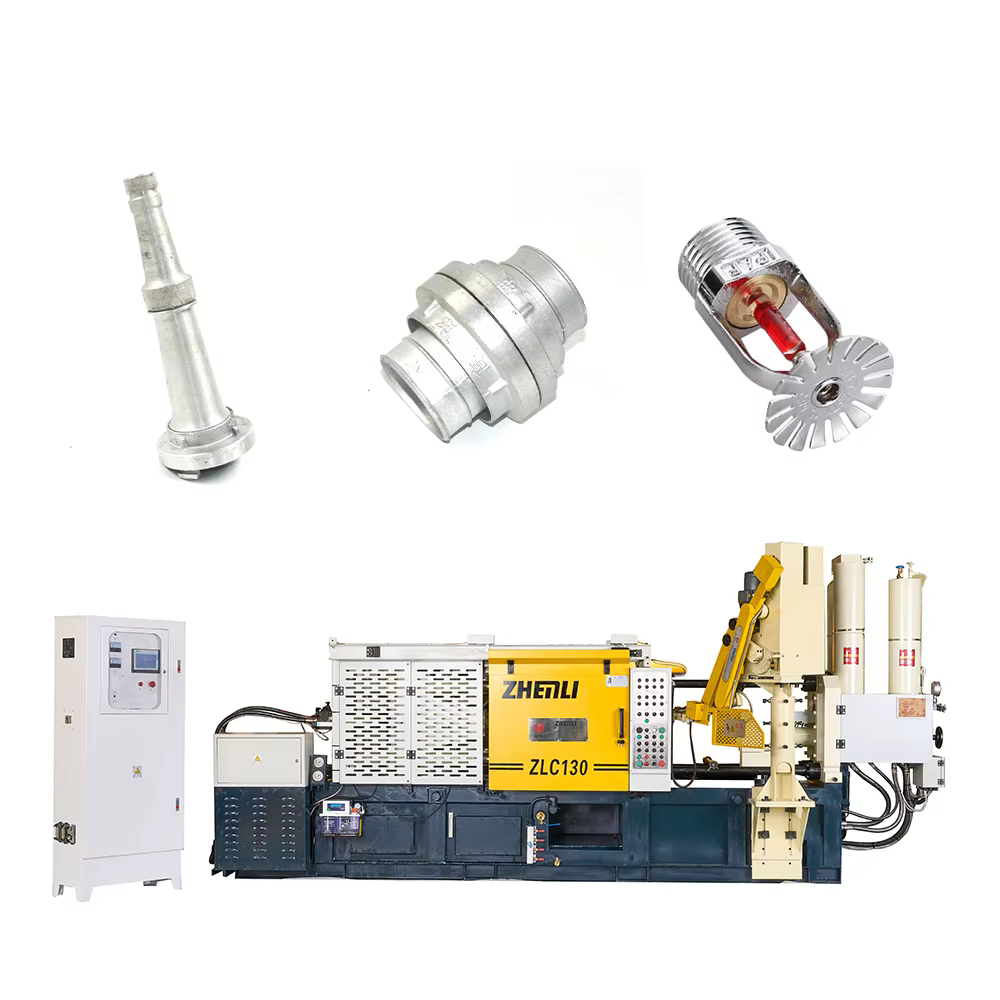

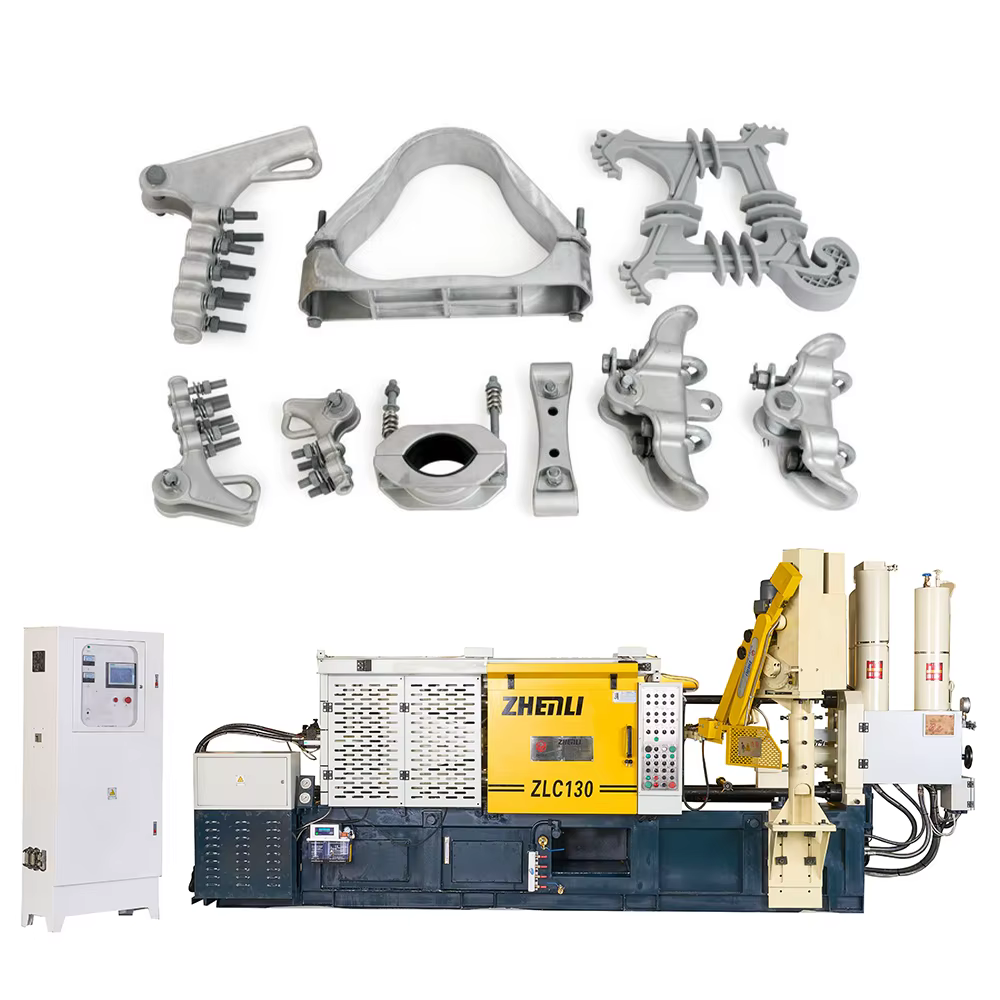

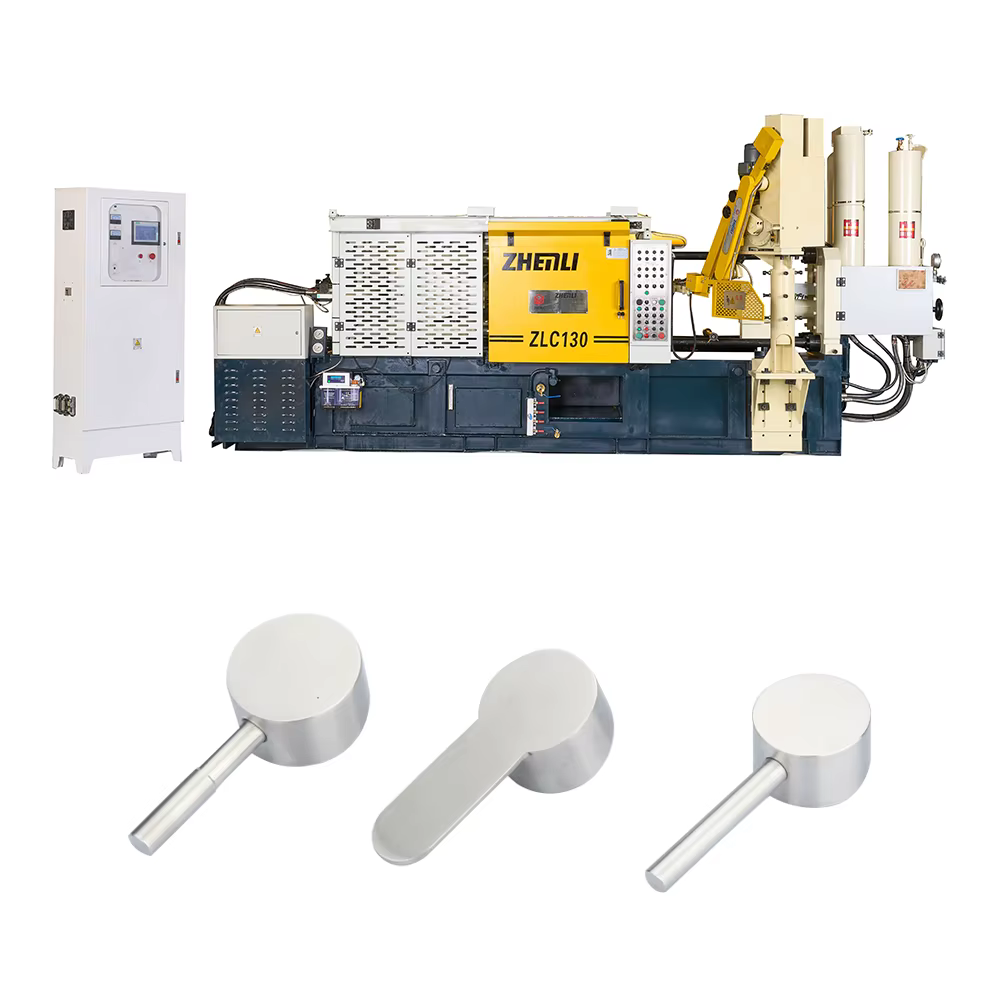

130Ton Automatic Aluminium Die Casting Machine (ZLC-130T)

Overview

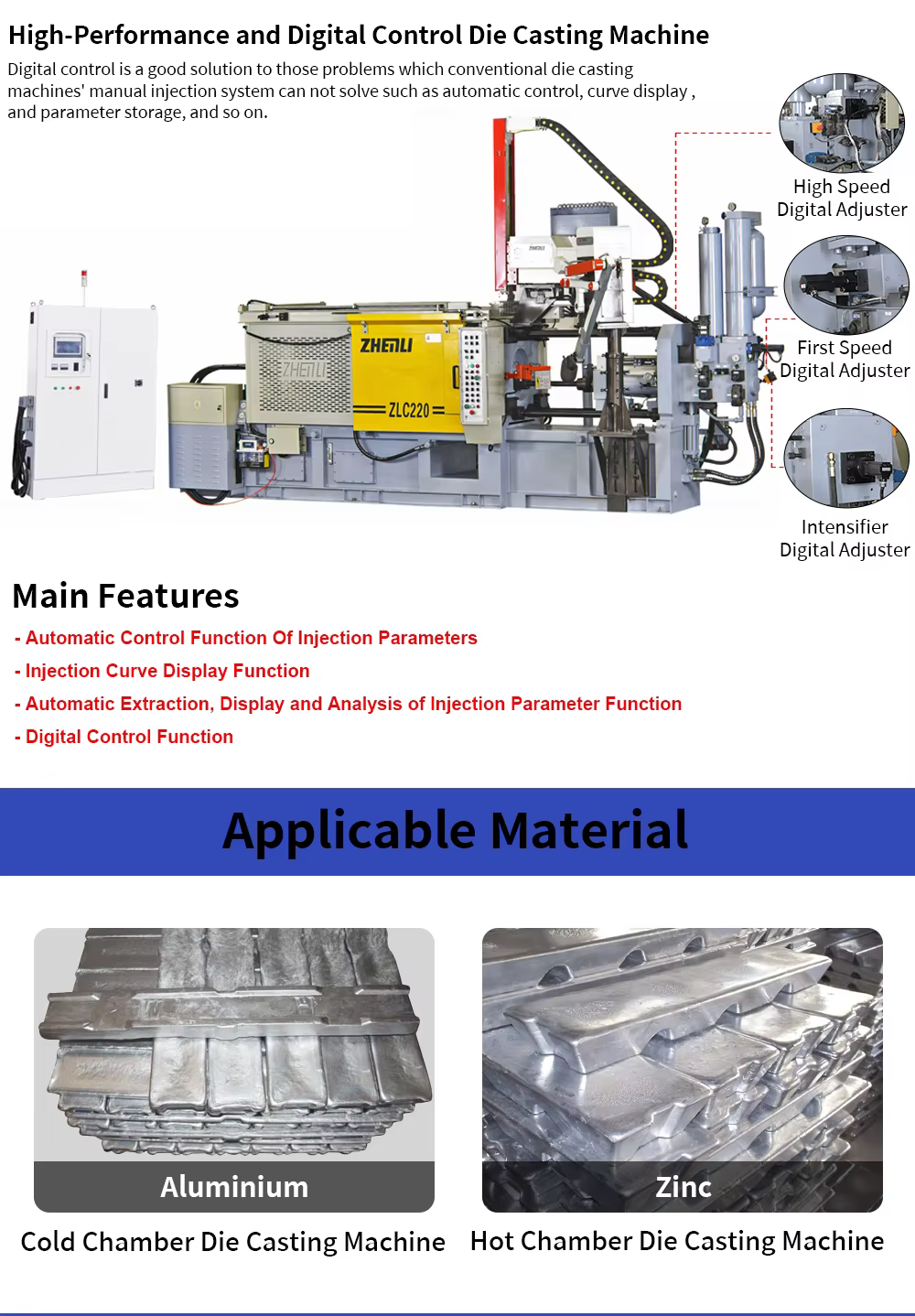

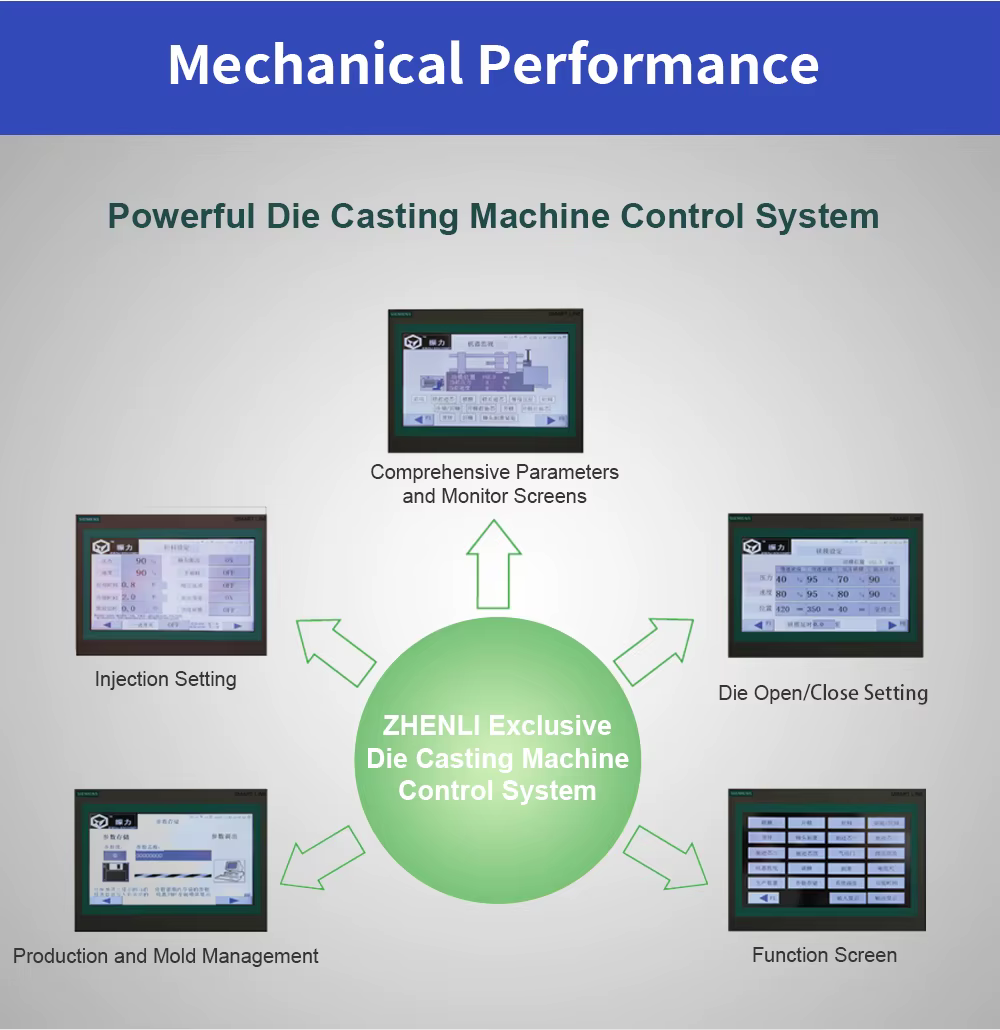

The ZLC-130T (130Ton Automatic Aluminium Die Casting Machine) provides automatic control functions for injection parameters, an injection curve display function, automatic extraction with display and analysis of injection parameters, and a digital control function. Key technical specifications: - Clamping Force: 1350 kN - Die Clamping Stroke: 350 mm - Ejection Force: 70 kN - Ejection Stroke: 75 mm - Die Height ( Min-Max): 200-500 mm - Die Platen Size(HxV): 630x630 mm - Space Between Tie Bars: 410×410 mm - Shot Position: 0, -100 mm - Shot Strock: 340 mm - Casting Force ( Intensify ): 180 kN - Plunger Diameter: 40, 50, 60 mm - Injection Weight(Aluminum): 0.7, 1.15, 1.65 kg - Casting Pressure (Intensify ): 141, 90, 62 MPa - Casting Area: 90, 140, 205 cm² - Max Casting Area(40MPa): 325 cm² - Chamber Flange Diameter: 110 mm - Height Of Pressure Chamber Flange: 10 mm - Plunger Penetration: 125 mm - Main Pump Driving Motor/Servo Motor: 11/19 kW - Hydraulic Working Pressure: 14 MPa - Oil Tank Capacity: 480 L - Machine Dimensions(LxWxH): 4100x1320x2550 mm - Referential Machine Weight For Uplifting: 6.5 T The ZLC-130T is an automatic aluminium die casting machine built to perform aluminium casting operations using automated injection parameter control and digital monitoring features. It supports injection weights for aluminum of 0.7, 1.15, and 1.65 kg and casting areas of 90, 140, and 205 cm², with a maximum casting area of 325 cm² at 40 MPa, enabling production within those specified casting and pressure ranges.
