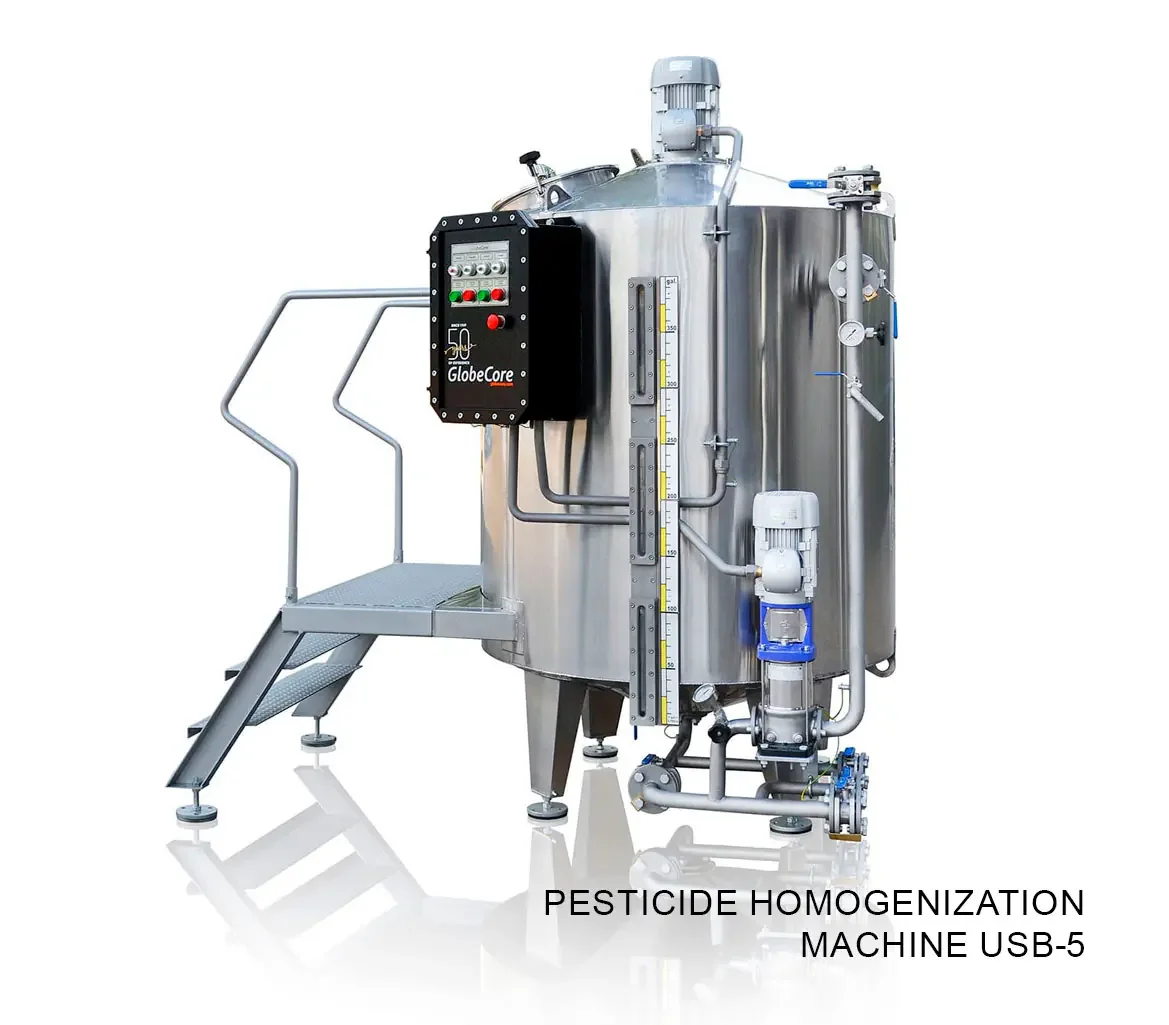

Pesticide homogenization machine USB-5

Overview

Globecore’s USB-5 pesticide homogenization machine is intended to combine and stabilize liquid and suspension pesticide formulations and achieves a high degree of homogenization, avoiding sludge development and stratification. It enables precise regulation of formulation viscosity and mixing speed and increases the uniform distribution of active components. The unit is described as small, easy to operate and simple to include into manufacturing procedures. Key specifications: - Quantity of mixed ingredients: 2–4* - Capacity, gal./cycle, not less than: 300* - Number of recommended operating cycles, cycles/hour: 2 - Total tank volume, gal.: 450 - Minimum operating volume, gal.: 200 - Maximum operating volume, gal.: 375 - Mixer rotation speed, rpm: 1,141 - Required power, kW: 5.3 - Power voltage (60 Hz, 3 phases), V: 480 - Dimensions in working position, mm (inch): length 2,200 (86.6); width 1,550 (61); height 2,300 (90.6) - Weight, kg (lb), not more than: 450 (204) - Dimensions in packaging, mm (inch): length 2,500 (98.4); width 1,650 (65); height 1,500 (59) - Weight in packaging, kg (lb), not more than: 600 (272) The USB-5 is intended to combine and stabilize liquid and suspension pesticide formulations and to distribute active components uniformly, increasing the effectiveness of crop protection agents. Through vigorous mixing it achieves homogenization that avoids sludge development and stratification and produces pesticides with a uniform structure that are more stable during use and storage. The machine is described as a flexible solution for agrochemical facilities of various sizes due to its small size and easy operation and is simple to include into manufacturing procedures.
