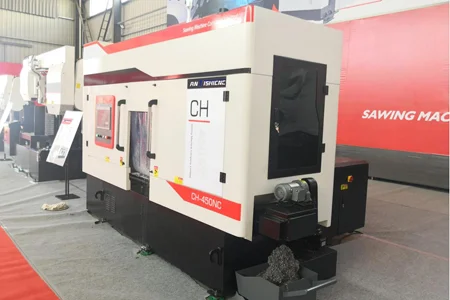

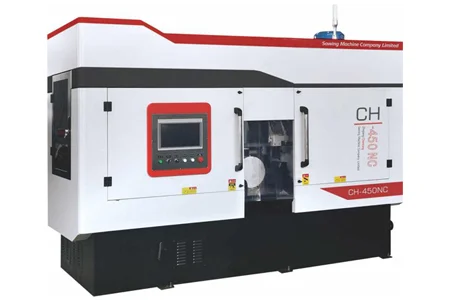

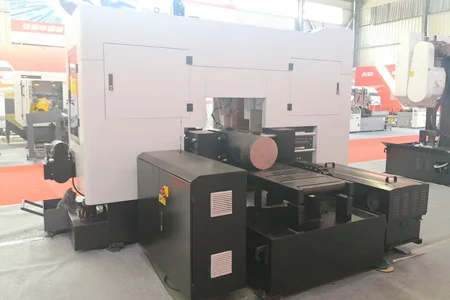

Dual-column fully automatic high-speed metal band saw CH-450NC

Overview

Model: Двухколонный полностью автоматический высокоскоростной ленточнопильный станок по металлу CH-450NC. Maximum cutting capacity: round section Ø450 mm; square section 450X450 mm. Saw blade dimension: 41×1.3×6340 mm. Cutting speed range: 30-120 m/min. Stroke of single feeding: 500 mm. Main motor: 11 kW inverter motor. Main hydraulic motor power: 2.25 kW. Main servo motor power: 1.8 kW. Coolant pump power: 120 W. An example extreme cut listed: φ300mm 45# material, cutting time 2 minutes 52 seconds. The machine is described as being used mainly for precise cutting of small and medium profiles, tubes and profiles. Its portal construction, hydraulic automatic feeding head and programmable feed length/time on a console screen are presented as features that increase cutting efficiency and accuracy for serial cutting. The manufacturer states the machine can be adapted for cutting complex-shaped billets from black metals.
