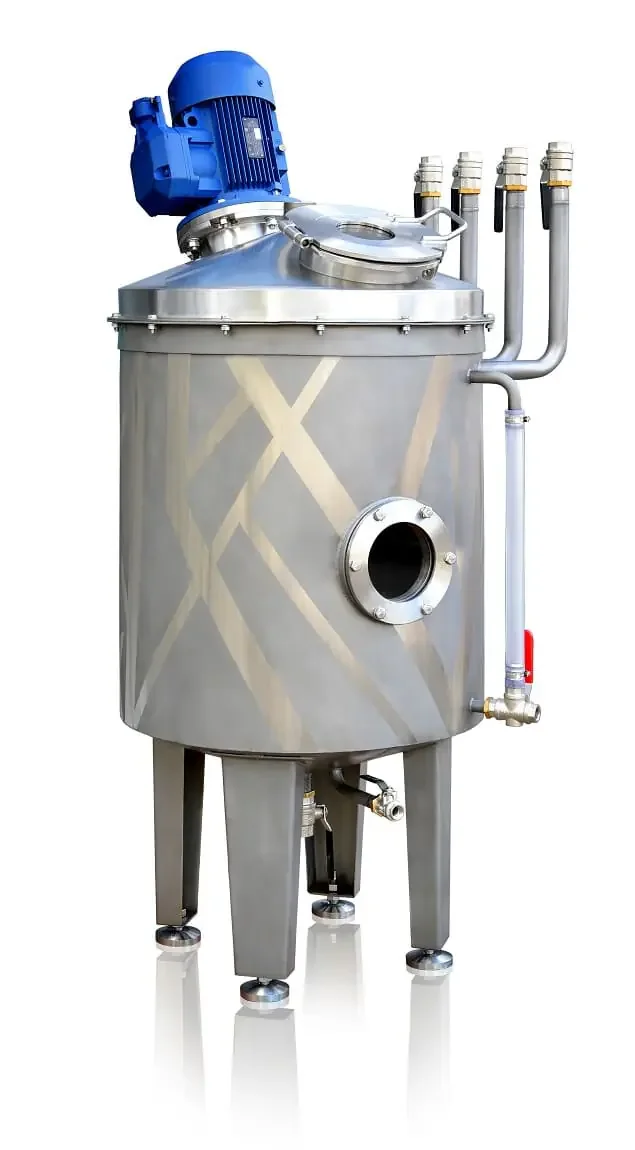

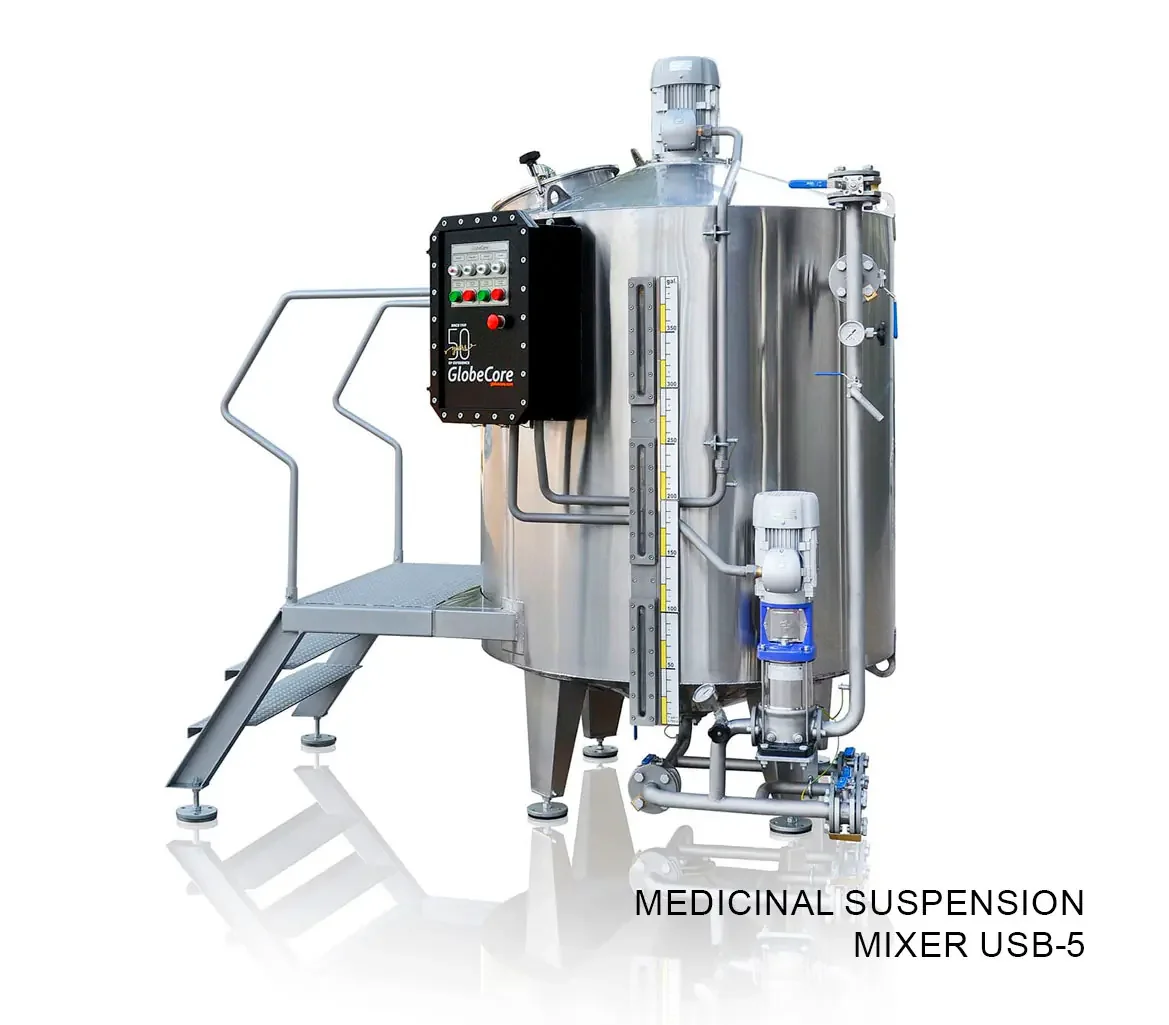

Medicinal suspension mixer USB-5

Overview

The USB-5 medicinal suspension mixer from Globecore is made to mix ingredients effectively and consistently to create homogenous suspensions for pharmaceutical applications. It ensures even distribution of liquid and solid materials to avoid lumps and sludge and attains high homogeneity important for drug suspensions. The unit is described as compact with straightforward operation, conforms with stringent safety and hygienic regulations, offers control over mixing parameters, and is simple to integrate into production lines. • Quantity of mixed ingredients: 2–4* • Capacity, gal./cycle, not less than: 300* • Number of recommended operating cycles, cycles/hour: 2 • Total tank volume, gal.: 450 • Minimum operating volume, gal.: 200 • Maximum operating volume, gal.: 375 • Mixer rotation speed, rpm: 1,141 • Required power, kW: 5.3 • Power voltage (60 Hz, 3 phases), V: 480 • Dimensions in working position, mm (inch) — length: 2,200 (86.6); width: 1,550 (61); height: 2,300 (90.6) • Weight, kg (lb), not more than: 450 (204) • Dimensions in packaging, mm (inch) — length: 2,500 (98.4); width: 1,650 (65); height: 1,500 (59) • Weight in packaging, kg (lb), not more than: 600 (272) Designed for pharmaceutical production of drug suspensions where accurate mixing and high homogeneity affect medication safety and effectiveness. It is intended to mix ingredients evenly to prevent lumps and sludge and to produce stable suspensions. The USB-5 is suitable for plants of any size due to its compact size and straightforward operation, and it offers control over mixing parameters and simple integration into production lines. It is specified to mix 2–4 ingredients per cycle with capacity not less than 300 gal./cycle and a recommended operating rate of 2 cycles/hour.
