ATLANTIS Washing

Overview

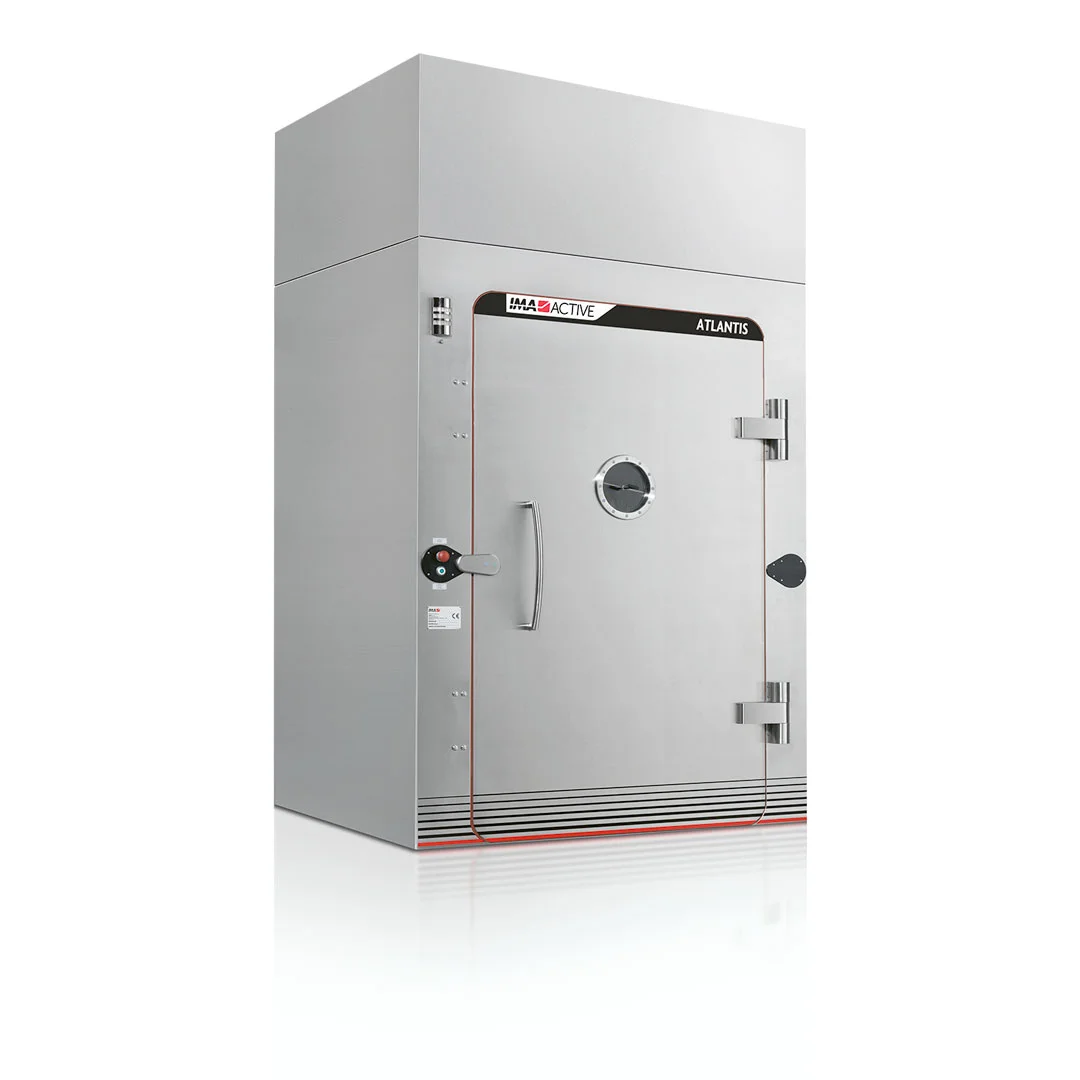

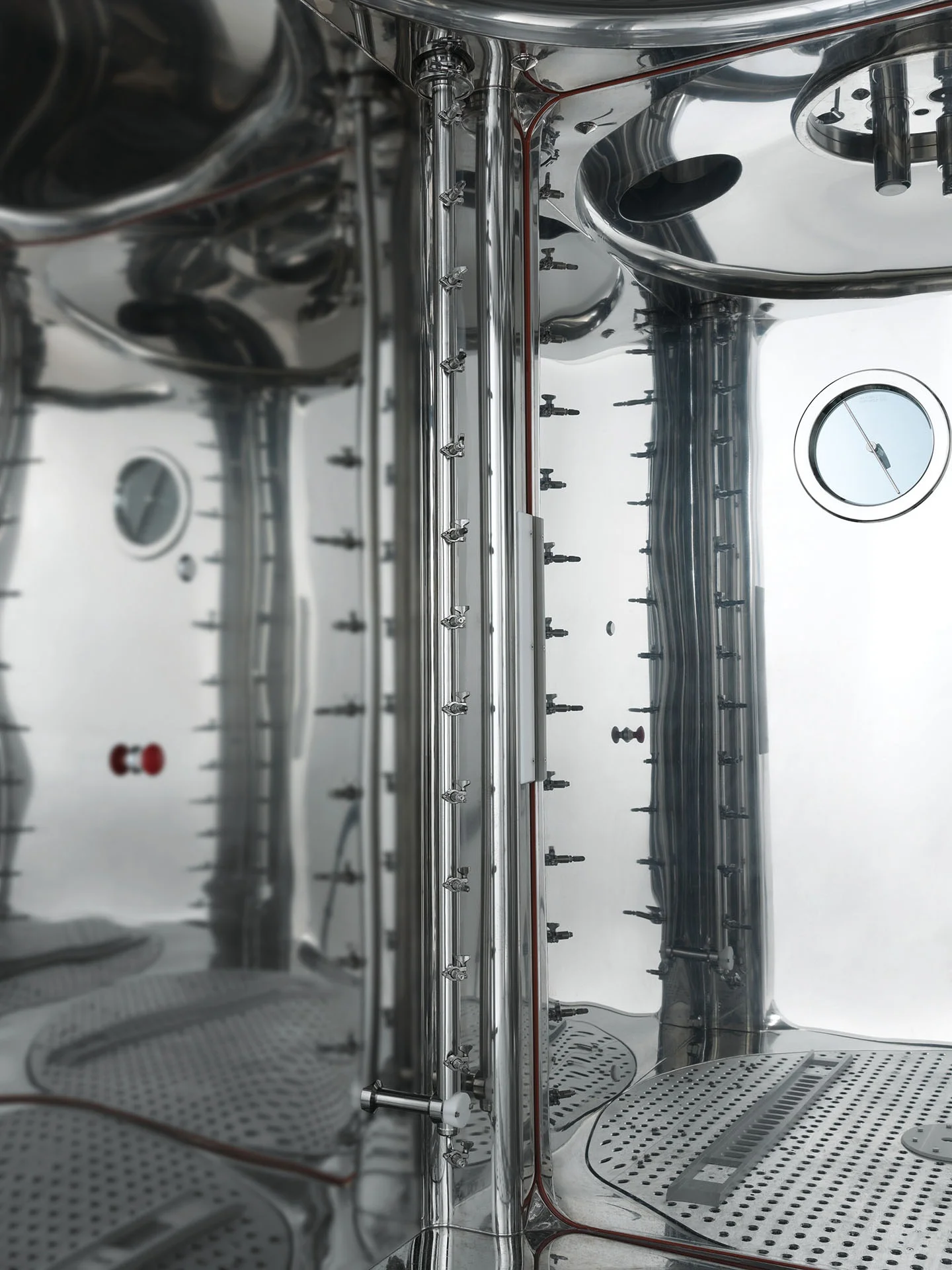

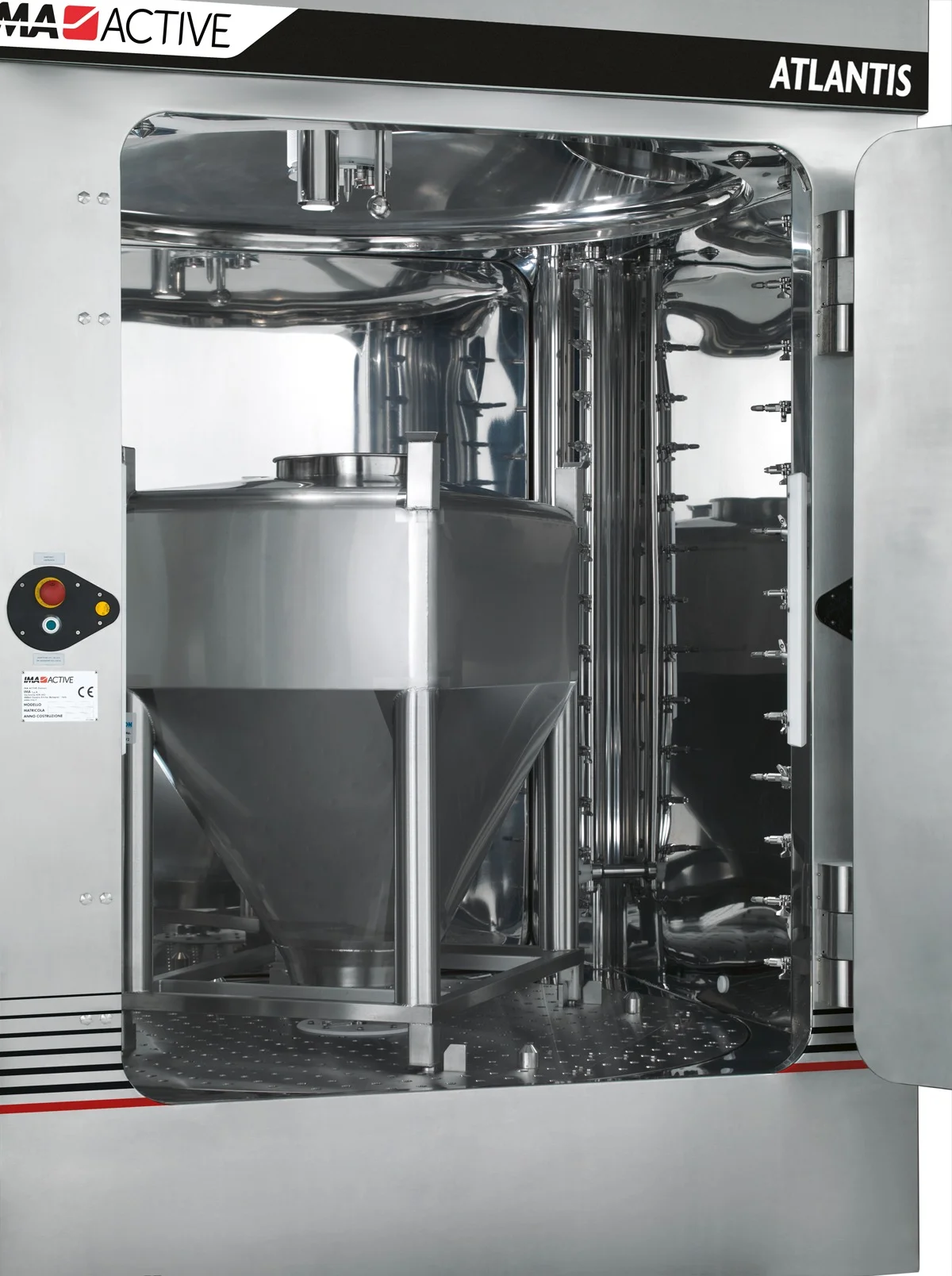

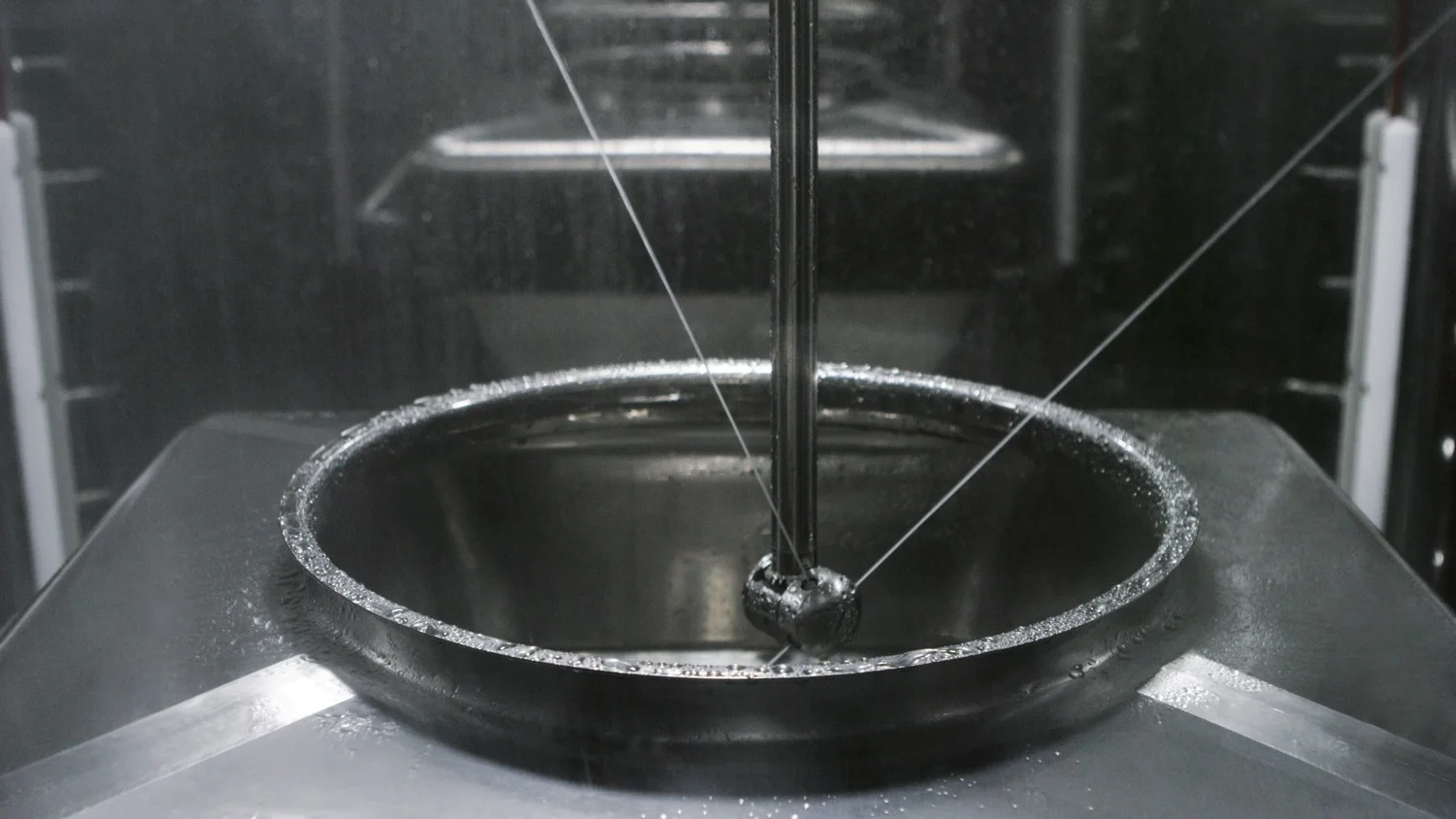

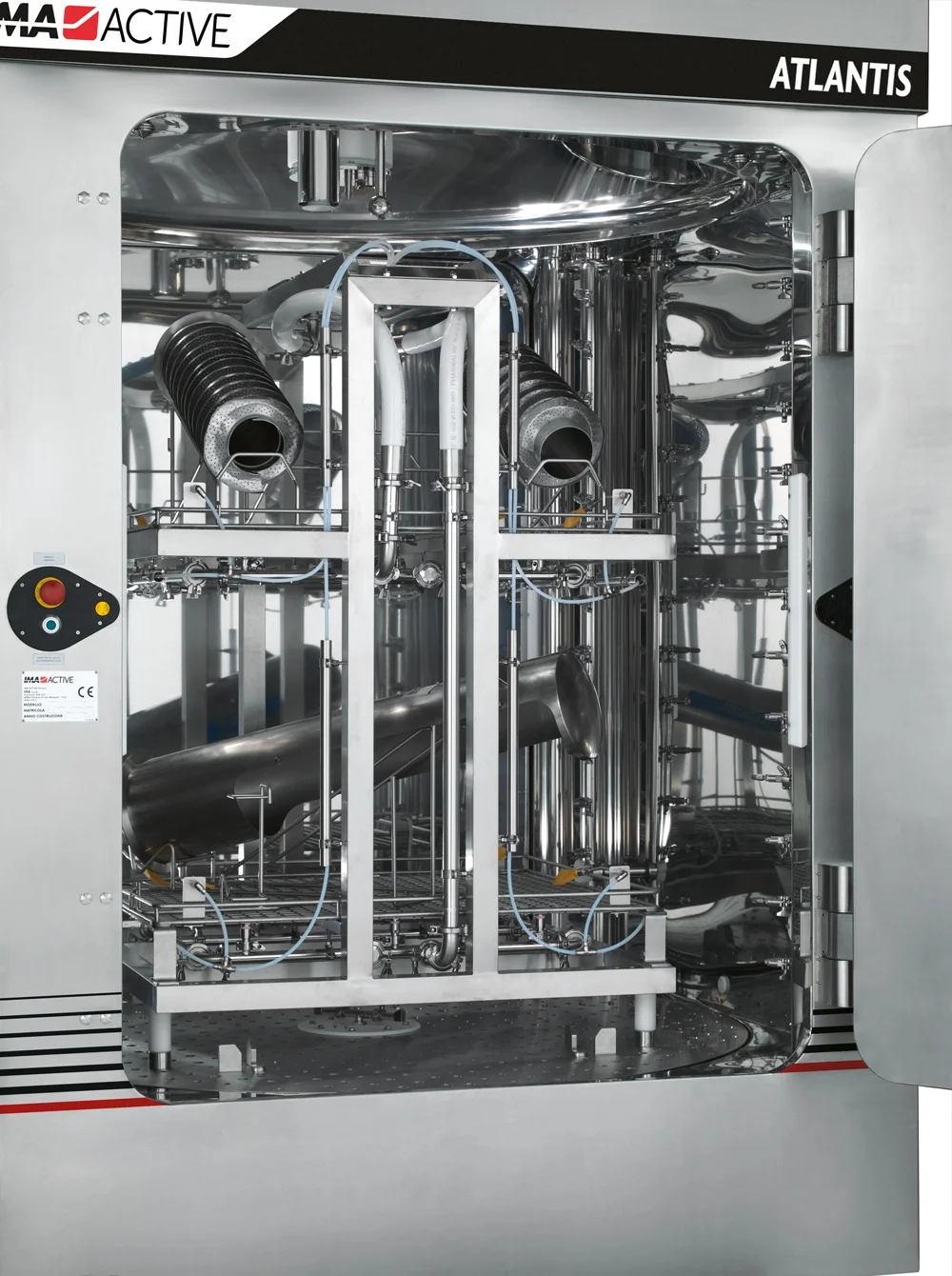

ATLANTIS Washing is a highly efficient component washer available in three models, designed to wash and dry containers, IBCs and other components used within the pharmaceutical industry. The machine operates in completely automatic mode and is produced at IMA Active. Designed for through-the-wall installation, the machine can be supplied in a high-efficiency configuration increasing machine throughput by up to 3 IBCs/hour; it can be installed flush to the floor or raised on feet and offers an optional second door for pass-through configuration to separate clean and non-clean areas. Nozzle configuration includes vertical ramps of nozzles for high-efficiency washing of the external part of IBCs and a spray nozzle with an electric motorized rotating head for internal washing; a telescopic utility plate, connected to the rack, conveys water and compressed air to dedicated nozzles. The machine can be fitted with automatic loading and unloading systems that feature an automatic sliding door and a chain conveyor positioned in front of the cabin to transfer IBCs directly into and out of the washing station. Versions: SINGLE PUMP | DOUBLE PUMP. Water flow (litres/min) [SINGLE PUMP]: 50. Water flow (litres/min) [DOUBLE PUMP]: 50 (pump in series) or 100 (pump in parallel). Inlet pressure (bar): 1÷3. Working pressure (bar) [SINGLE PUMP]: 10. Working pressure (bar) [DOUBLE PUMP]: 20 (pump in series) or 10 (pump in parallel). Maximum temperature (°C): 85. Machine weight (kg): 2,500. A (mm): 2,000 | 2,500 | 2,800. B (mm): 3,465 | 3,965 | 4,265. ATLANTIS Washing is used to wash and dry containers, IBCs and other components used within the pharmaceutical industry. With suitable racks, it can be used for the washing of pharma pallets, drums, components and machine parts. When supplied in the high-efficiency configuration, the machine can increase throughput by up to 3 IBCs/hour. When fitted with automatic loading and unloading systems, the machine features an automatic sliding door and a chain conveyor to ensure smooth transfer of IBCs directly into and out of the washing station.
