2-Stage Electric Driven Reciprocating Air Compressor 10-15 hp

Overview

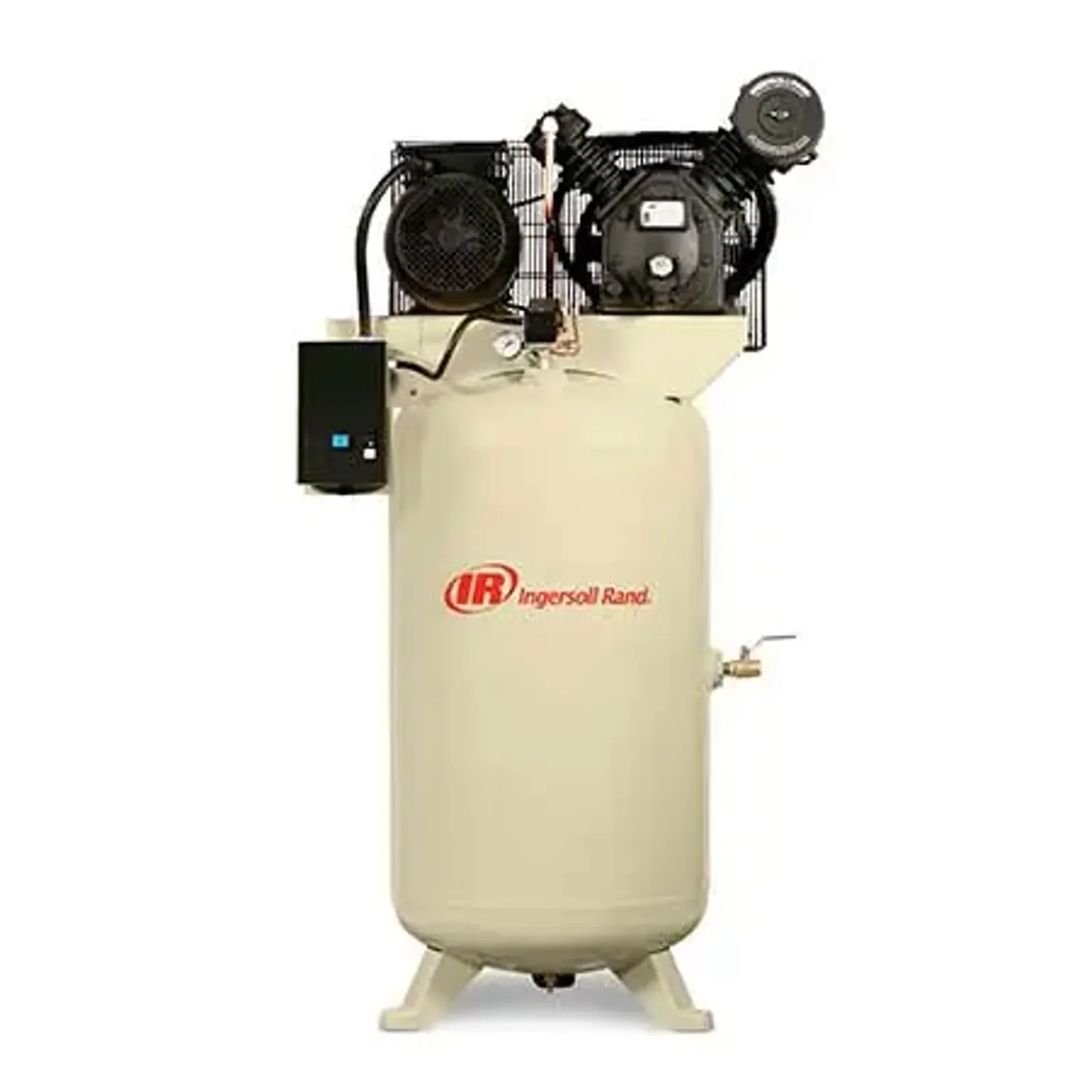

The 2-Stage Electric Driven Reciprocating Air Compressor 10-15 hp (models 7100E10 | 7100E15) is an electric-driven, two-stage reciprocating compressor available in nominal power ratings of 10 hp | 15 hp and rated for 100% continuous duty. The units deliver a maximum operating pressure of 175 psig and have CFM @ 90 psi of 38 | 51 with flow at max pressure of 37 | 50 cfm. Construction and service features include durable cast iron construction with extended pump life designed for over 15,000 hours, individually cast cylinders, an overhung crankshaft, and a one piece connecting rod to simplify maintenance. The compressors use All Season Select synthetic lubricant with 2,000 hours of service between changeouts and a stated performance of four times longer than petroleum-based lubricants. Dimensional and connection details: Base Length (in): 72 | 72; Base Width (in): 24 | 24; Base Height (in): 56 | 56; NPT Outlet (in): 1 | 0.75. Electrical and tank specifications: Voltage: 200, 230, 460, 575/3/60 | 200, 230, 460, 575/3/60; Tank (gal): 80 Gallon Horizontal | 80 Gallon Horizontal; Weight (lbs): 1035 | 1105. Available package options for the 15 hp model are Value, Value Plus, and Premium. The compressor series is described as designed for heavy shop or industrial use and is presented as suitable for automotive service and body shops, fleet maintenance, machine shops, production and manufacturing lines, wood working shops, dry cleaners, car washes, general maintenance/repair shops and farms. The 15 hp model offers selectable feature packages (Value, Value Plus, Premium) to match differing service and accessory needs.
