AB 30/R-1400

Overview

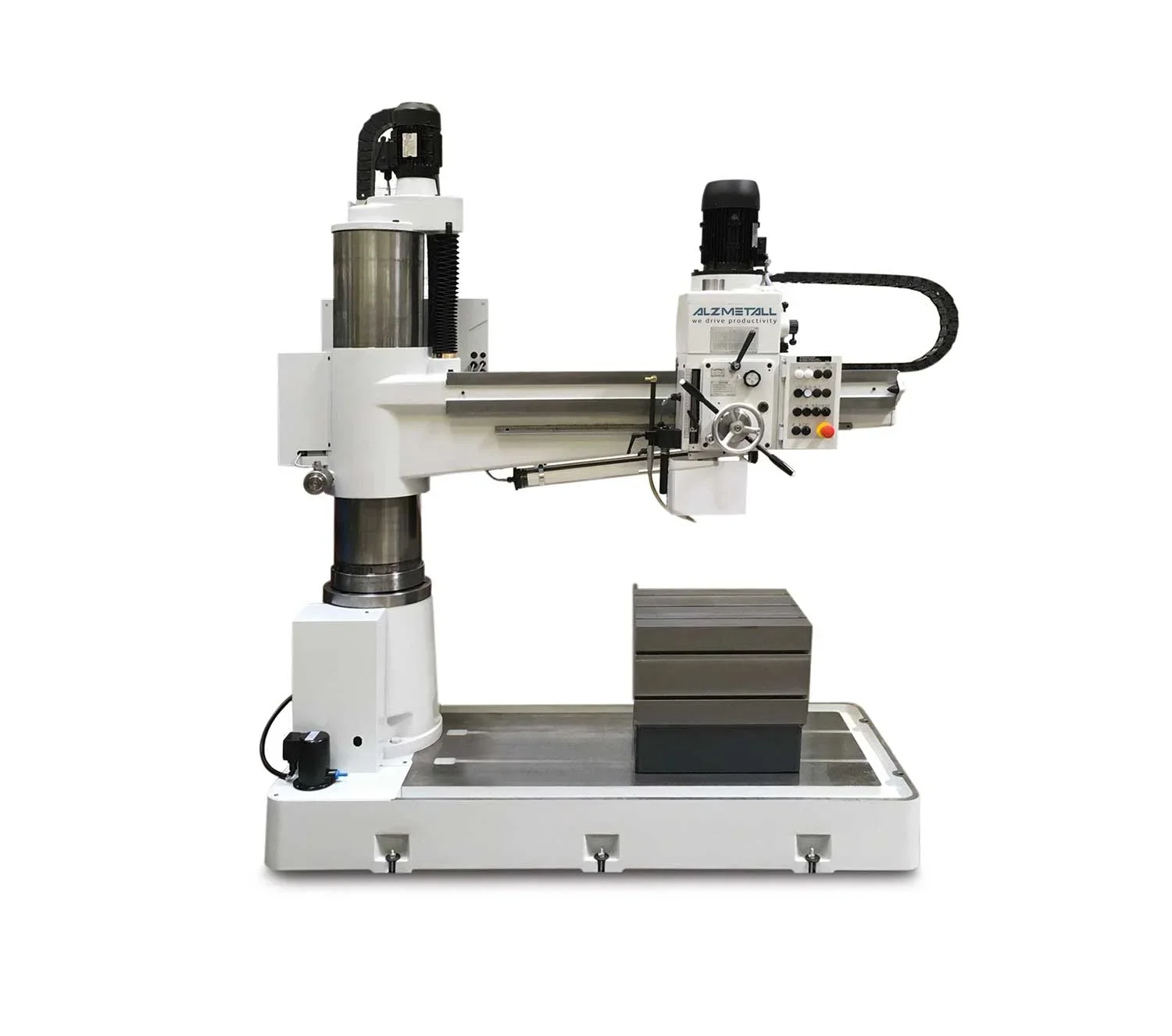

Model AB 30/R-1400 (variant AB 30/R-1000 noted) is a Classic Radial Drilling Machine described as radial and specified for large and heavy parts. Drilling capacity in steel E335 (St 60) is 45, 50 mm; tapping performance in steel E335 (St 60) is M 30; the short spindle is MT 4 and Z-travel of the spindle is 160 mm. Spindle RPM options include Option 1: 40-65-80-112-160-224, 315-450-630-900-125-1800 or 28-40-56-80-112-160-224-315-450-630-900-1250 or 56-80-112-160-224-315-450-630-900-1250-1800-2500; Option 2 permits only 56 – 2.500 U/MIN-1. Drive data lists Motor 1 [MIN-1]: 1500 with Power [KW]: 1,5 and Motor 2 [MIN-1]: 1500 with Power 2 [U/MIN-1]: 3,0; touchscreen is No and feed is automatic. Standard equipment includes an electromagnetic feed clutch, contactor control for clockwise spindle rotation, control transformer (VDE 0113), main switch, base plate with T-slots, self-locking mushroom button, spindle protection, protection class IP 54, lacquer and machine oil. Available options include anchor and levelling elements (6 elements), protected tube light incl. lamp, tapping auto-reverse w/o foot switch, Coolant Attacment A, electrically controlled free-cutting system, outboard support, precision depth adjuster and fixed stop, portable boxed clamping table, spindle travel 200 mm, central clamping system, special Lacquer and special voltages. Described as radial and stated to be for large and heavy parts, the AB 30/R-1400 is intended for radial drilling operations on large and heavy workpieces.
