A452-F Series

Overview

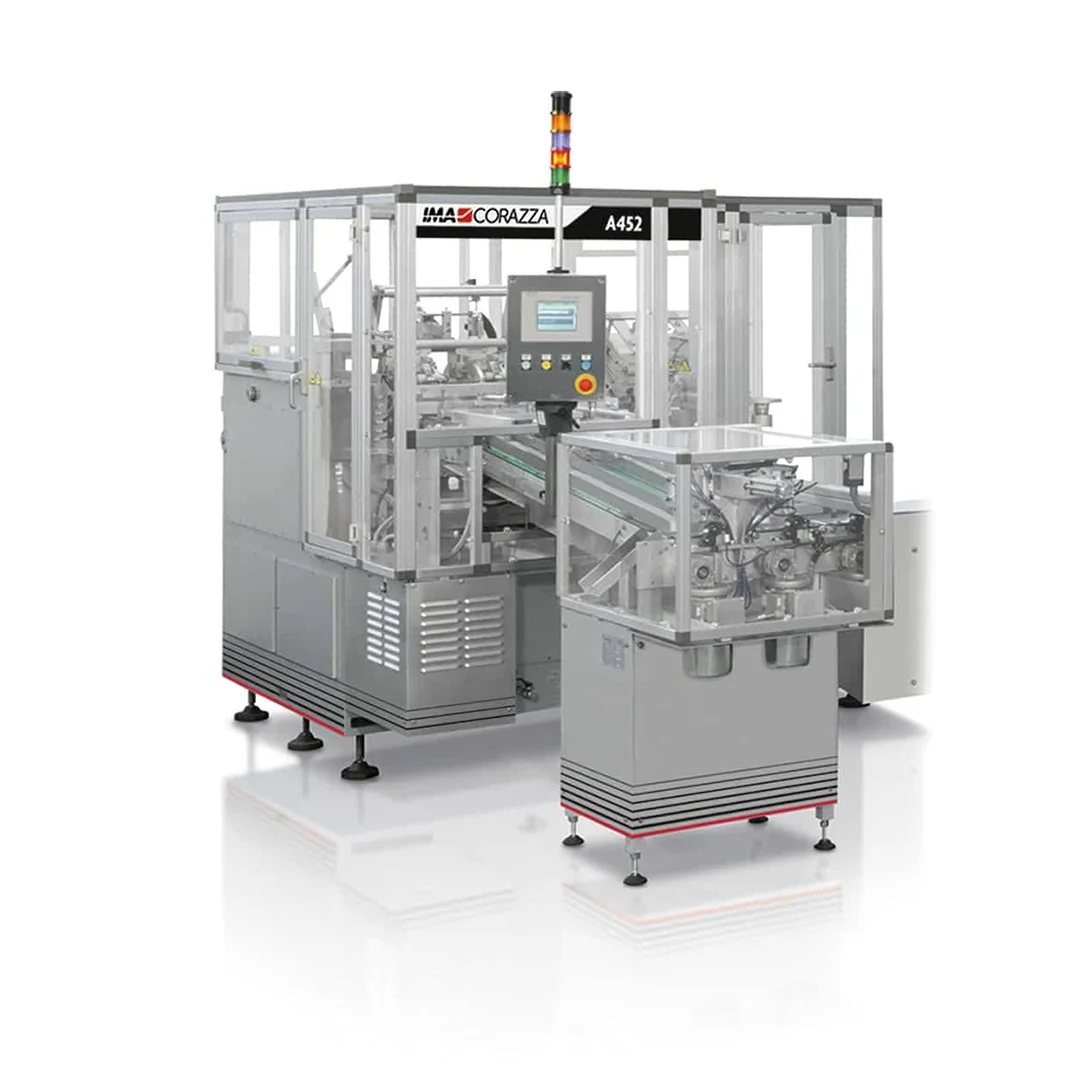

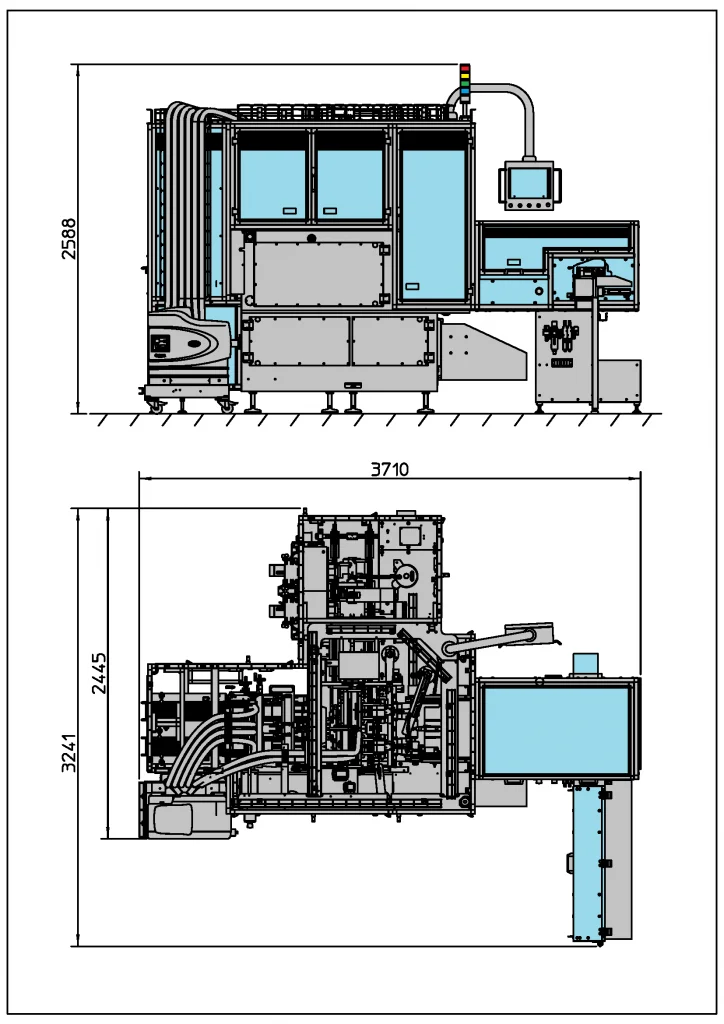

The A452-F Series (A452F) is designed for the cartoning of square and rectangular portions of processed, fresh or cream cheese. The cartoner can be supplied with various types of infeed sections according to customer requirements and uses flat blank cartons which are formed around the product during the loading operation. Highlights include quick format changeover that converts simply to different product sizes. The machine can be converted into a single-head version to handle up to 1 kg cartons. It uses a cost-saving wrap-around system to shape cartons from open flat blanks. Damage-proof product handling is achieved by pre-forming cartons into an open U-shape in a vertical indexing turret. Technical information: - Production capacity: Up to 80 boxes/min - Full load current: 3P x 400 Volt – 50Hz – 8 Amp - Compressed air consumption: 350 Nl/min (Min. op. pressure 6 bar) - Weight: 3,700 kg Approx. - Box dimensions A (min ÷ max): 59 ÷ 150 - Box dimensions B (min ÷ max): 56 ÷ 75 - Box dimensions C (min ÷ max): 22 ÷ 62 Production plant: IMA Corazza The A452-F Series is used for cartoning square and rectangular portions of processed, fresh or cream cheese. It can be supplied with various types of infeed sections depending on the product to be handled and on the requested pack configuration. The machine can be converted to a single-head version to handle larger cartons up to 1 kg and performs wrap-around forming from flat blanks with cartons pre-formed into an open U-shape for damage-proof handling.
