H-FRAME HYDRAULIC PRESS KP 100 A

Overview

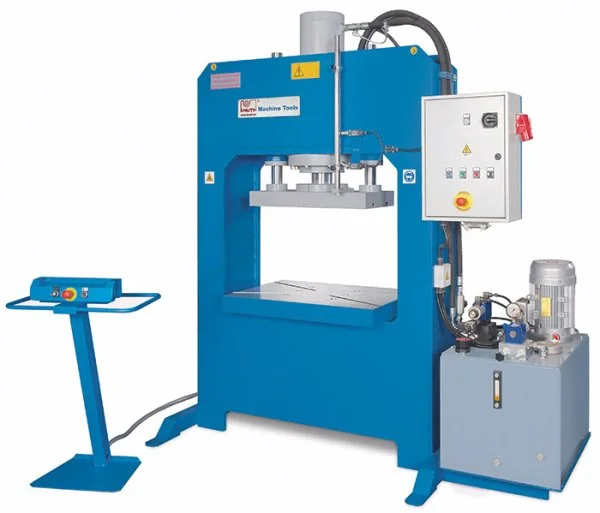

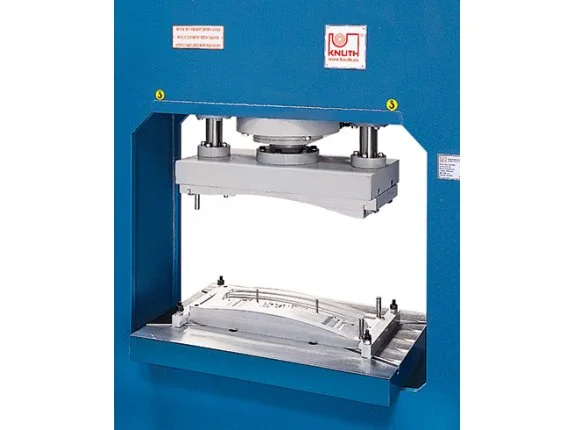

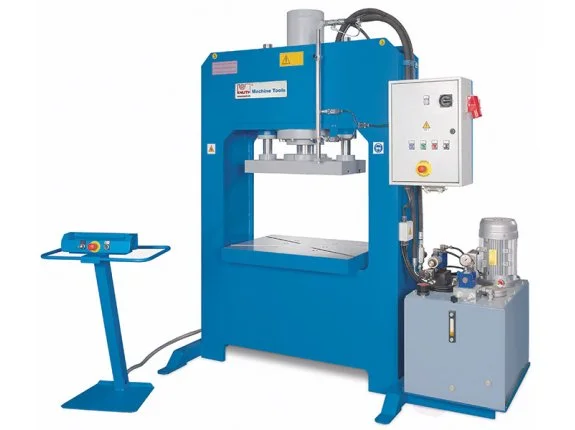

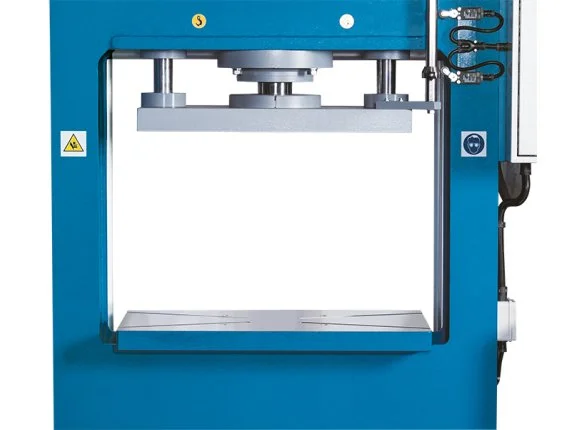

H-FRAME HYDRAULIC PRESS KP 100 A (SKU : 131502) is part of the KP-A series of hydraulic presses with portal frames built completely in Europe using high-quality components. Pressure force is 110 t. Table dimensions are 35 in x 24 in, stroke is 19.7 in, ram-plate size is 28 in x 14 in, throat width is 41 in, stroke speed is 0.16 in/s and rapid feed is 1 in/s. Motor rating is 5.4 Hp, overall dimensions are 82 in x 42 in x 89 in and weight is 5060 lbs. The machine features large ram plates and a work table with T-slots for tool clamping, a large hydraulic cylinder stabilized by heavy-duty self-lubricating circular guides, a stand-alone hydraulic system, a mobile control panel, adjustable limit switches to define travel distance, and a 2-step hydraulic pump for fast rapid feeds and optimum stroke speeds. Precision-machined cylinder surfaces, high-quality seals, and a perfectly welded frame steel construction are specified, and the construction meets European safety guidelines. The KP 100 A is specified for deep drawing, forming, and notching processes. It is intended for test and series production and is described as suitable for multi-shift operation. The product information states that Industry 4.0 integration is possible and that customised solutions are available on request.
