AB 50/SV

Overview

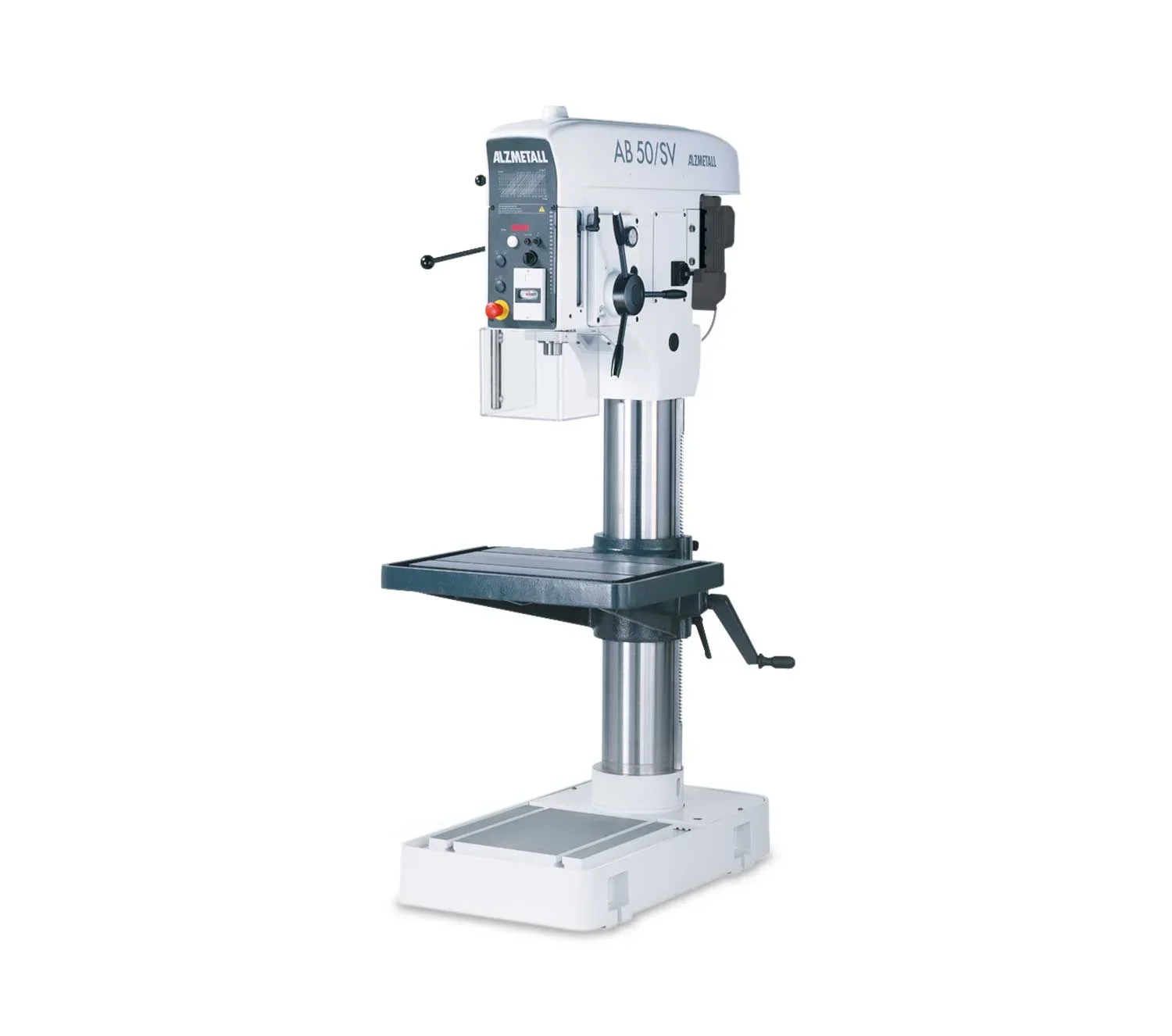

AB 50/SV is a Column Drilling Machine described as "for high performance drilling." Standard equipment includes an electro-magnetic feed clutch, main switch lockable, overload protection switch, protective control for clockwise rotation, a self-locking mushroom button for Emergency-Off, an infinitely variable speed drive (mechanical variator), a digital RPM read-out, protection class IP 54, a connection terminal in the electrics cabinet without cable, and spindle protection electrically secured. Drilling and mechanical dimensions: Drilling Capacity Steel E335 (St 60) 60 mm, Tapping performance steel E335 (St 60) M 42, Z-travel of spindle 200 mm, Distance spindle to column 350 mm, Column diameter 200 mm, Distance spindle - table min./max. 159 / 884 mm, Table clamping area 720 x 510 mm, and a Machine Bade Plate with T-slots, clamping area 380 x 450 mm (width x depth). Drive and motor data: Motor 1 1500 / 3000 [MIN-1], Motor 2 1500-3000 [MIN-1], Spindle Rpm range Option 1 60 – 1.530 [U/MIN-1], Spindle Rpm range Option 2 50 – 1.280 [U/MIN-1], Power 3,6 / 4,3 [KW], Power 2 3,6 / 4,3 [U/MIN-1]. Additional listed items include Touchscreen: Yes, Feed: automatic, Motor Isolation Class "F" (155'), lacquer DD-structured signal white RAL 9003, PANTONE 7545c, black, and machine oil. The AB 50/SV is specified for high performance drilling as a Column Drilling Machine. It also provides tapping capability up to M 42 in steel E335 (St 60). The machine supports automatic feed and includes a touchscreen for operator interaction.
