RAYTECH USAWR50-13R 50A – 3-Channel

WR50-13R 50A – 3-Channel

RAYTECH USA

Categories:
Automated Test Equipment

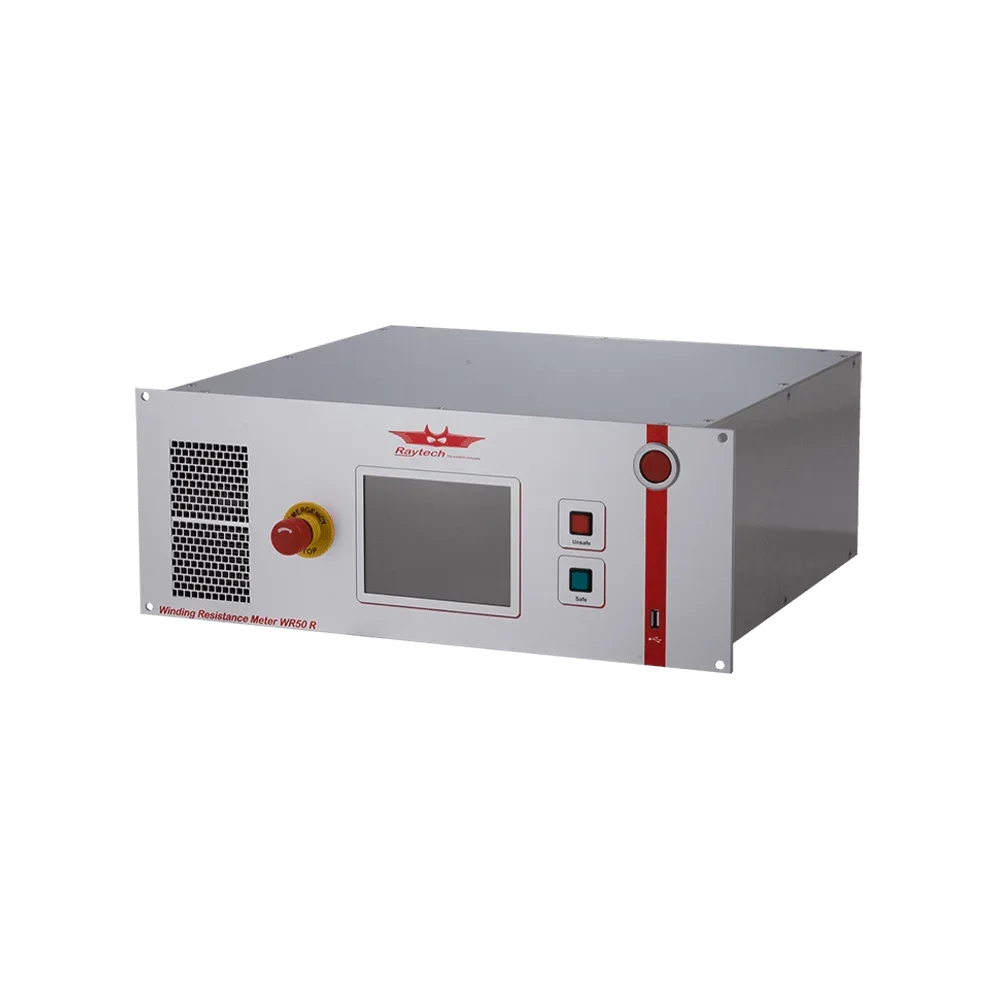

Equipment view 1Equipment view 2

Model Overview

WR50-13R is a 50 Amp, 3 Channel winding resistance meter built into a 19" rack housing and is the rack-mounted version of the WR50-13. The instrument includes an advanced demagnetizing circuit and the fastest discharge on the market and is designed for a high degree of accuracy for the measurement o...

Technical Specifications

SizeL: 490 mm (19.3″) W: 436 mm (17.2″) H: 177 mm (7″), Rack Unit: 4U
Weight13.8 kg (29.7 lbs.)
DisplayColor LCD with a backlight and a touch screen
DownloadsFirmware WR Version 3.7.4.0: https://www.raytechusa.com/wp-content/uploads/Raytech.Firmware.WR5012.Update.3.7.4.0.zip WR50-12R Command Set Version: 3.02: https://www.raytechusa.com/wp-content/uploads/90104-3.02-Command-Set-WR-xx.pdf WR50-12R Instruction Manual Version: 3.03: https://www.raytechusa.com/wp-content/uploads/RaytechUSA-Manual-WRXX-Field-Unit-v3.03-1.pdf T-Base PRO Version: 2.4.2: https://www.raytechusa.com/wp-content/uploads/firmware/tbasepro_4.2.4.zip T-Base LITE Version: 1.4.3: https://www.raytechusa.com/wp-content/uploads/firmware/tbaselite_1.4.3.zip Flyer WR50-12R: https://www.raytechusa.com/wp-content/uploads/WR50-12_DataSheet_F.pdf
Interface4 USB 2.0 (3 host, 1 device) and 9 Pin RS-232 serial

Similar models

AMH-200K 1

AMH-200K

The AMH-200K-S Permeameter automatically measures the magnetic properties of soft metal rings and strips at frequencies up to 200 KHz, complying with international standards.

FRA 5311 Sweep Frequency Response Analyser 1

FRA 5311 Sweep Frequency Response Analyser

The FRA 5311 Sweep Frequency Response Analyser is a compact, rugged device for diagnosing transformer and rotating machine issues, measuring key electrical parameters per IEC and ANSI standards.

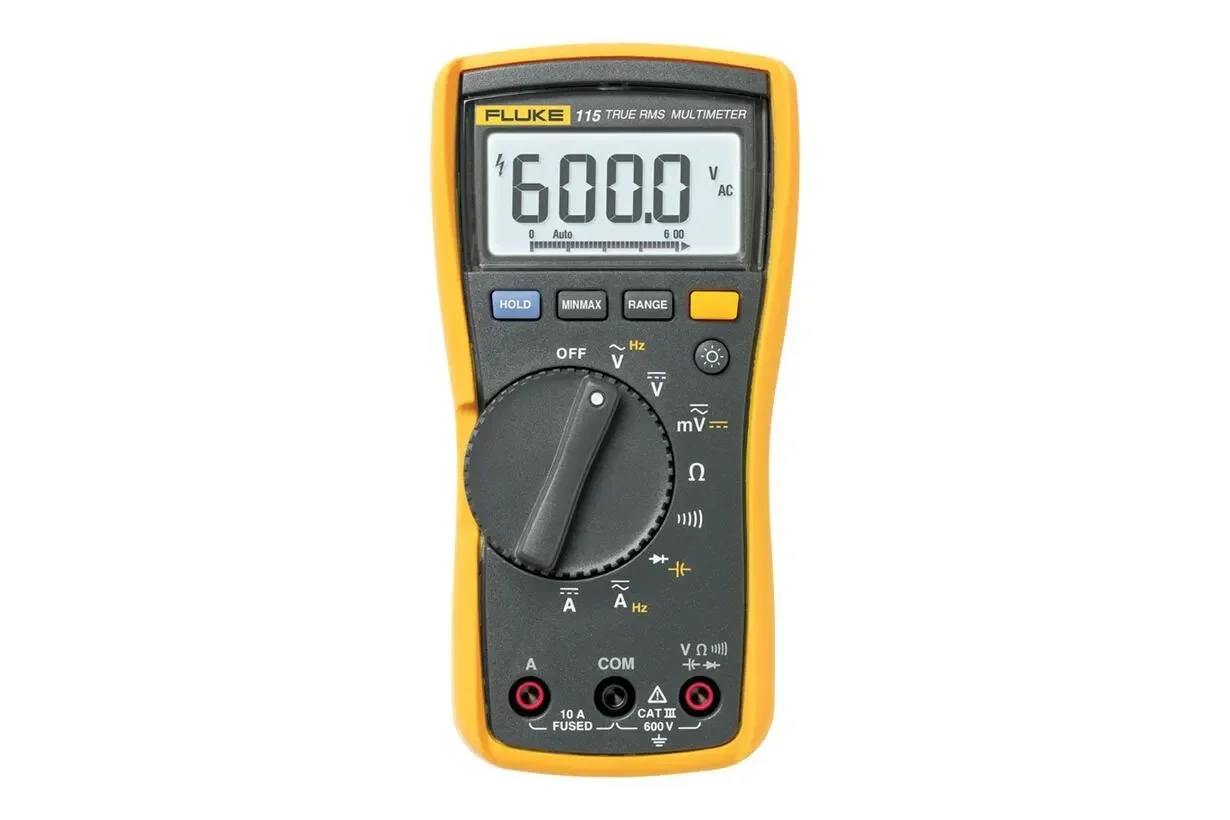

Fluke 115 Field Technicians Digital Multimeter 1
