SPEEDIO S700Xd2-5AX 100T

Overview

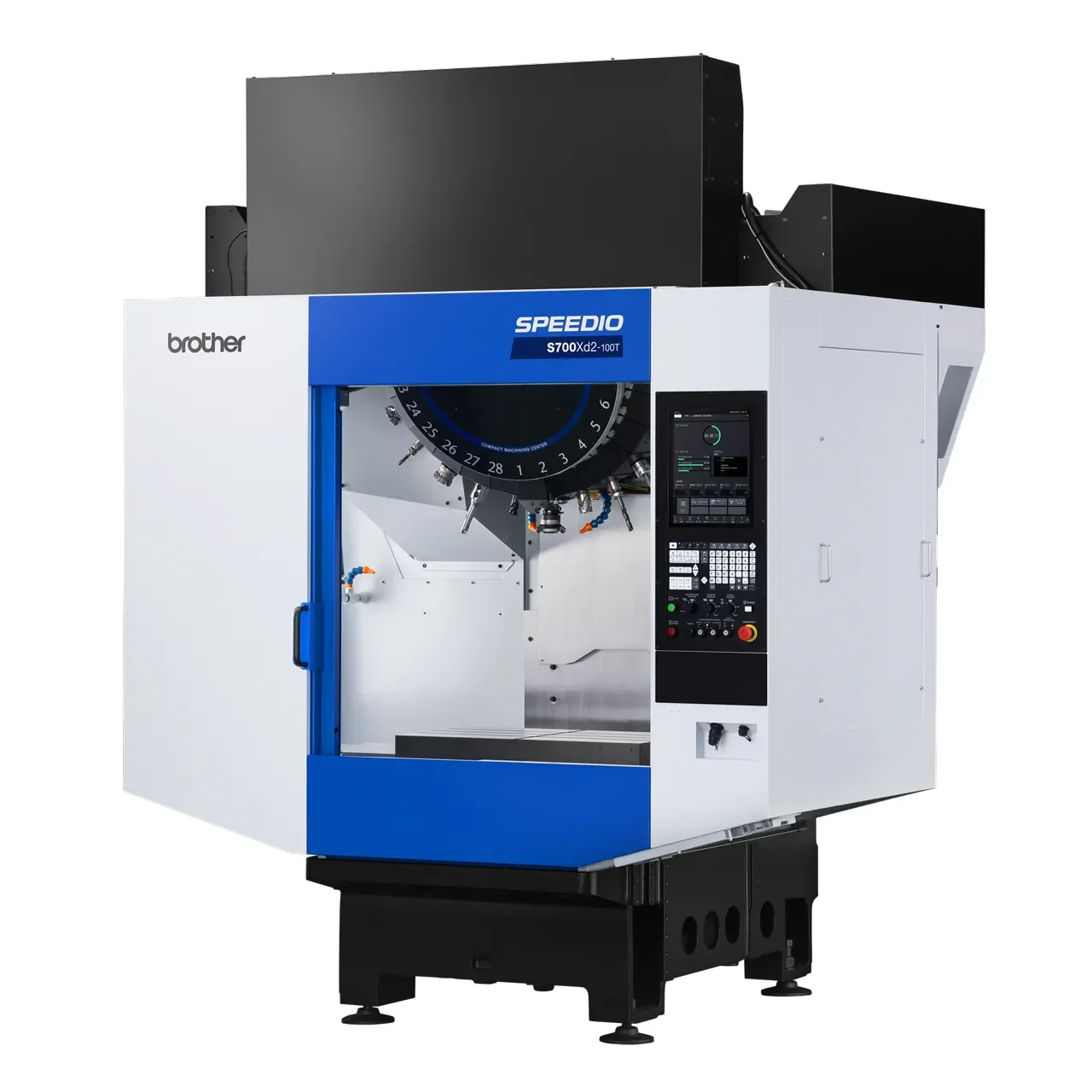

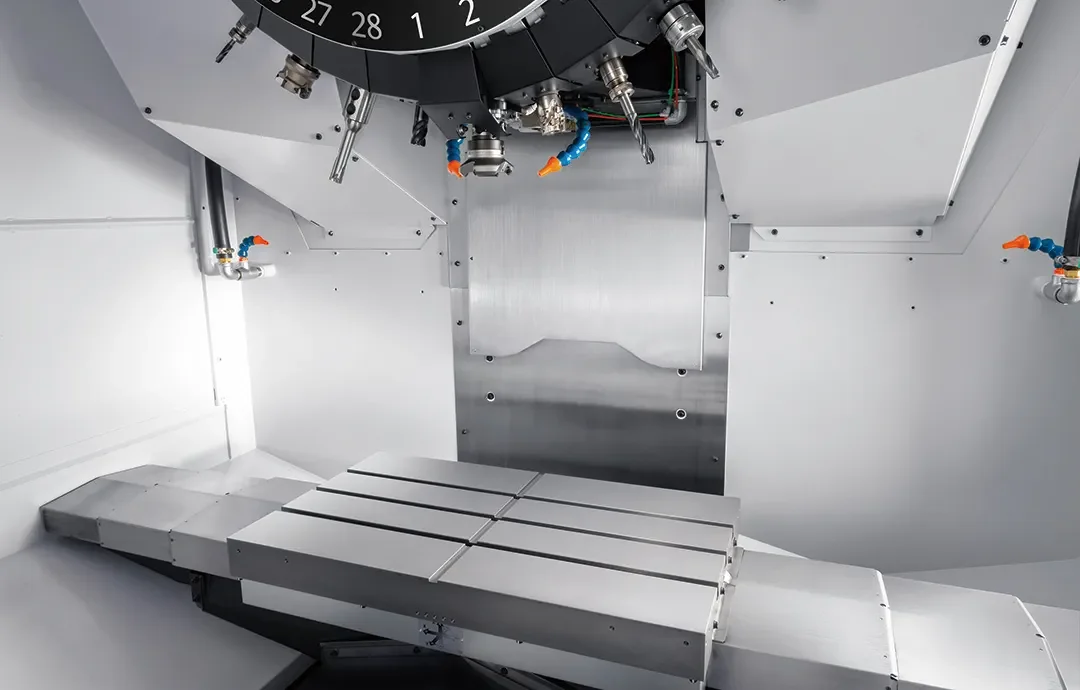

SPEEDIO S700Xd2-5AX 100T is a compact vertical 5-axis machining center offered with a 100-tool magazine configuration and BT30 vertical compact machining center variants. Travels are X: 700 mm, Y: 450 mm, Z: 380 mm (15.0 inch). Rapid traverse rates (XYZ axes) are 50 x 50 x 56 m/min (1,969 x 1,969 x 2,205 inch/min). Required floor space is 2,050 x 2,081 mm and machine height is 2,568 mm, with a machine weight [with BV7-870Ad] of 2,700 kg. Maximum spindle speed options are 12,000 / (Optional) 10,000 high-torque / (Optional) 20,000 min-1. Spindle specifications published in the product content include: 10,000 min-1 high-torque spec — Max. torque 92N m, Max. output 26.2kW; 20,000 min-1 spec — Max. torque 27N m, Max. output 15.4kW; 12,000 min-1 spec (standard) — Max. torque 40N m, Max. output 18.9kW. Spindle start/stop time is 0.15s or less (high-torque spec) and BT dual contact spindle (BIG-PLUS) and Coolant Through Spindle (CTS) are listed as optional. Tool storage is provided by a turret magazine plus stockers: turret magazine 28 tools, tool stocker (left/right) 36 tools each, total storage capacity 100 tools. Turret magazine tool-to-tool time (28 tools) is 0.7s and chip-to-chip is 1.4s; tool stocker handling shortest (1 tool) is approx. 5s and all tool change (28 tools) is approx. 140s. Magazine load conditions estimate function is described but explicitly cannot be used for tool stockers of the S700Xd2-100T. Other motion and control characteristics include Z-axis acceleration Max. 2.2G, simultaneous operation during tool change and axis positioning, an original CNC-D00 controller with enhanced look-ahead and minute-line-segment processing, and optional vibration adjustment and tool cleaning systems. Power supply is AC 200 to 230 V ±10%, 3-phase, 50/60Hz ±2%, and continuous power capacity values are given per spindle specification (12,000 min-1 spec: 9.5 kVA; 10,000 min-1 high-torque spec (Optional): 10.4 kVA; 20,000 min-1 spec (Optional): 9.5 kVA). The product description explicitly cites improved efficiency for high-mix small-lot production, noting that the 100-tool magazine reduces the need for frequent tool changes and the ample jig area enables multiple jigs to be mounted for such work. It also states expanded application range for process integration such as multi-face machining and variable-product variable-volume production due to increased Y/Z travels and a larger table. Simultaneous 5-axis machining capability (S300/500/700Xd2-5AX) with tool center point control and enhanced look-ahead processing is described for high-speed, highly accurate 5-axis work. An example part shown is a relay box made of aluminum alloy under “Communication equipment,” illustrating an explicit application instance. Optional automation-related equipment mentioned for the S700Xd2-100T includes a side shutter for side loading/unloading by robots and selectable chip conveyors (scraper type and hinge + scraper type).
