Leitz Reference Flexibility

Overview

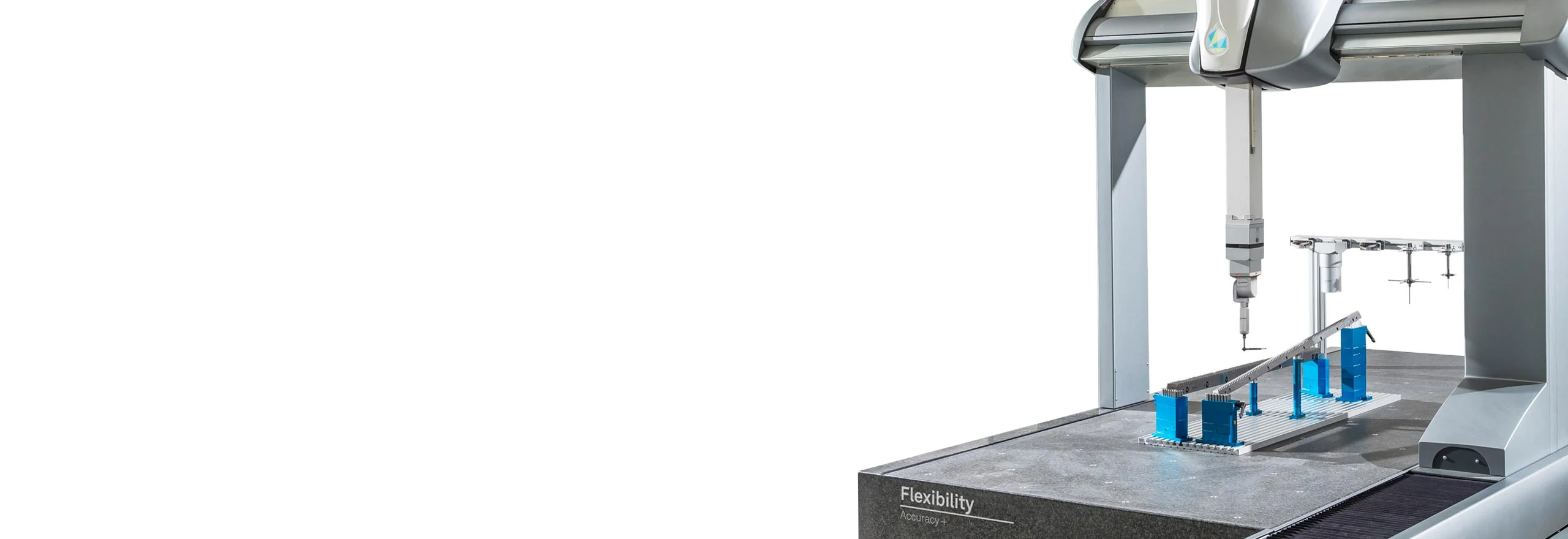

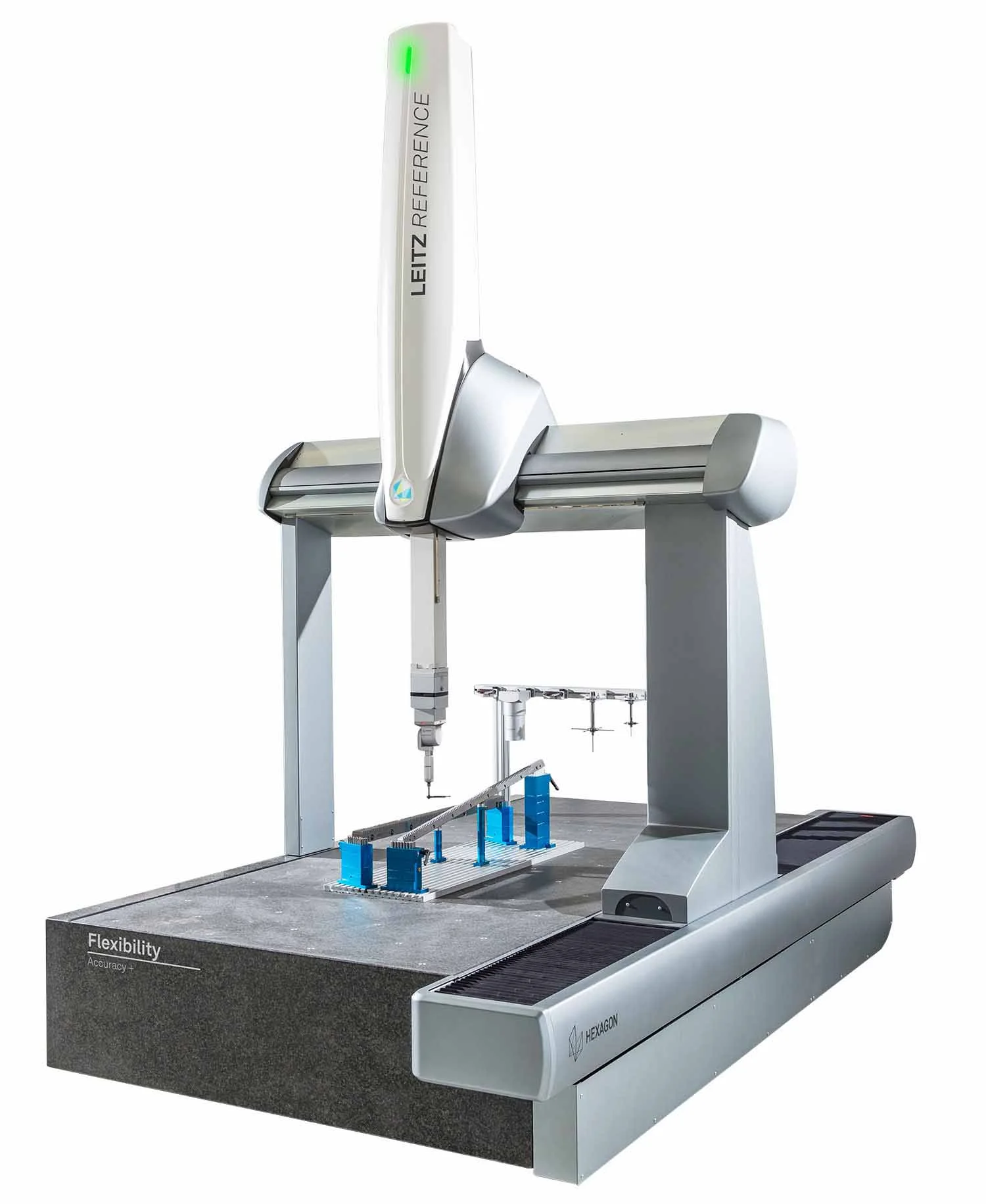

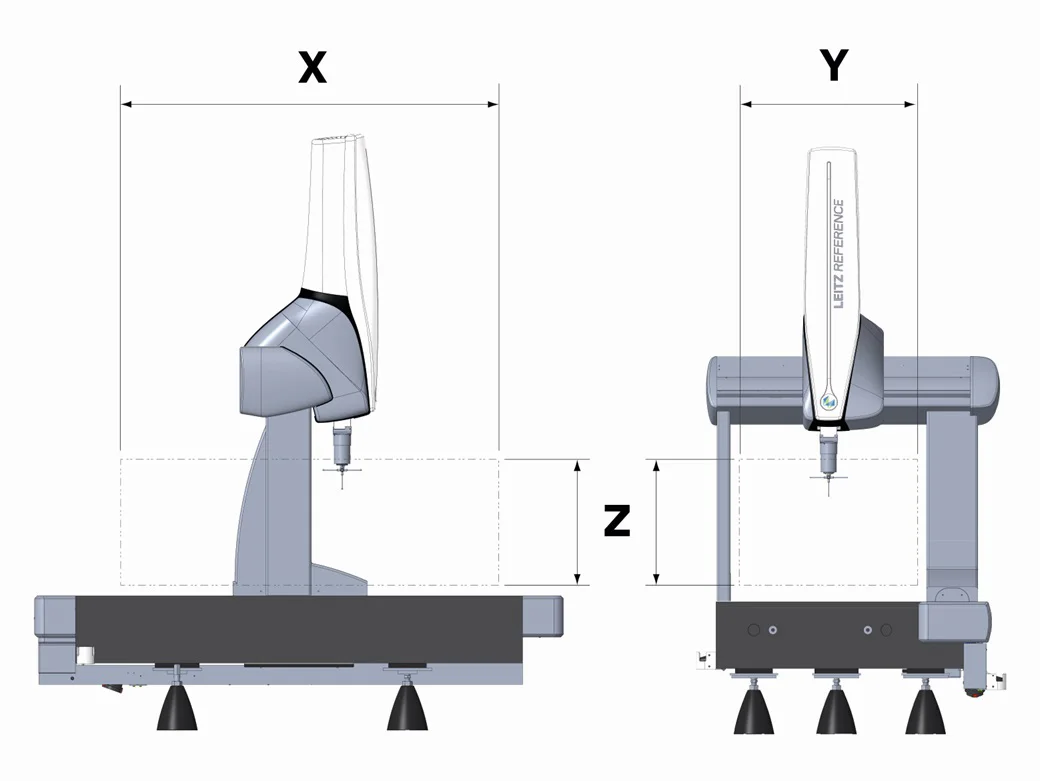

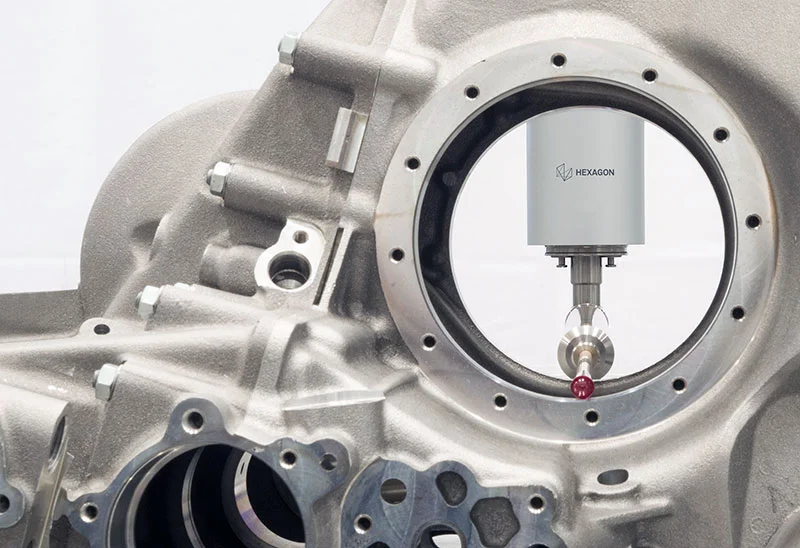

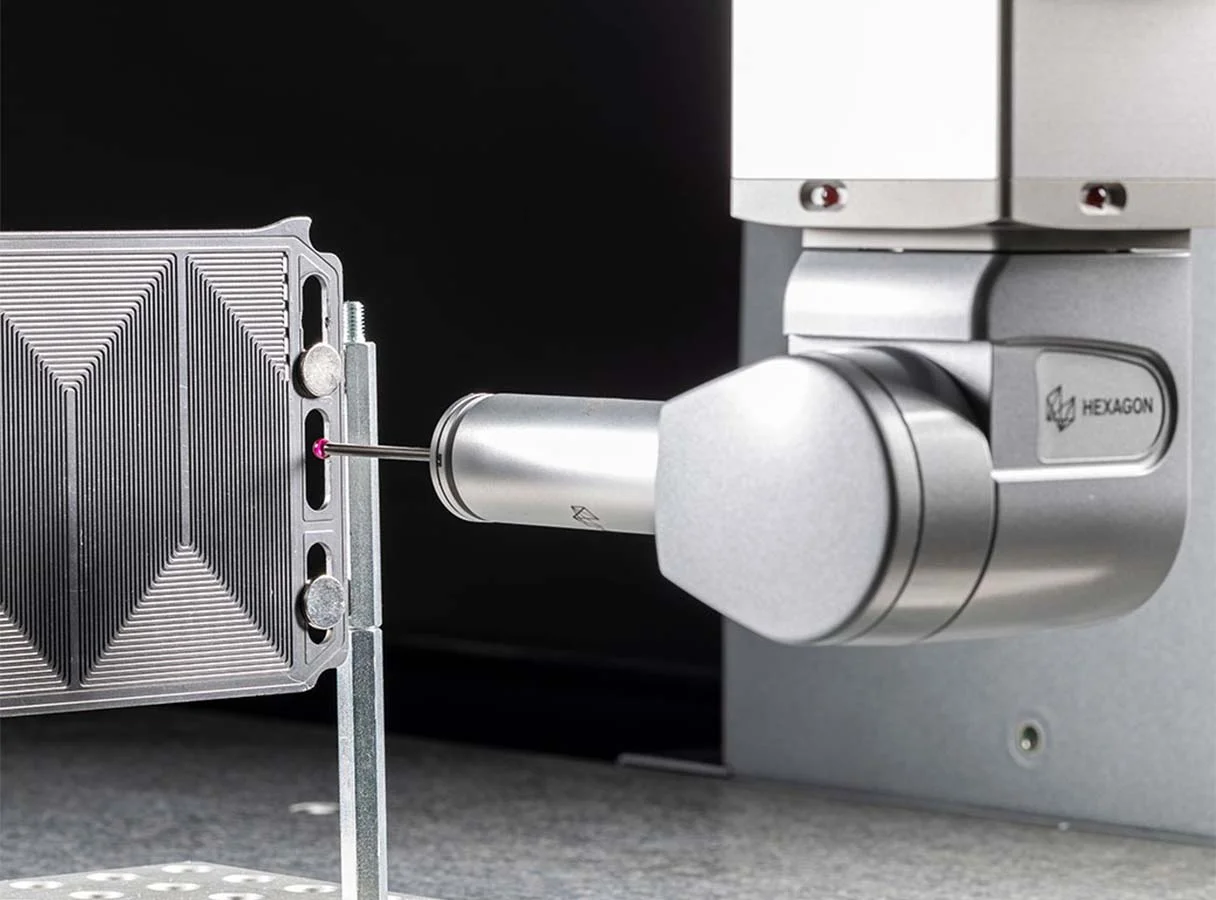

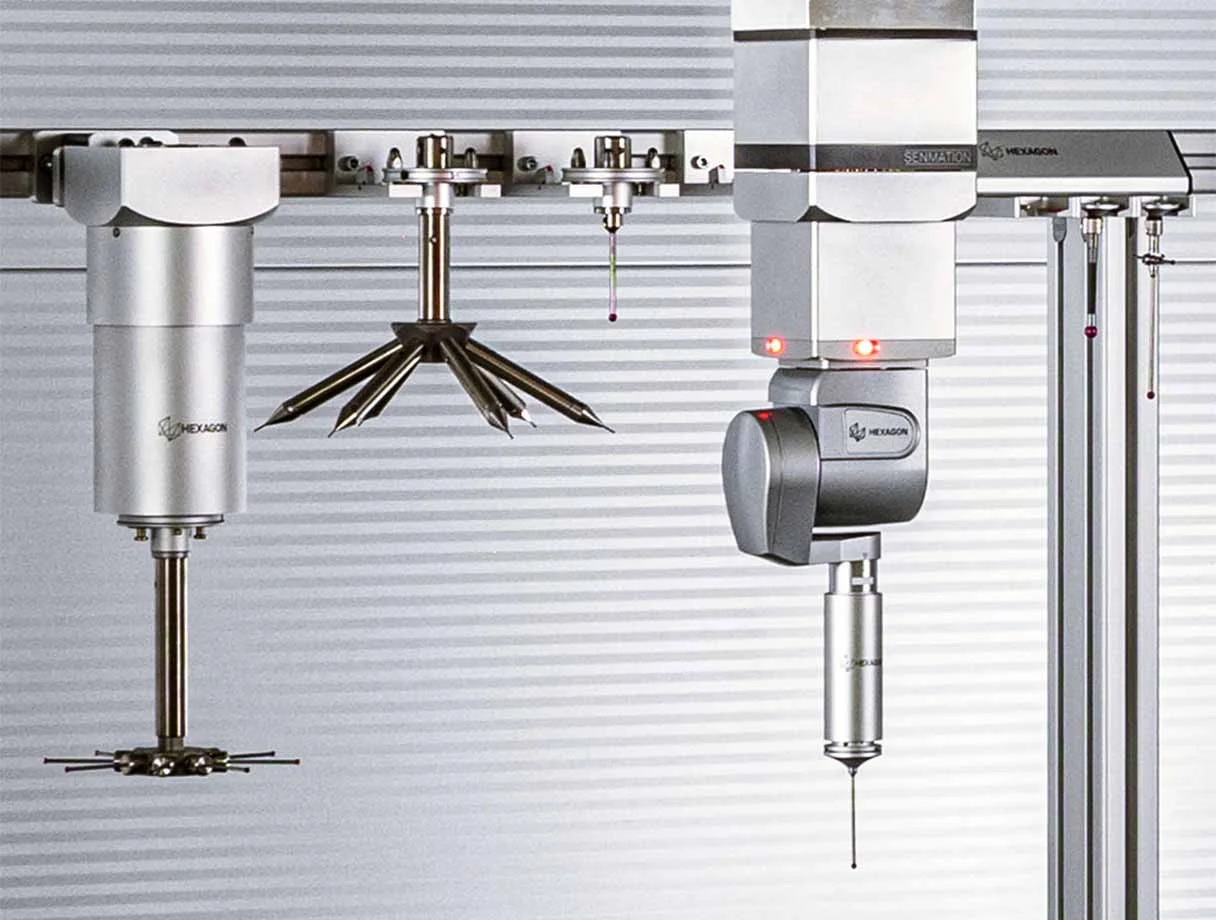

Available as a family of measuring systems with defined measuring volumes expressed as X (Width) | Y (Depth) | Z (Height). Representative model configurations and their nominal measuring volumes are: - Type 7.7.5: X (Width) 700 mm | Y (Depth) 700 mm | Z (Height)* 420 - 500 mm ** - Type 10.7.6: X (Width) 1000 mm | Y (Depth) 700 mm | Z (Height)* 580 - 650 mm ** - Type 12.9.7: X (Width) 1200 mm | Y (Depth) 900 mm | Z (Height)* 700 - 770 mm **; 560 - 640 mm *** - Type 15.9.7: X (Width) 1500 mm | Y (Depth) 900 mm | Z (Height)* 700 - 770 mm **; 560 - 640 mm *** - Type 20.9.7: X (Width) 2000 mm | Y (Depth) 900 mm | Z (Height)* 700 - 770 mm **; 560 - 640 mm *** - Type 15.12.9: X (Width) 1500 mm | Y (Depth) 1200 mm | Z (Height)* 940 - 970 mm **; 800 -880 mm *** - Type 22.12.9: X (Width) 2200 mm | Y (Depth) 1200 mm | Z (Height)* 940 - 970 mm **; 800 - 880 mm *** - Type 30.12.9: X (Width) 3000 mm | Y (Depth) 1200 mm | Z (Height)* 940 - 970 mm **; 800 - 880 mm *** - Type 40.12.9: X (Width) 4000 mm | Y (Depth) 1200 mm | Z (Height)* 940 - 970 mm **; 800 - 880 mm *** Z (Height) values are configuration-dependent: * values depend on selected sensor configuration; ** values are for machines equipped without SENMATION; *** values are for machines equipped with SENMATION. These stated widths and depths span from 700 mm up to 4000 mm (X) and 700 mm to 1200 mm (Y), supporting a wide range of part footprints. Specify the frame size to match the largest part envelope to be inspected on the production floor or in a manufacturing R&D/metrology lab; X and Y determine the part footprint capacity while Z usable travel varies with sensor package and the optional SENMATION configuration. Suitable for industrial-scale quality control and dimensional inspection workflows where repeatable, configurable measuring volumes are required across small to very large parts (700 mm to 4000 mm width). When selecting a configuration, consider the sensor package because it directly affects the available Z (Height) travel ranges listed for each type. An extended temperature operating range option of 15 – 30°C is available for installations requiring tighter ambient control; include that requirement in site planning and environmental control strategies during procurement and installation.
