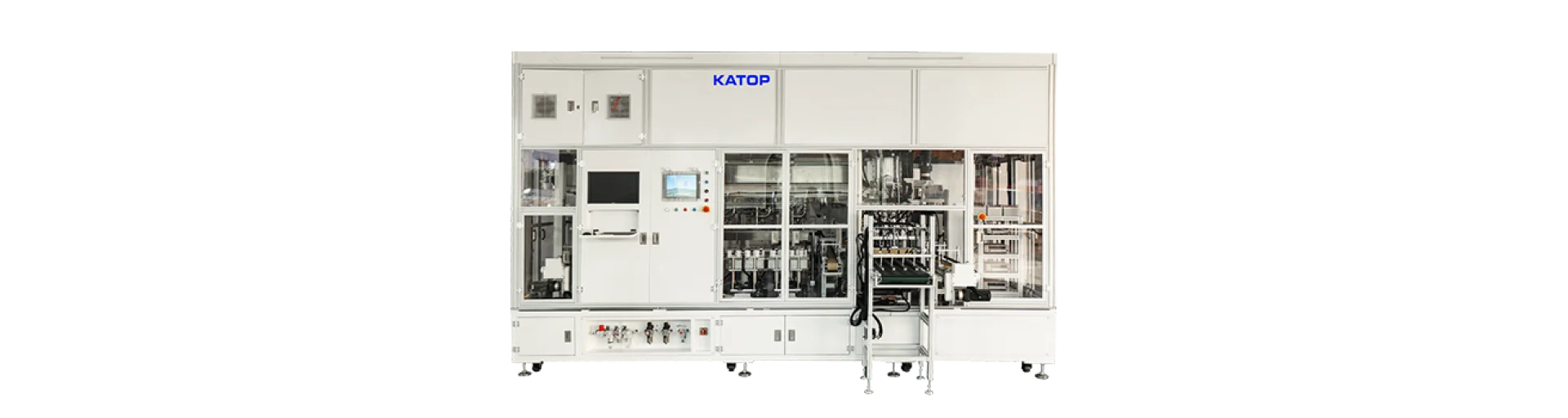

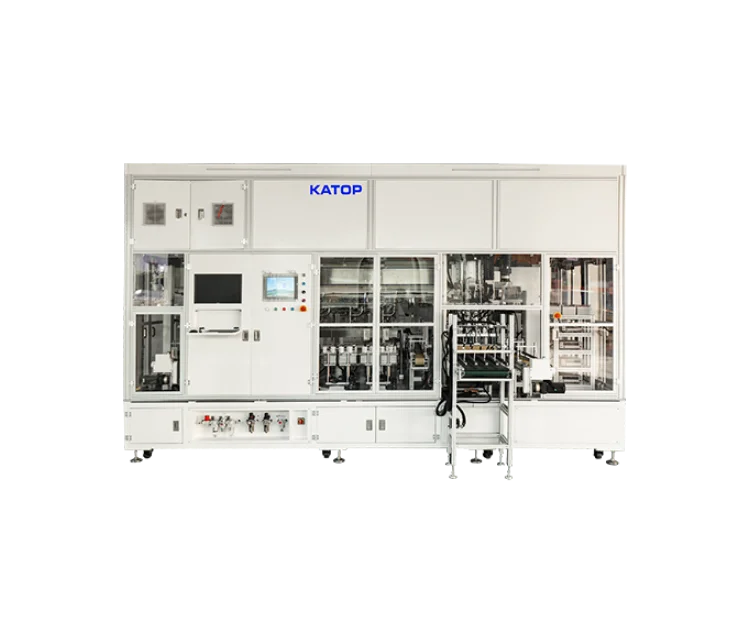

Front/Post Helium Detection Equipment

Overview

Front/Post Helium Detection Equipment is suitable for air tightness test of aluminum shell power battery top cover after welding and before liquid injection. Discharge mode: two batteries are a group of parallel incoming materials. The data acquisition system performs real-time acquisition and storage of traceability records corresponding to each product, binds records with the battery bar code, generates a csv file and stores it in the designated folder of the industrial computer for Party A's information management system to read. Product features include stable helium injection with low misjudgment rate; a well designed fixture inside the chamber enabling rapid type change and strong compatibility; large leakage detection function to reduce helium consumption and chamber cleaning frequency; and an equipped helium recovery port to improve helium utilization rate. Key parameters: Overall dimension(L*W*H) 6000*2500*2700mm; Dualification rate ≥99%; Utilization rate ≥98%; Weight 9000kg; Electrical supply AC380V 28KW; Capacity PPM≥20; Compatibility range T: 20-90mm W: 120-305mm H: 70-250mm; Technical parameter Battery leakage rate 9.9 x 10mPa.m³/s. Performs air tightness testing of aluminum shell power battery top covers after welding and before liquid injection. Operates with a discharge mode of two batteries as a parallel incoming-material group and provides real-time traceability records bound to battery bar codes, exporting csv files to a designated industrial computer folder for Party A's information management system to read. Detects large leaks and supports helium recovery to reduce helium consumption and decrease chamber cleaning frequency.
