LR20D-1740

Overview

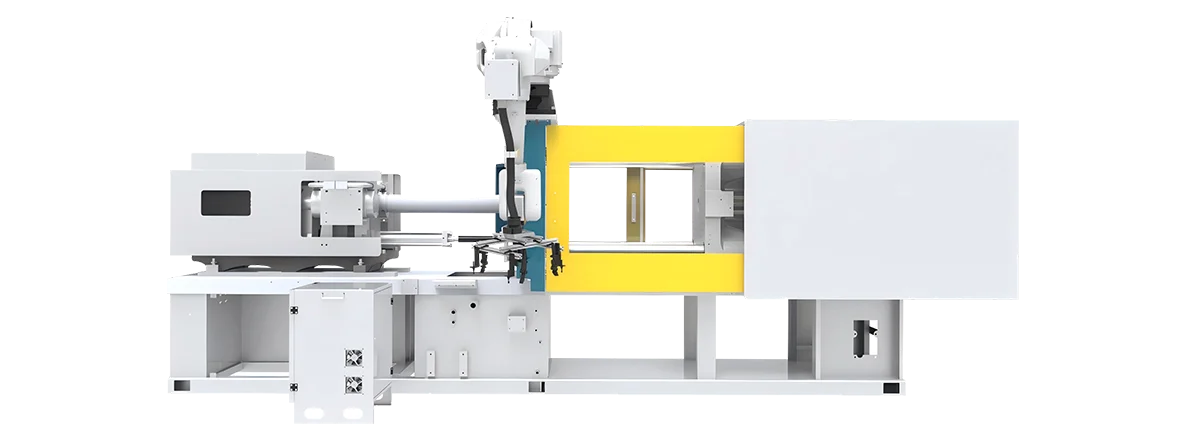

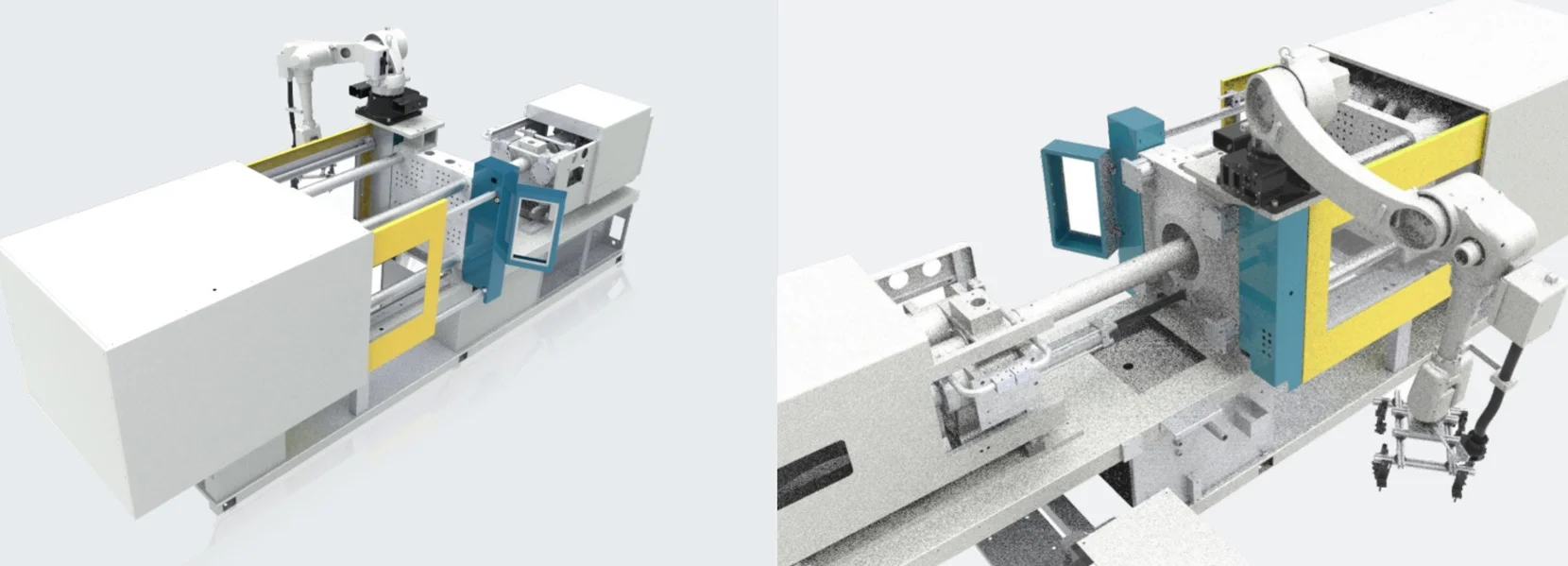

LR20D-1740 robotic workstation is designed with a load capacity of 20KG and a maximum reach of 1,740mm, and is compatible with injection molding machine models PT200-PT560, EL200-EL450, and FA450-FA550. The robot is installed on top of the injection molding machine for production. It is suitable for extracting various injection-molded parts and can be expanded to incorporate automated processes such as placing inserts, trimming water gates, deburring, marking, and weighing. Electric Control Cabinet Model LRK-S10 has input power supply AC220V-1P, rated power 5KW, and body weight 65kg. Product features list Economic Efficiency, Intellectualization, and Efficiency, describing reduced production-line personnel, more intelligent and integrated robot–injection molding machine production, and quick, stable production progress. Deployed on top of compatible injection molding machines (PT200-PT560, EL200-EL450, FA450-FA550) for extraction of various injection-molded parts. The workstation can be expanded to perform automated tasks including placing inserts, trimming water gates, deburring, marking, and weighing. It is indicated as applicable to the transportation, smart 3C, and home appliance industries.
