Super Thin Multi Wire Saw Machines for Natural Stone DSY-XY3411/DSY-JS3411/DSY-XY3623/DSY-JS3623

Overview

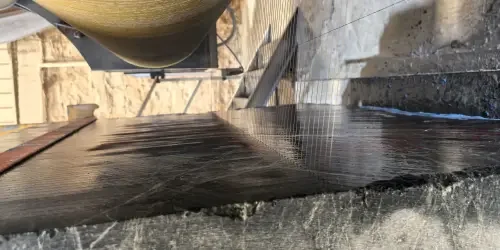

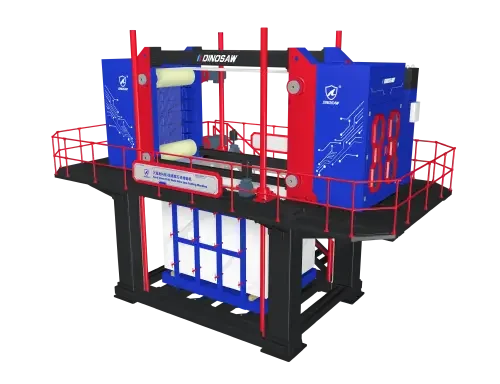

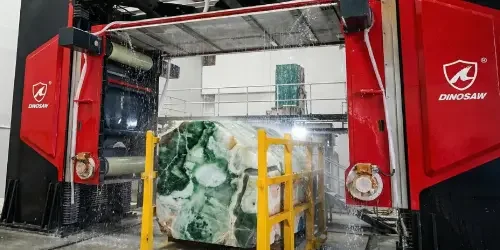

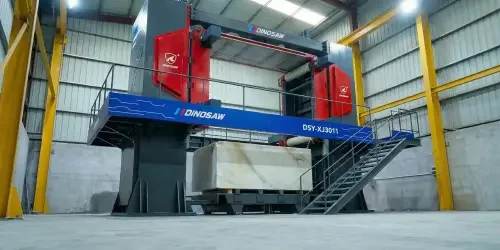

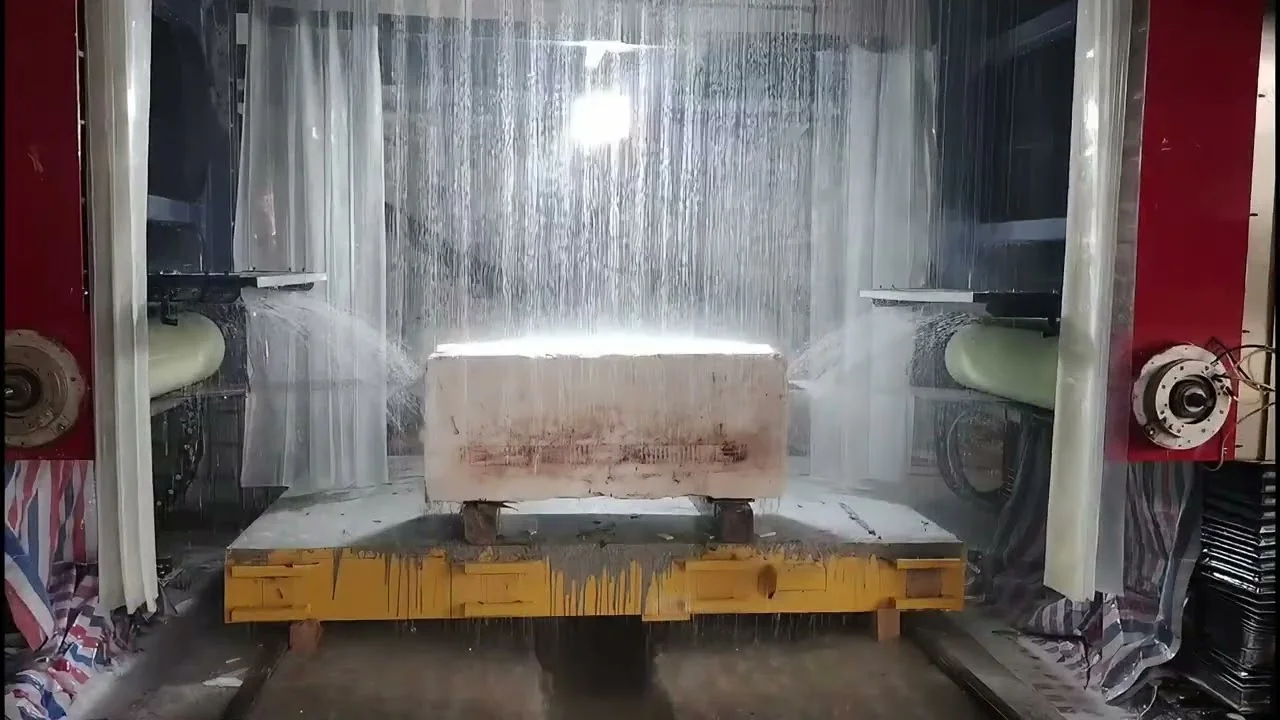

Models DSY-XY3411, DSY-JS3411, DSY-XY3623 and DSY-JS3623 are Super Thin Multi Wire Saw Machines for Natural Stone designed for high-precision block cutting using ultra-thin diamond wire technology; the product description specifies proprietary 0.35mm diamond wires and a 0.5mm kerf loss. Key performance features include Siemens servo-controlled tension with ±1N accuracy, a 3S quick start-stop system with 42m/s high-speed cutting, an AI-enabled CNC Smart Recipe system for automatic parameter recommendation, real-time tension feedback safety, and a filtration system that reduces cutting slurry and wastewater by over 80%. The machines are described as quiet under 75dB and incorporate an energy recovery system with 20% energy saving. The thin multi-wire saw machines are mainly used to cut stone blocks directly into ultra-thin slabs at the block-cutting stage, with the capability to cut slabs as thin as 3 mm on suitable materials. Explicitly listed processable materials include luxury marble and onyx varieties, rare quartzite, high-grade granites, industrial hard materials (single crystal silicon, silicon carbide ceramics, graphite blocks, industrial ceramics, engineered quartz), premium jade, and rare/exotic stones such as Azul Bahia and Sodalite. Two feed configurations are provided: DSY-XY (downward pressing) for superior stability with large or dense blocks, and DSY-JS (up lifting) for better cooling efficiency and easier slab removal for marble and onyx; the machines are presented for applications ranging from high-volume marble slicing with reduced labor costs to production of museum-quality, luxury, and exclusive architectural panels.
