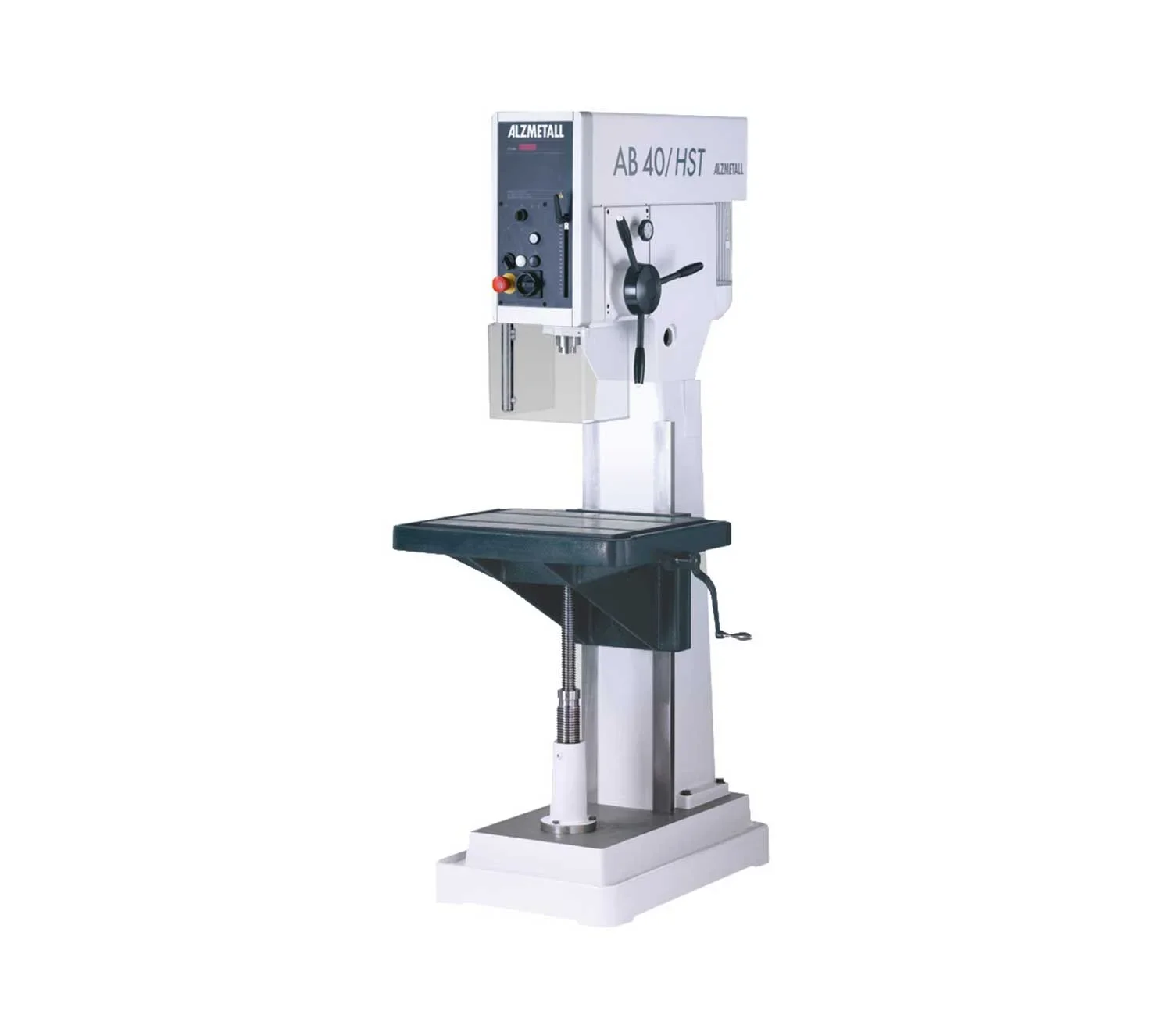

AB 40/HST

Overview

AB 40/HST is a Semi-Box Column Drilling Machine; product variant AB 40 iTRONIC-HST. Standard Equipment: - Electro-magnetic feed clutch - Control and Light Transformer 24 Volts - Main switch lockable - Motor heat-protected - Self-Locking Mushroom Button for Emergency-Off - Right rotation trough protective control - Infinitely variable speed drive, mechanical variator - Digital RPM Read-out - RPM setting by potentiometer (w/o lever) - Protection class IP 54 - Motor Isolation Class "F" (155′) - Cable w/o plug, 2m - Spindle protection electrically secured - Lacquer: DD-structured signal white RAL 9003, PANTONE 7545c, black - Machine oil Technical specifications: - Machine concept: Column Drilling Machines - Drilling Capacity Steel E335 (St 60) [mm]: 50 - Tapping performance steel E335 (St 60) [mm]: M 30 - Spindle, short: MT 4 - Z-travel of spindle [mm]: 160 - Distance spindle to column [mm]: 330 - Column diameter [mm]: 290 - Table clamping area [mm]: 742 x 460 - Distance spindle - table min./max. [mm]: 266 / 928 - Spindle Rpm range | Option 1 [U/MIN-1]: 100 – 1.600 - Spindle Rpm range | Option 2 [U/MIN-1]: 70 – 4.000 - Motor 2 [MIN-1]: 750 / 1500 - Power [KW]: 1,8 / 2,9 - Power 2 [U/MIN-1]: 1,8 / 2,9 - Touchscreen: No Available options: - Spindle Reverse switch for counter-clockwise rotation - LED machine light - Tapping Attachment w/o foot switch - Tapping Attachment with reverse foot switch - Coolant Attachment A* - Coolant Attachment B - Digital Depth Read-Out - Automatic Drill Depth Control (Autodigit) - Column extension - Precision Depth Adjuster and fixed stop - Special feeds - Anchoring set - Wooden packing, disposable For high performance drilling. Supports tapping operations up to M 30 in steel E335 (St 60).
