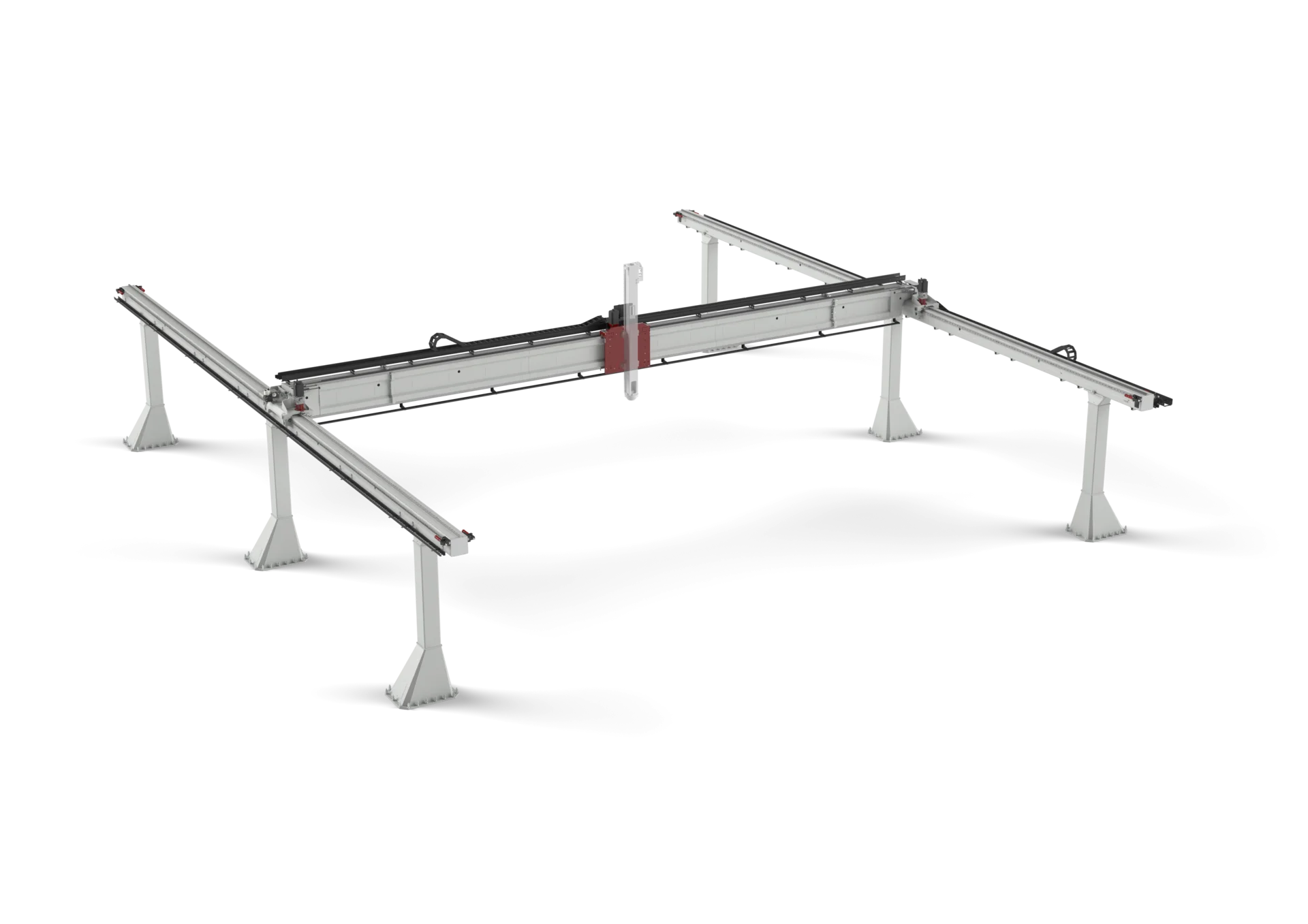

3-axis gantry FP-5-HP

Overview

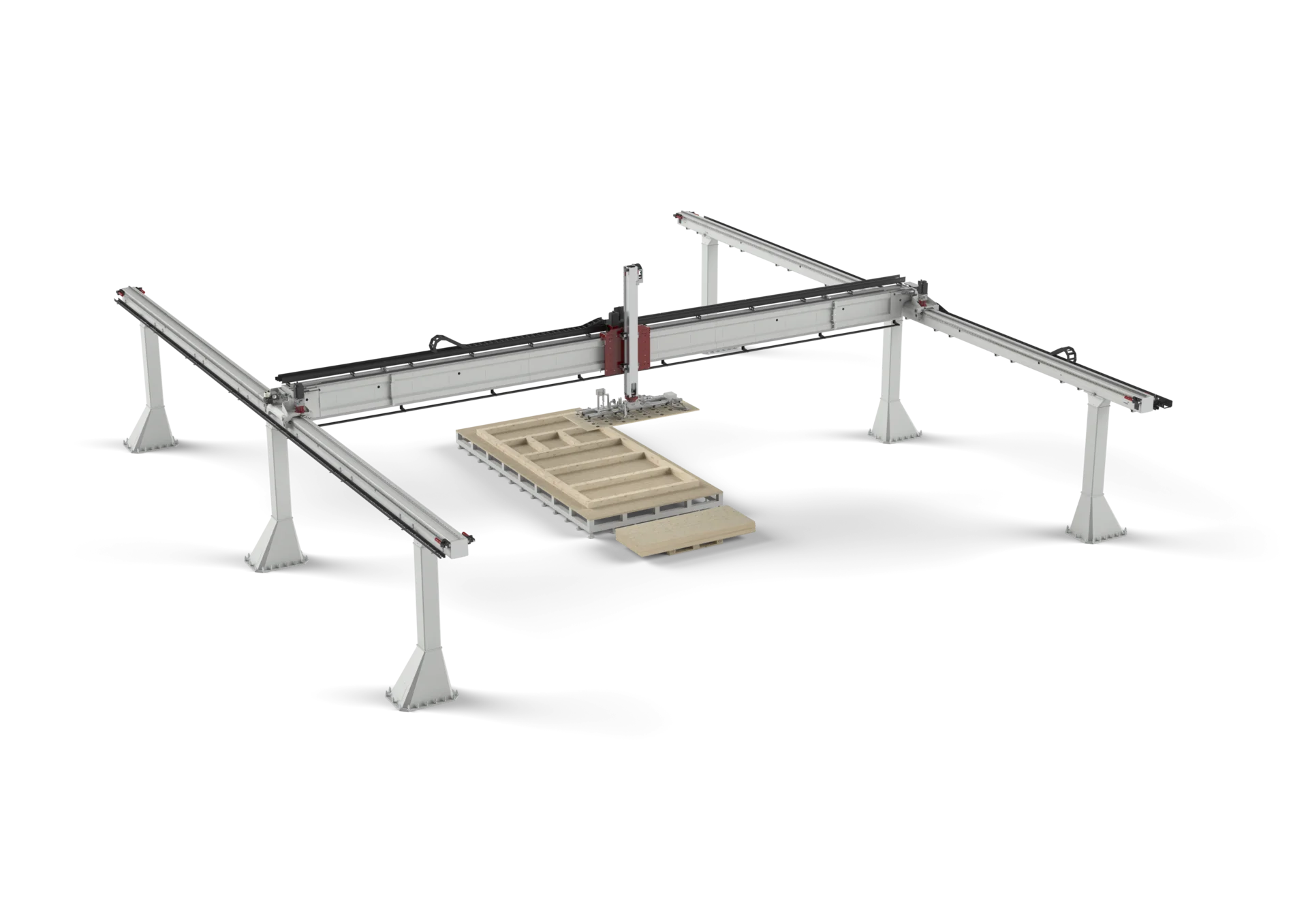

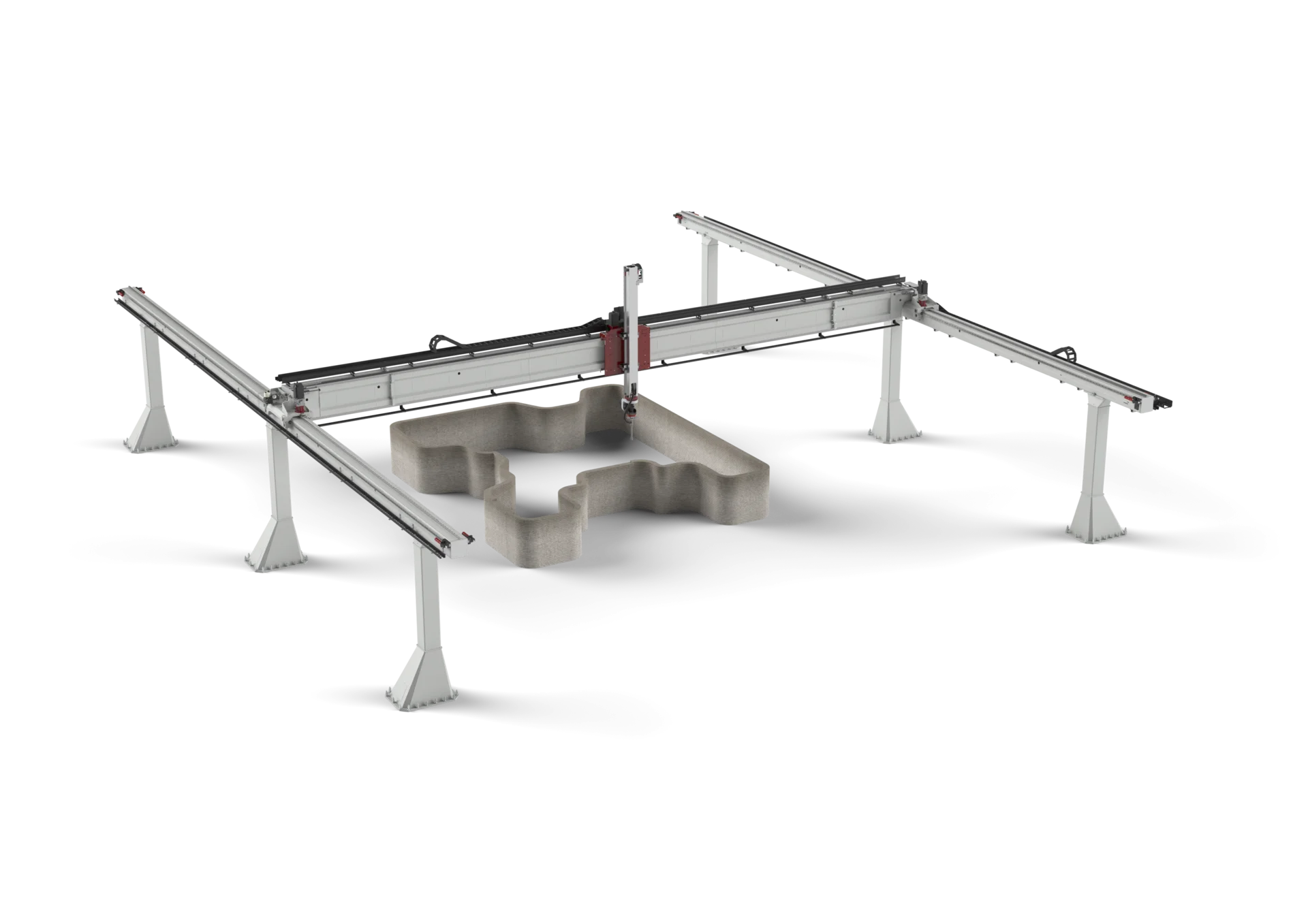

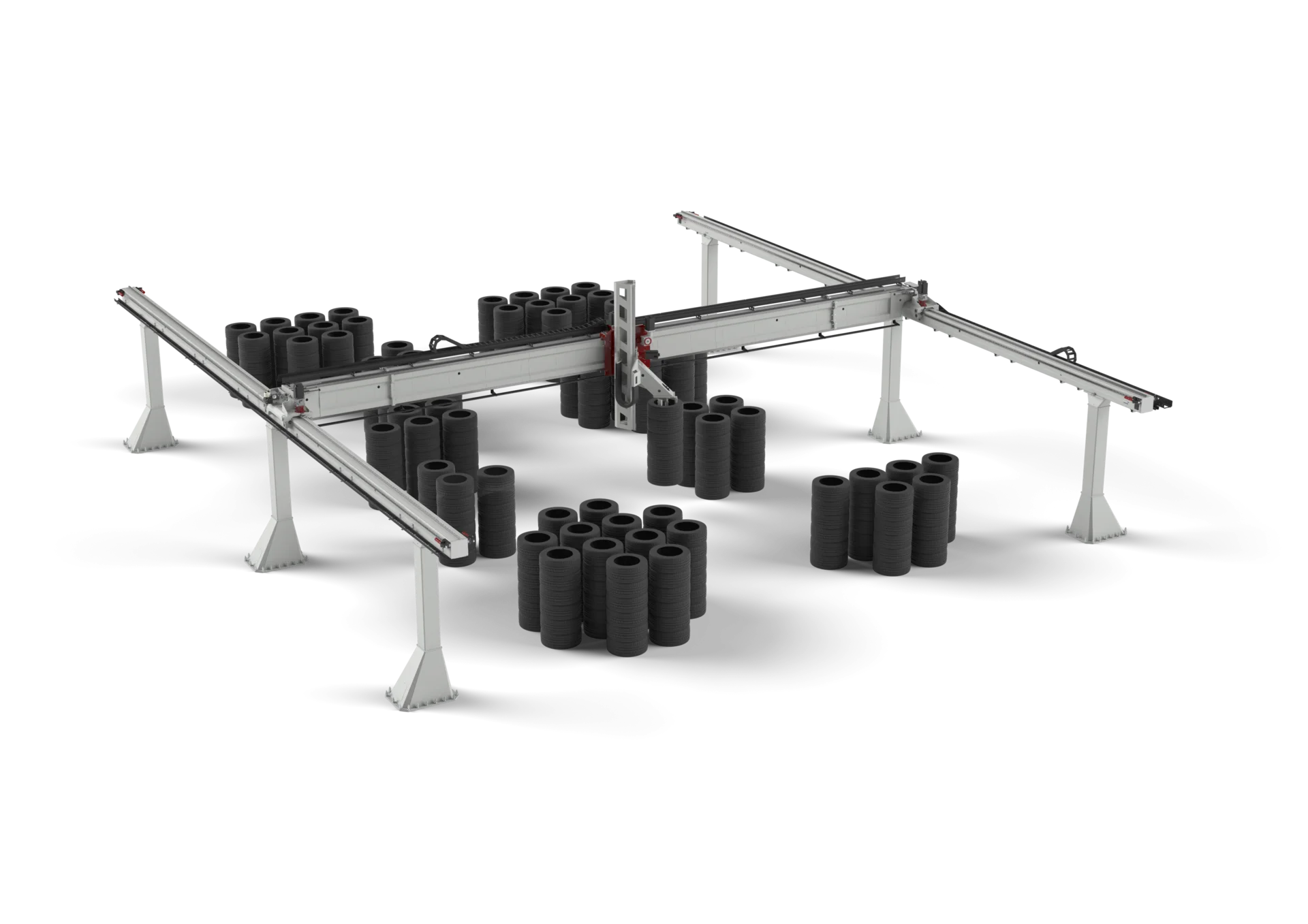

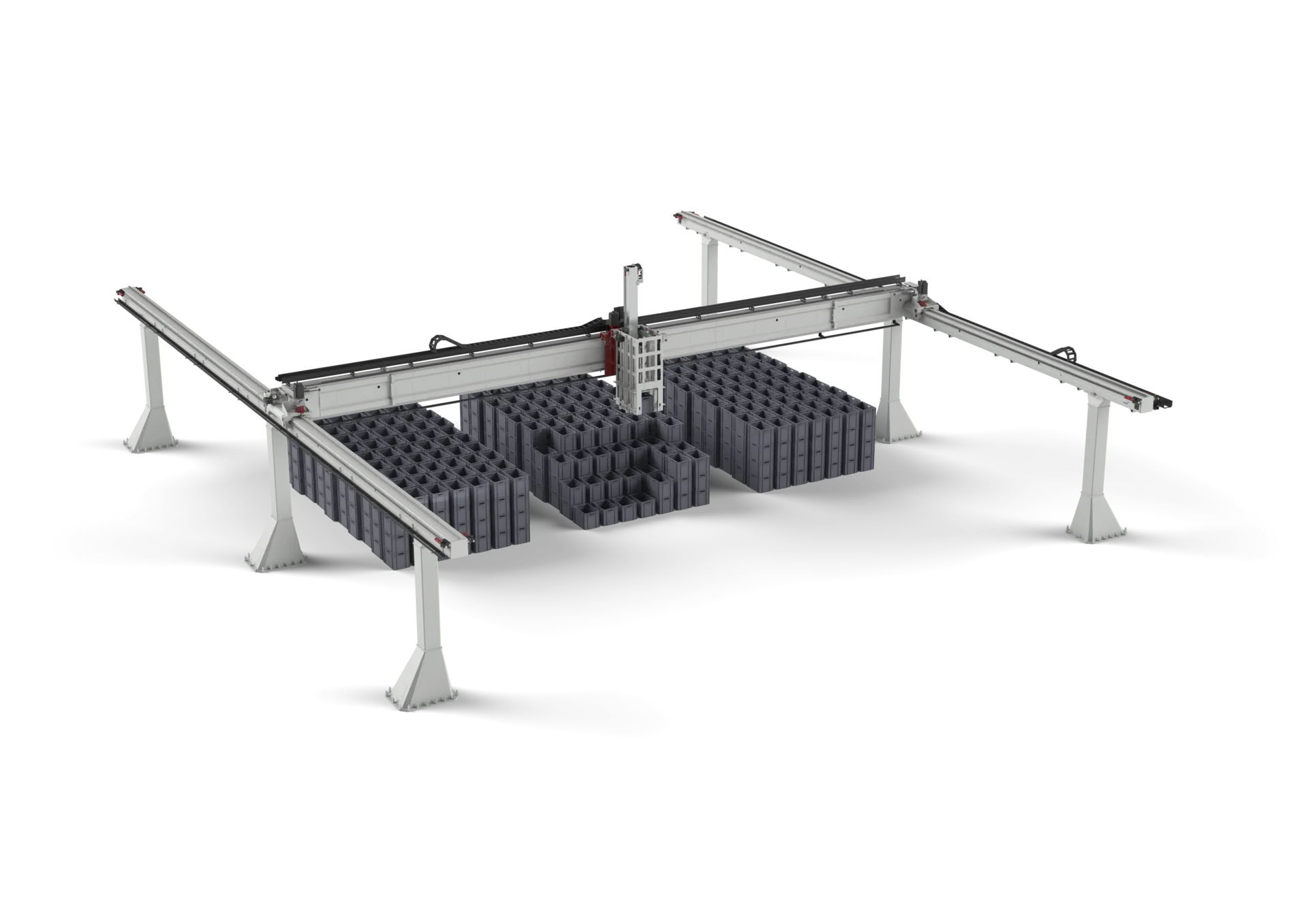

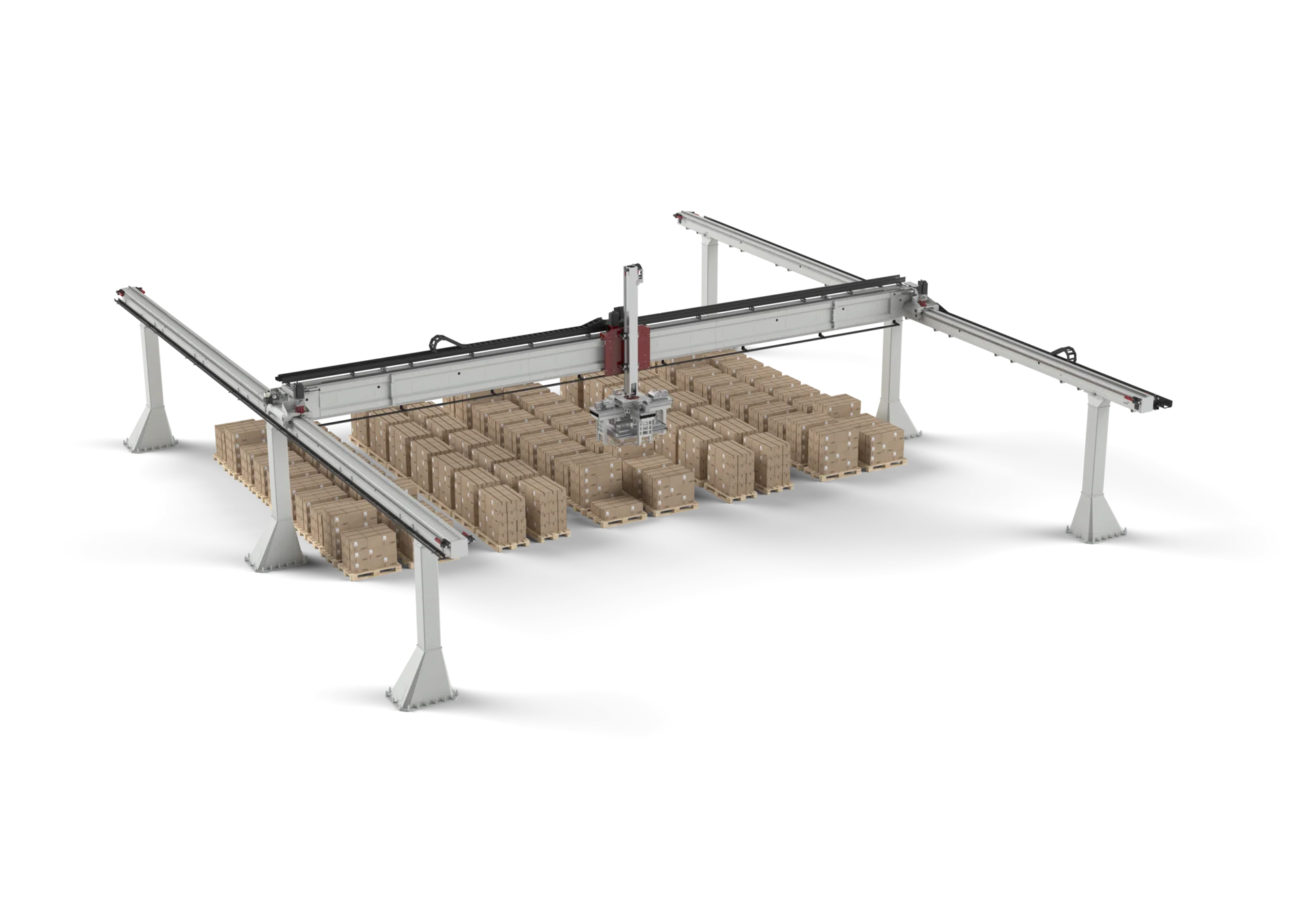

The 3-axis gantry FP-5-HP is a high performance gantry with a Y-Axis maximum stroke of 14 m. The FP-5-HP supports a load on the Y-Carriage of up to 1100 kg and an effective high dynamic payload of up to 500 kg when equipped with a Z-Axis. The anchoring system requires only 220 mm of concrete thickness and the product downloads list a payload of 5000 N. The gantry is described as light weight and compact yet robust, modular for ease of installation and minimum maintenance, and the Y-Carriage and gantry interface are designed to be compatible with different grippers and Z-Axis. The FP-5-HP area gantry is especially suited to applications where large work areas must be covered with the highest possible dynamics. Applications shown on the product page include Pick and place; Tire/Wheel handling; Crates handling; Layer picking; Process application; Wooden components.
