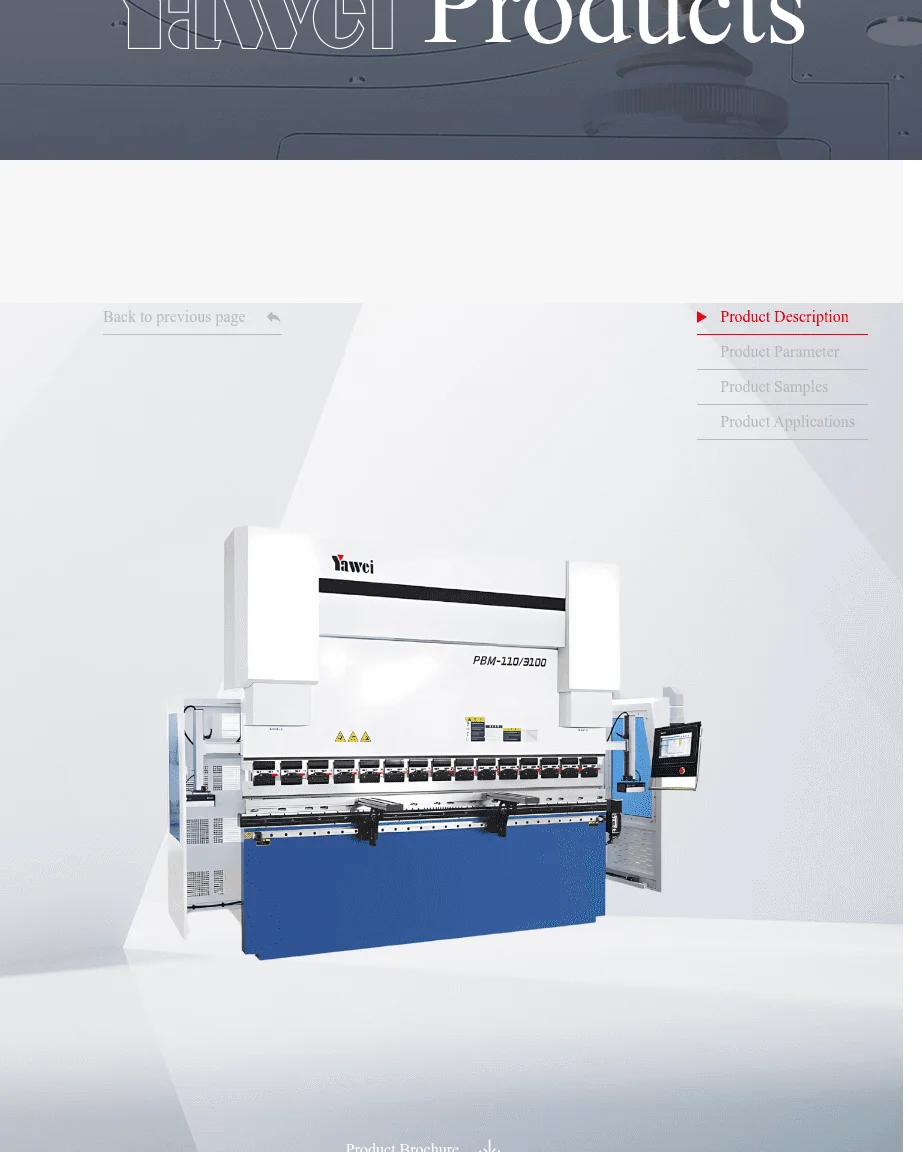

PBM High-End CNC Press Brake

Overview

The PBM High-End CNC Press Brake series are industrial CNC press brakes offered in multiple configurations with nominal forming forces of 1100kN, 1600kN and 2200kN and table lengths of 3100mm or 4100mm. Models are provided with complete machine overall footprints and shipped weights suitable for factory installation. Common mechanical envelopes across the series: Mould height E: 600mm; Slider stroke C: 265mm; Throat opening D: 410mm. Model-specific technical highlights: - PBM-110/3100 — Motor power: 5.5*2kW; Slider speed: 250mm/s, 20mm/s, 220mm/s; Nominal force: 1100kN; Table length A: 3100mm; Column spacing B: 2600mm; Overall Dimension L*W*H: 3610*1550*2935mm; Total weight of machine: 9000kg. - PBM-110/4100 — Motor power: 5.5*2kW; Slider speed: 250mm/s, 20mm/s, 220mm/s; Nominal force: 1100kN; Table length A: 4100mm; Column spacing B: 3600mm; Overall Dimension L*W*H: 4610*1550*2985mm; Total weight of machine: 9700kg. - PBM-160/3100 — Motor power: 7.5*2kW; Slider speed: 220mm/s, 18mm/s, 220mm/s; Nominal force: 1600kN; Table length A: 3100mm; Column spacing B: 2600mm; Overall Dimension L*W*H: 3630*1600*2985mm; Total weight of machine: 10500kg. - PBM-160/4100 — Motor power: 7.5*2kW; Slider speed: 220mm/s, 18mm/s, 220mm/s; Nominal force: 1600kN; Table length A: 4100mm; Column spacing B: 3600mm; Overall Dimension L*W*H: 4630*1600*3025mm; Total weight of machine: 12400kg. - PBM-220/3100 — Motor power: 15*2kW; Slider speed: 220mm/s, 15mm/s, 200mm/s; Nominal force: 2200kN; Table length A: 3100mm; Column spacing B: 2600mm; Overall Dimension L*W*H: 3650*1850*2995mm; Total weight of machine: 13000kg. - PBM-220/4100 — Motor power: 15*2kW; Slider speed: 220mm/s, 15mm/s, 200mm/s; Nominal force: 2200kN; Table length A: 4100mm; Column spacing B: 3600mm; Overall Dimension L*W*H: 4650*1850*3095mm; Total weight of machine: 14700kg. These PBM CNC press brakes are intended for industrial sheet-metal forming and precision bending workflows where controlled, repeatable bending force and programmed axis motion are required. The model range covers light-to-heavy forming needs: 1100kN and 1600kN units for mid-gauge production and 2200kN units for heavier-gauge or high-strength material forming. Table lengths of 3100mm or 4100mm (with matching column spacing of 2600mm or 3600mm) support long parts and continuous production runs. Select configurations based on part length and material thickness: choose a 4100mm table/3600mm column spacing when part or tool length requires extended support; choose higher nominal force and the 15*2kW motor variants for thicker-material forming or heavy-duty production. Overall Dimension L*W*H and Total weight of machine should be used to plan factory floor layout, foundation and material handling equipment for installation and cell integration.
