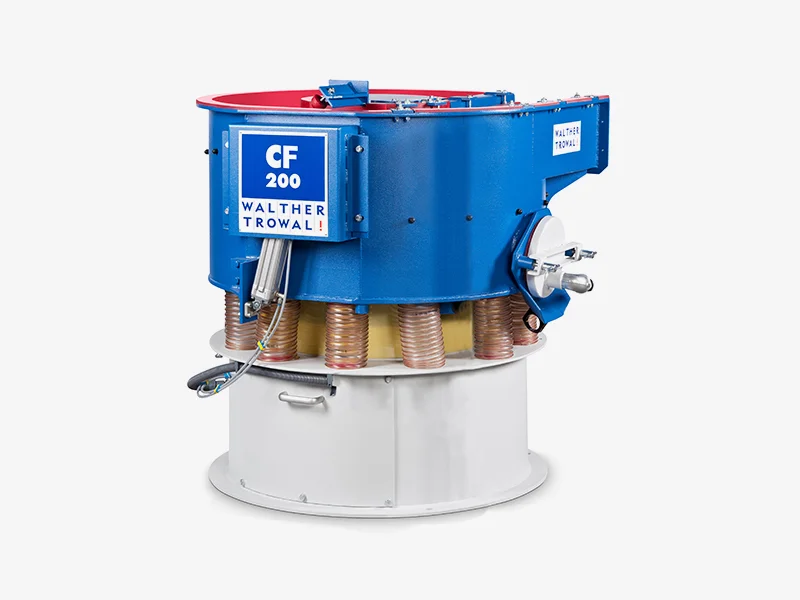

CF CIRCULAR VIBRATORY FINISHERS

Overview

CF CIRCULAR VIBRATORY FINISHERS is an entry-level series of circular vibrators offered in seven configurations with bowl sizes from 100 to 1,200 liters, described as a simple introduction to mass finishing and designed for easy operation. The work bowl has an evenly rising floor, the machines use zero-maintenance vibration flange motors that work at two different speeds, and a pneumatically operated separator flap plus a long separation zone allow gentle separation of workpieces from abrasive media. Benefits and optional equipment listed include an integrated screening unit, pneumatically operated separator flap, zero-maintenance vibration flange motors, two-speed drive, and available accessories such as a sound deadening lid, metering unit, magnetic separator, and vibratory dryer. Technical specifications (selected): - Work bowl gross volume (l): CF 100: 100; CF 200: 200; CF 300: 300; CF 400: 400; CF 600: 600; CF 800: 800; CF 1200: 1,200 - Usable volume* (l): CF 100: 83; CF 200: 125; CF 300: 190; CF 400: 260; CF 600: 345; CF 800: 470; CF 1200: 700 - Largest work piece dimension (mm): CF 100: 160; CF 200: 170; CF 300: 220; CF 400: 260; CF 600: 270; CF 800: 315; CF 1200: 335 - Screen area (cm): CF 100: 1,960; CF 200: 2,190; CF 300: 2,710; CF 400: 3,270; CF 600: 4,000; CF 800: 4,900; CF 1200: 6,300 - Total weight, empty (kg): CF 100: 510; CF 200: 740; CF 300: 1,020; CF 400: 1,190; CF 600: 1,435; CF 800: 2,110; CF 1200: 2,650 - Max. drive power at 1,500 RPM: CF 100: 1,15 kW; CF 200: 2,6 kW; CF 300: 2,6 kW; CF 400: 2,6 kW; CF 600: 4.0 kW; CF 800: 6.0 kW; CF 1200: 8.0 kW - RPM range (RPM)**: CF 100: 1000 / 1500; CF 200: 1000 / 1500; CF 300: 1000 / 1500; CF 400: 1000 / 1500; CF 600: 1000 / 1500; CF 800: 1000 / 1500 - Max. centrifugal force (N): CF 100: 21500; CF 200: 49000; CF 300: 49000; CF 400: 49000; CF 600: 82000; CF 800: 100000; CF 1200: 142000 - Dimensions (in mm) — columns A / C / D / E / F / G: CF 100: 1195 / 224 / 1100 / 1505 / 1195 / 2670; CF 200: 1225 / 238 / 1274 / 1795 / 1350 / 2670; CF 300: 1290 / 285 / 1430 / 2060 / 1460 / 2980; CF 400: 1332 / 326 / 1586 / 2384 / 1700 / 3420; CF 600: 1434 / 363 / 1727 / 2384 / 1700 / 3420; CF 800: 1548 / 396 / 1915 / 2655 / 1910 / 3780; CF 1200: 1737 / 445 / 2124 / 2787 / 2120 / 4110 The series is presented as an entry-level, simple introduction to mass finishing processes. Application examples provided are derusting workpieces, polishing cooking pot handles, ball polishing of die-cast parts, and grinding and smoothing turbine blades.
