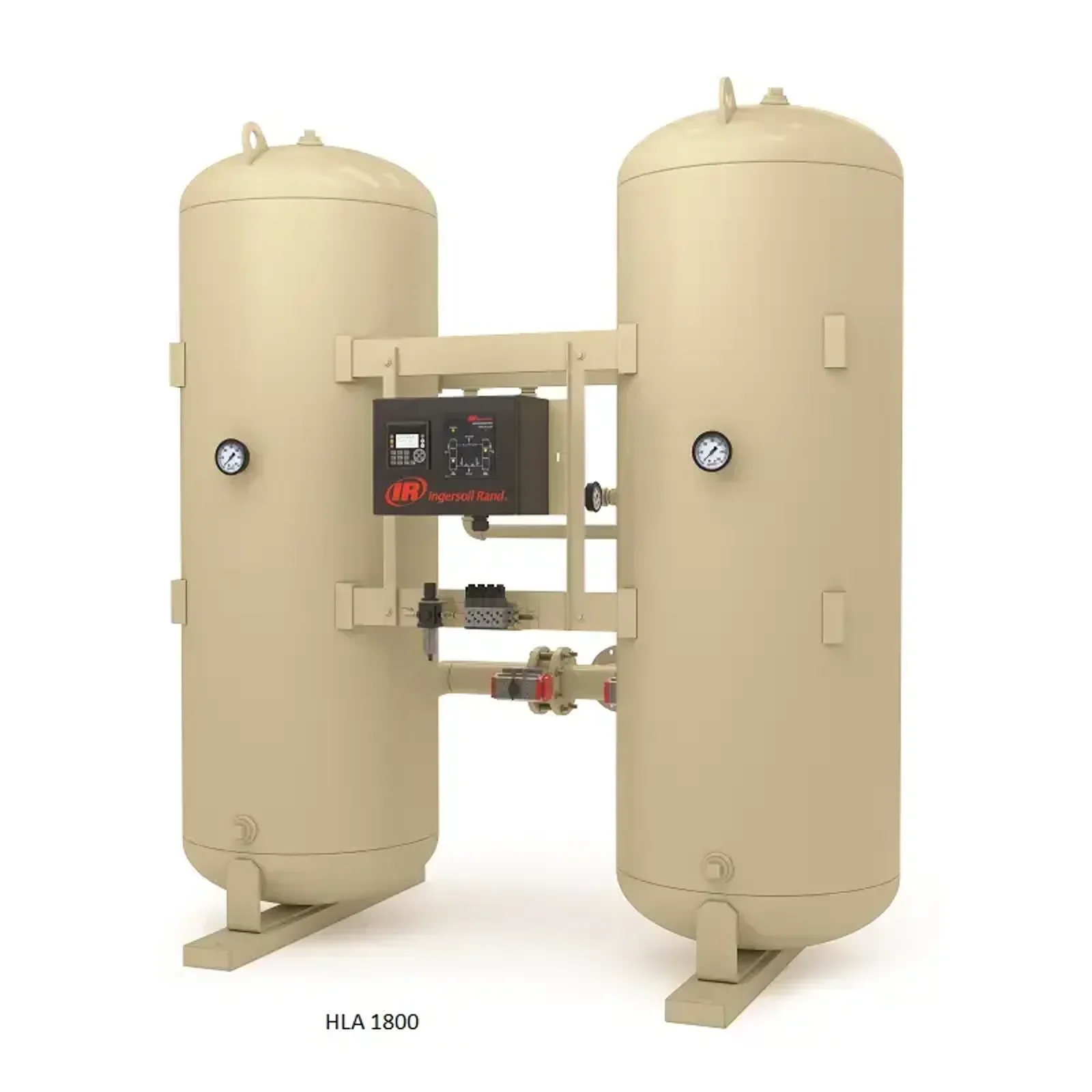

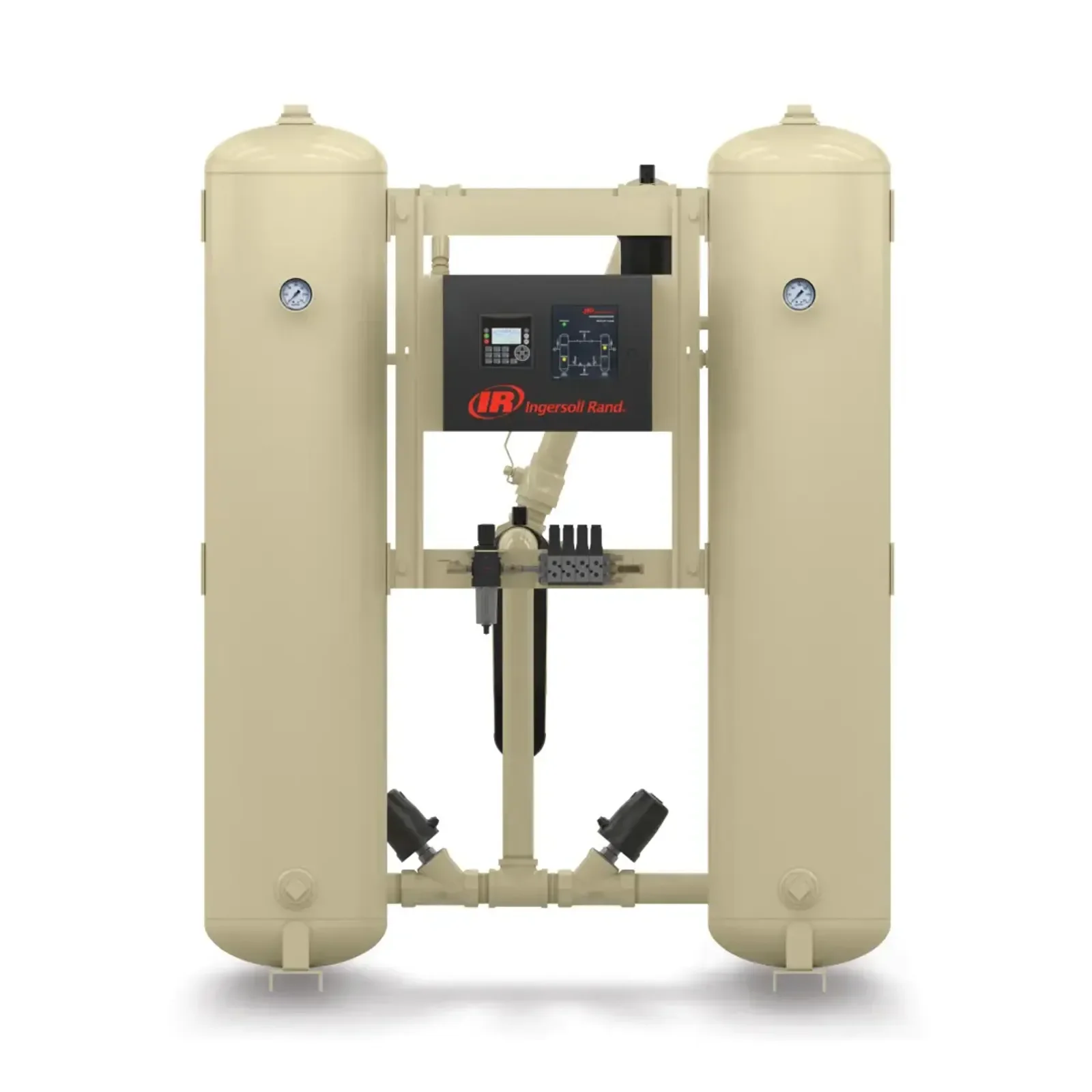

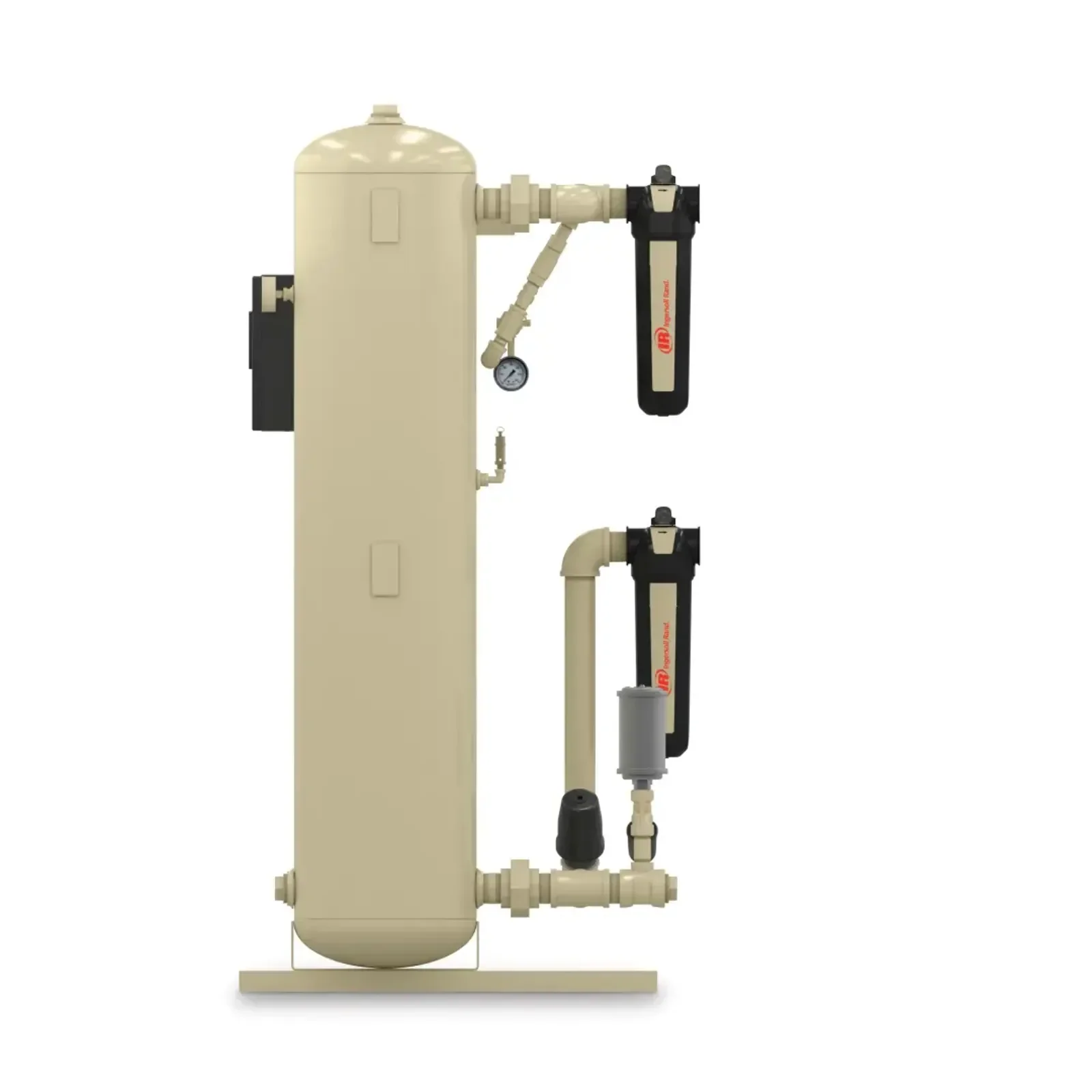

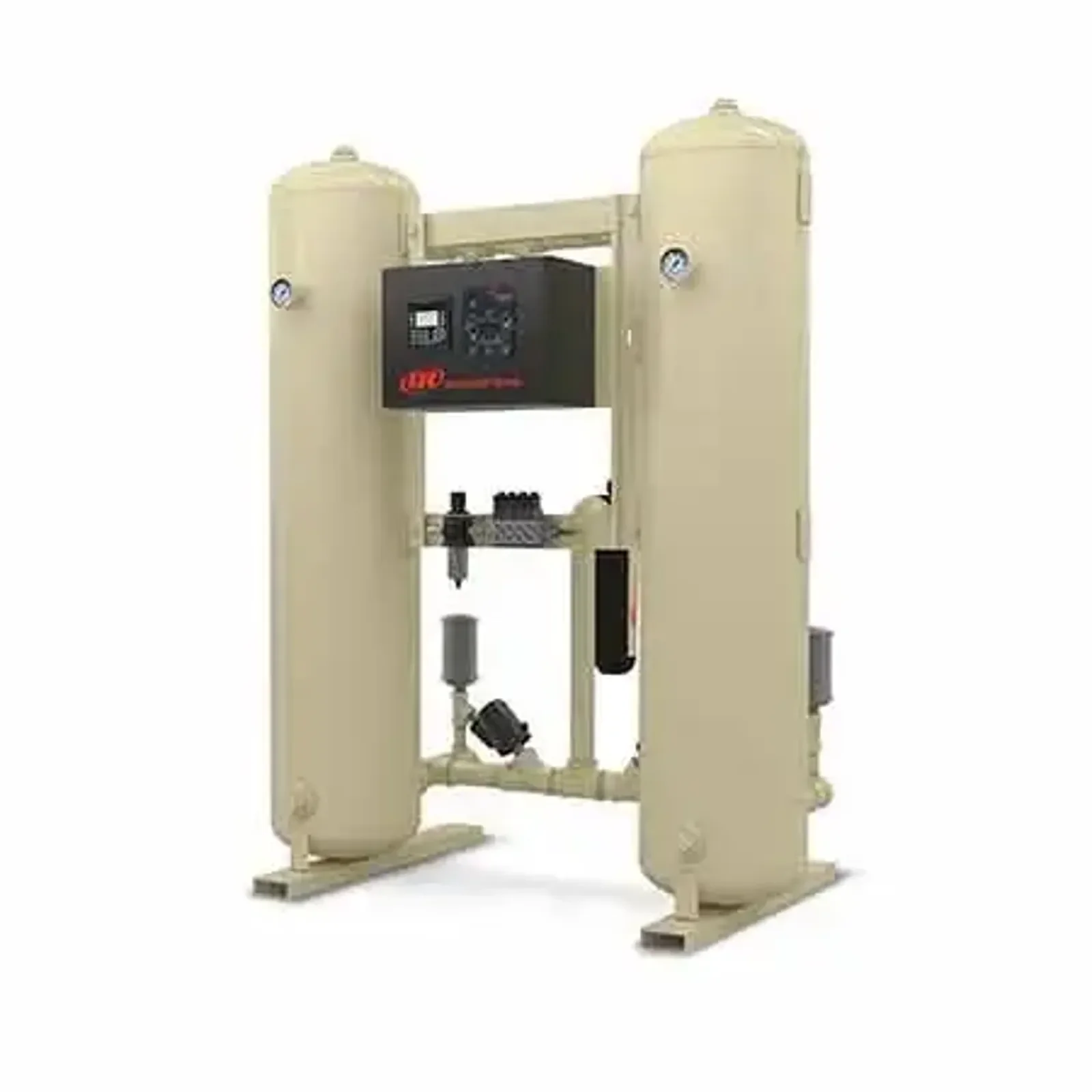

HLA Heatless Desiccant Dryers 2.5-141.6 m3/min, 90-5,000 cfm

Overview

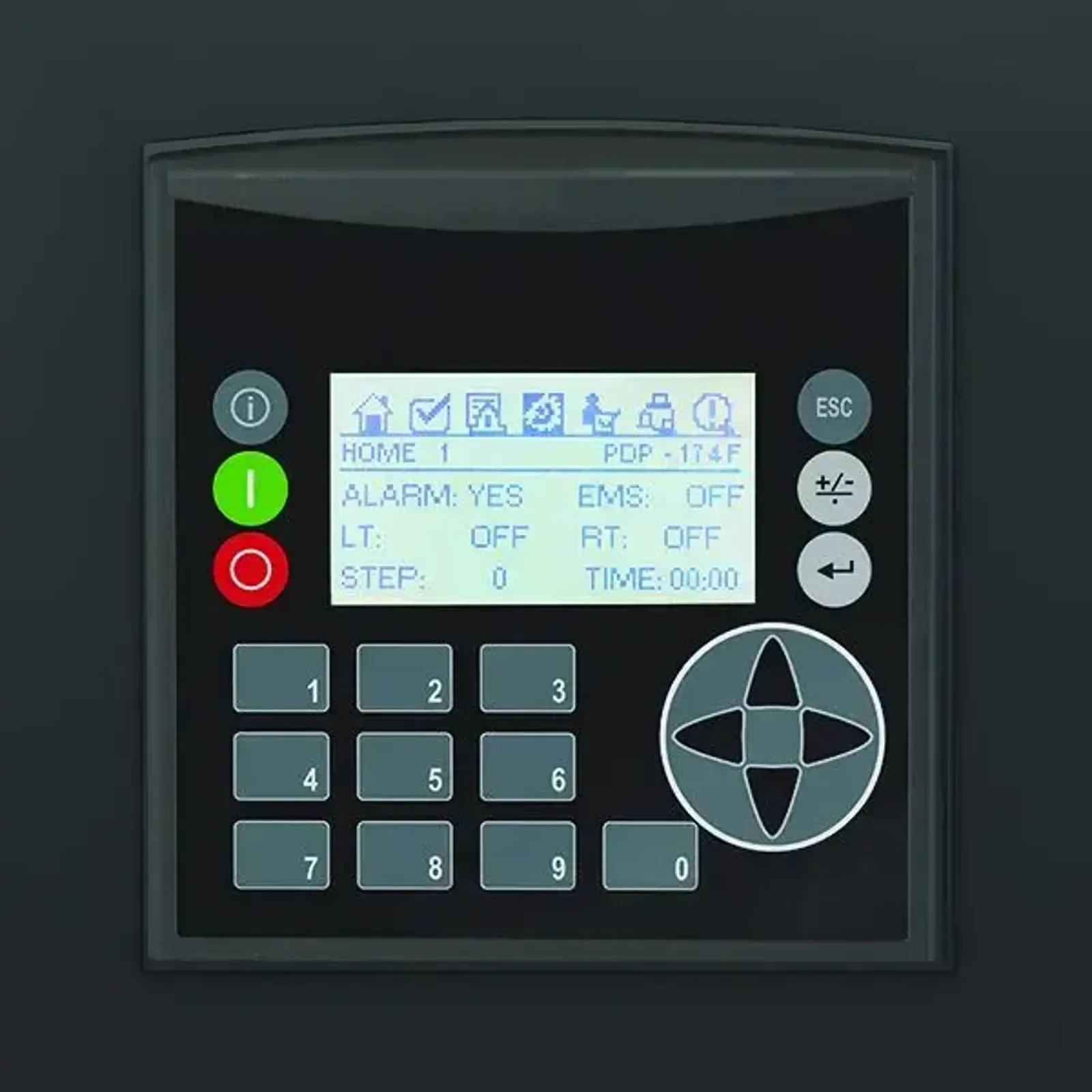

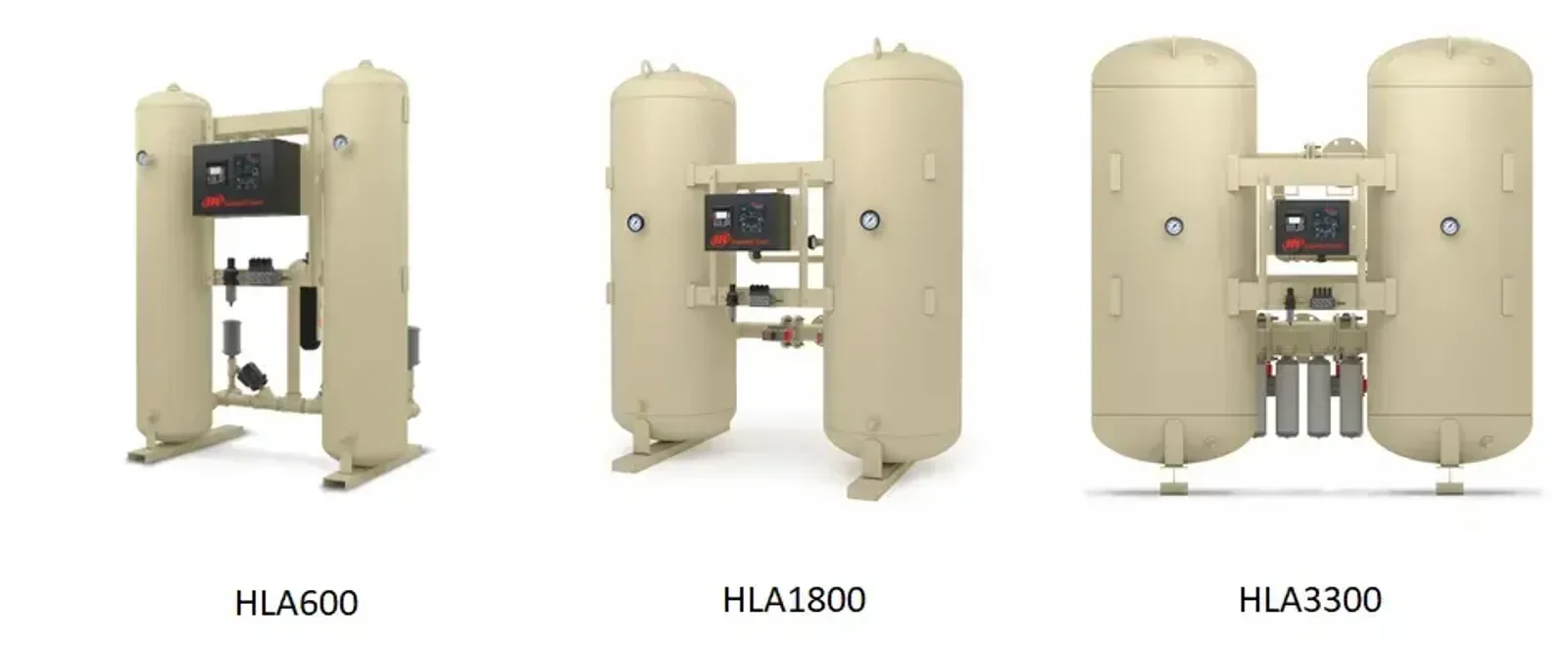

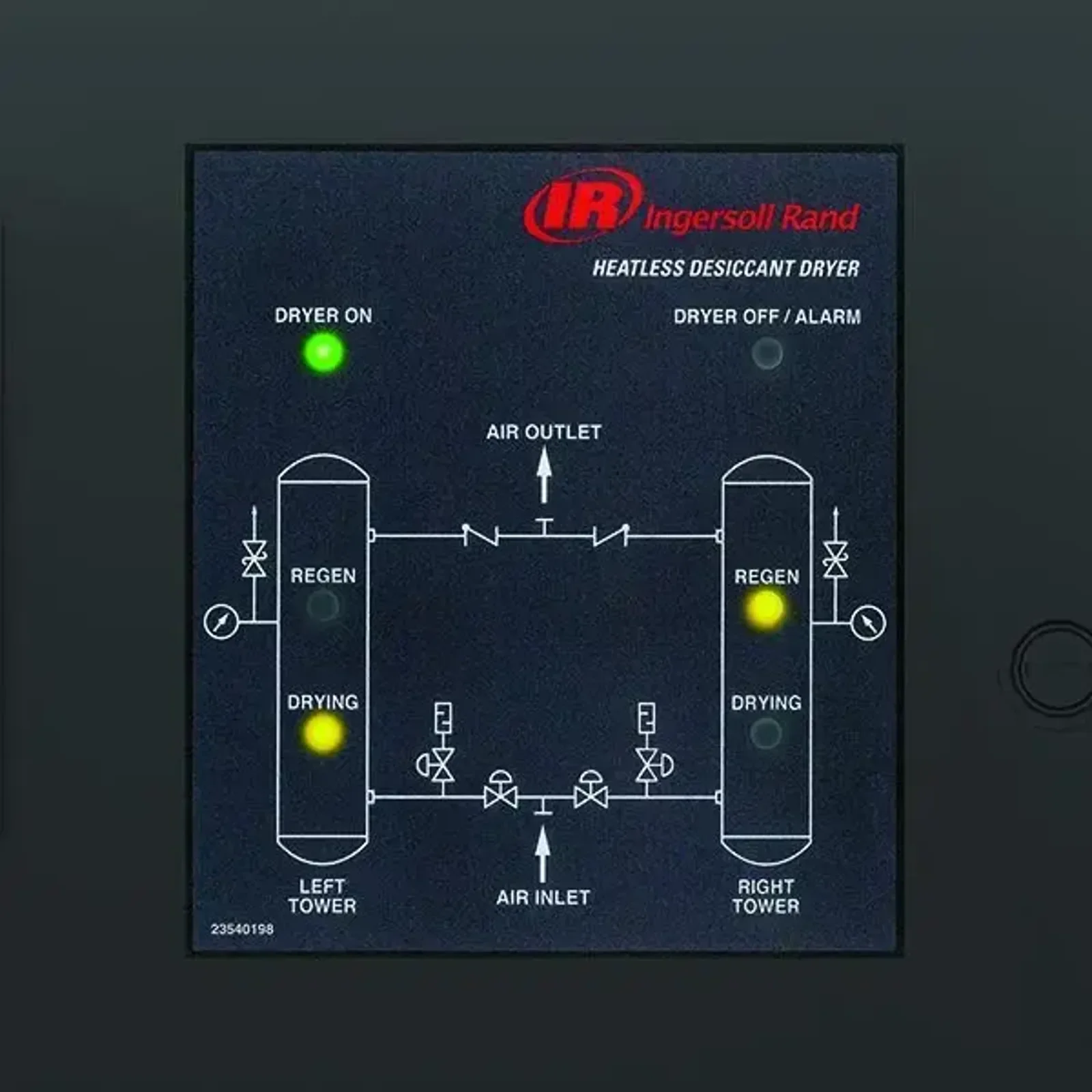

HLA heatless desiccant air dryers are designed to increase reliability and efficiency for consistent delivery of clean, dry compressed air. They use a reliable, high strength, non-acidic desiccant described as environmentally friendly. Features listed include a low profile design for placement in areas with low overhead clearances; rear-mounted inlet and outlet manifolds for convenient access to valves and components; a standard NEMA 4 electrical panel for moisture-prone or hose-down applications; an enhanced controller providing precise pneumatic valve sequencing, automatic maintenance reminders and an easy to read status panel under all lighting conditions; and long-life stainless steel switching and purge valves with ceramic seats and an extended service interval. Capacity Range: 2.5-141.6 m3/min, 90-5,000 cfm. Model specifications are provided for models HLA90 through HLA5000 and include Capacity (-40°C (-40°F) Dew Point) nm3/min / scfm, In/Out Connection, Width mm/in, Depth mm/in, Height mm/in and Weight kg/lb as listed in the product table. The HLA heatless desiccant dryers are intended to provide consistent delivery of clean, dry compressed air. The low profile design permits placement in areas with low overhead clearances. The standard NEMA 4 electrical panel indicates suitability for moisture-prone or hose-down industrial applications.
