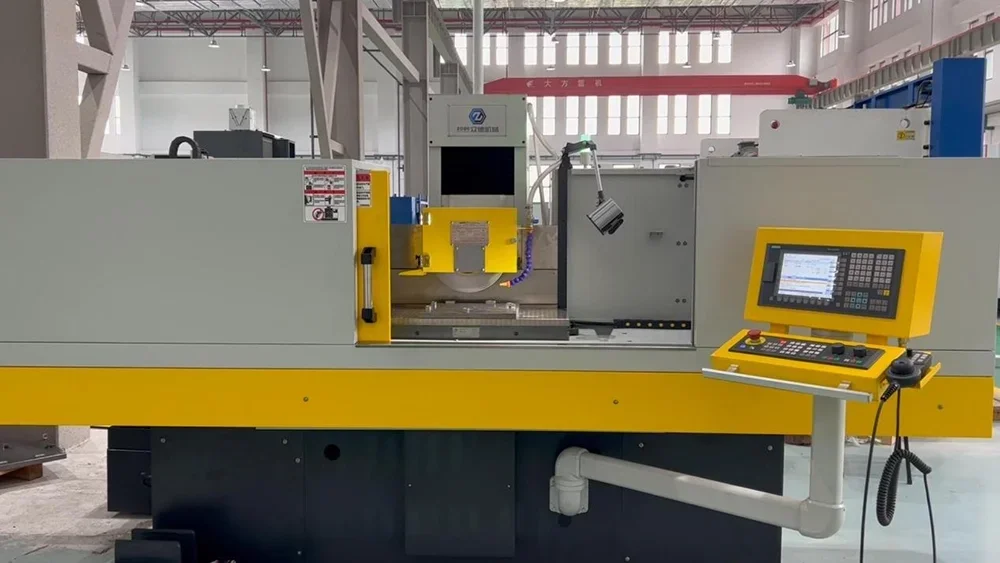

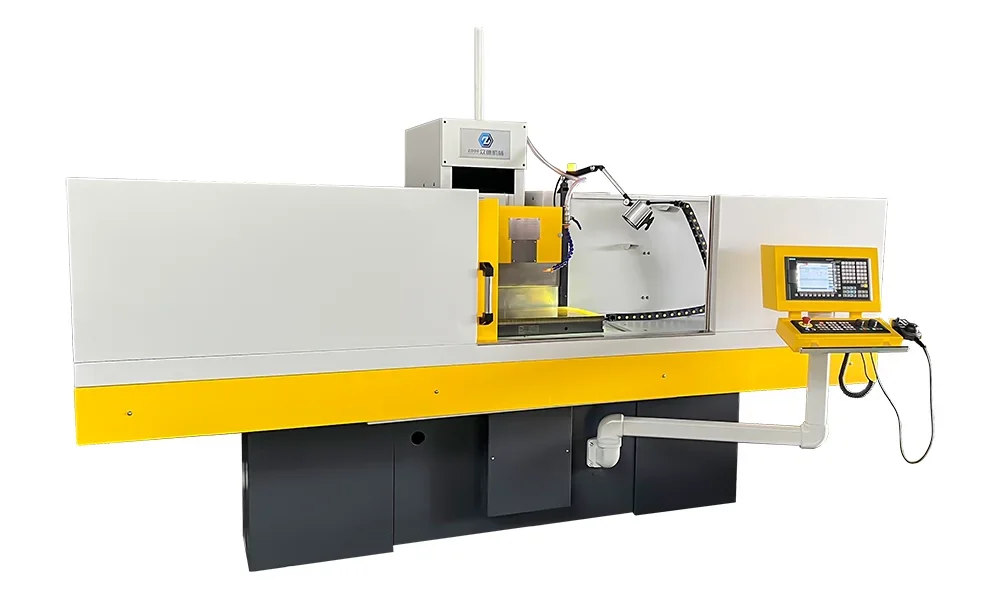

400*600mm 3 AXES CNC SURFACE GRINDING MACHINE SG640CNC-3

Overview

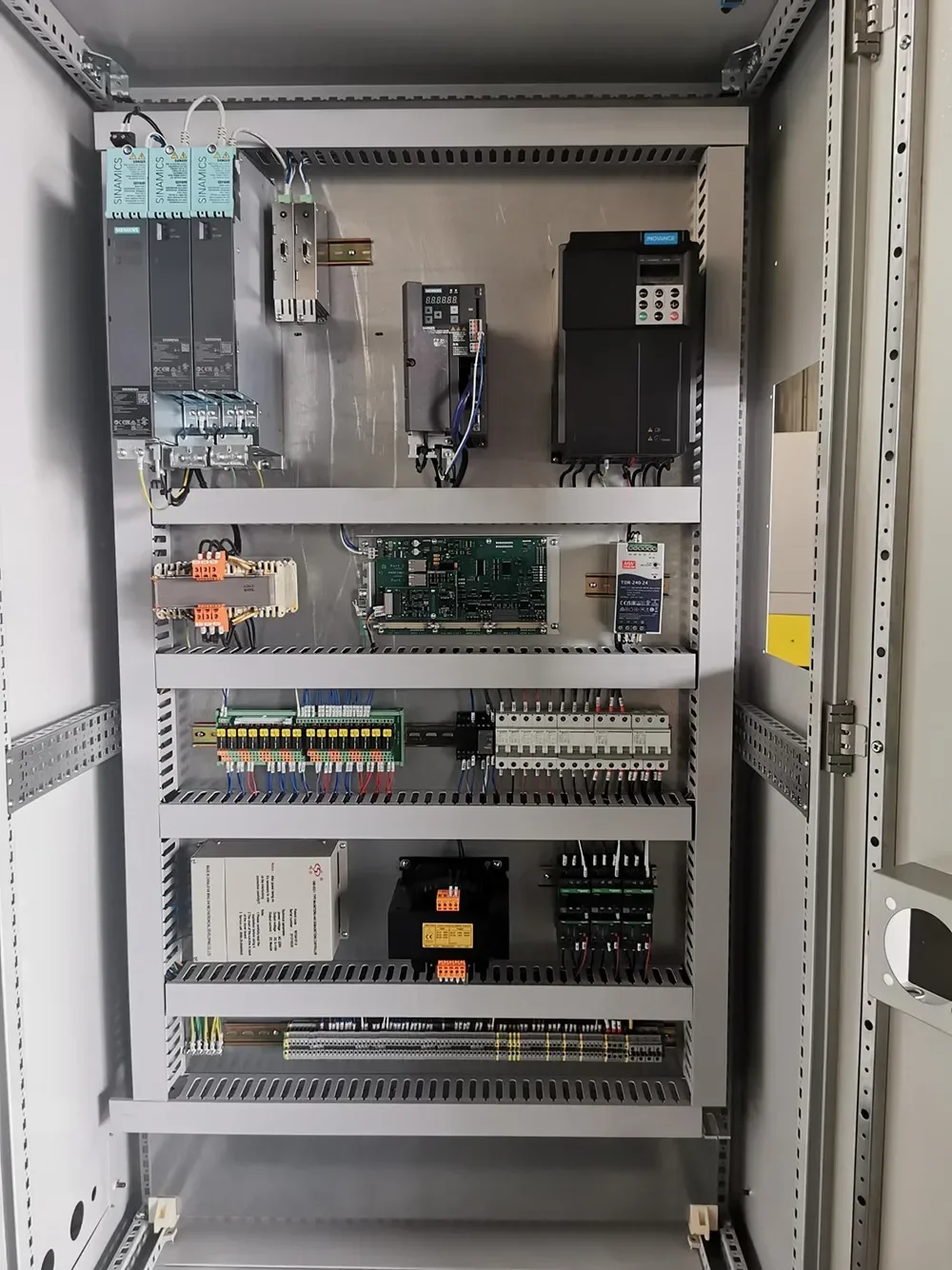

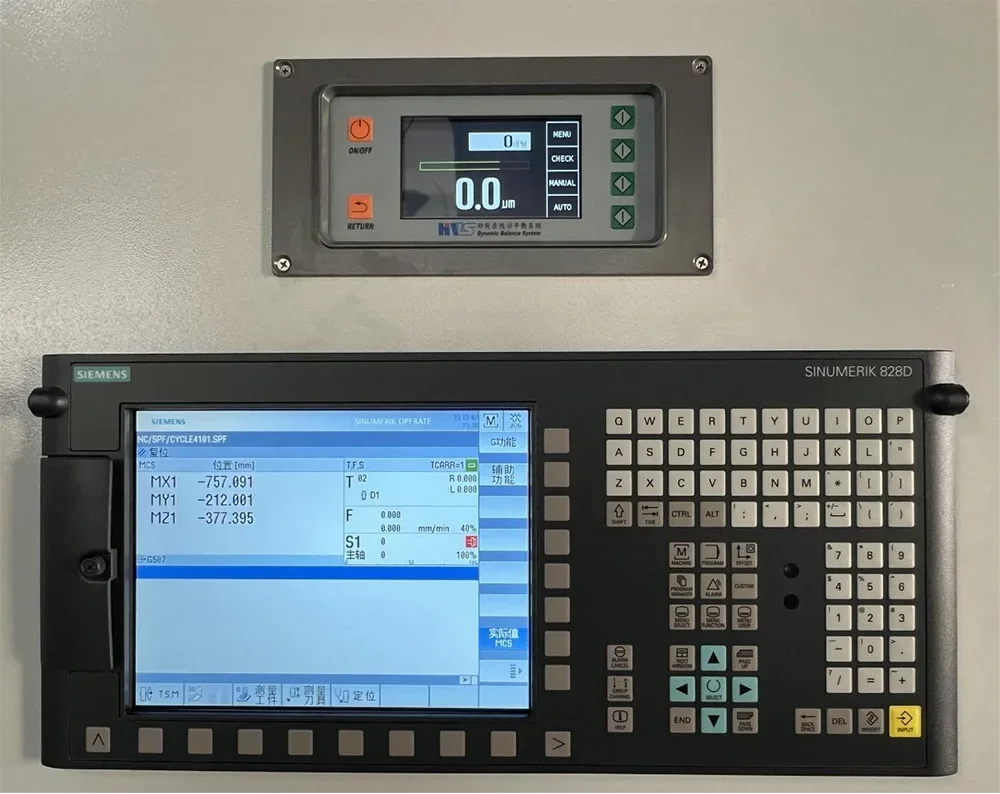

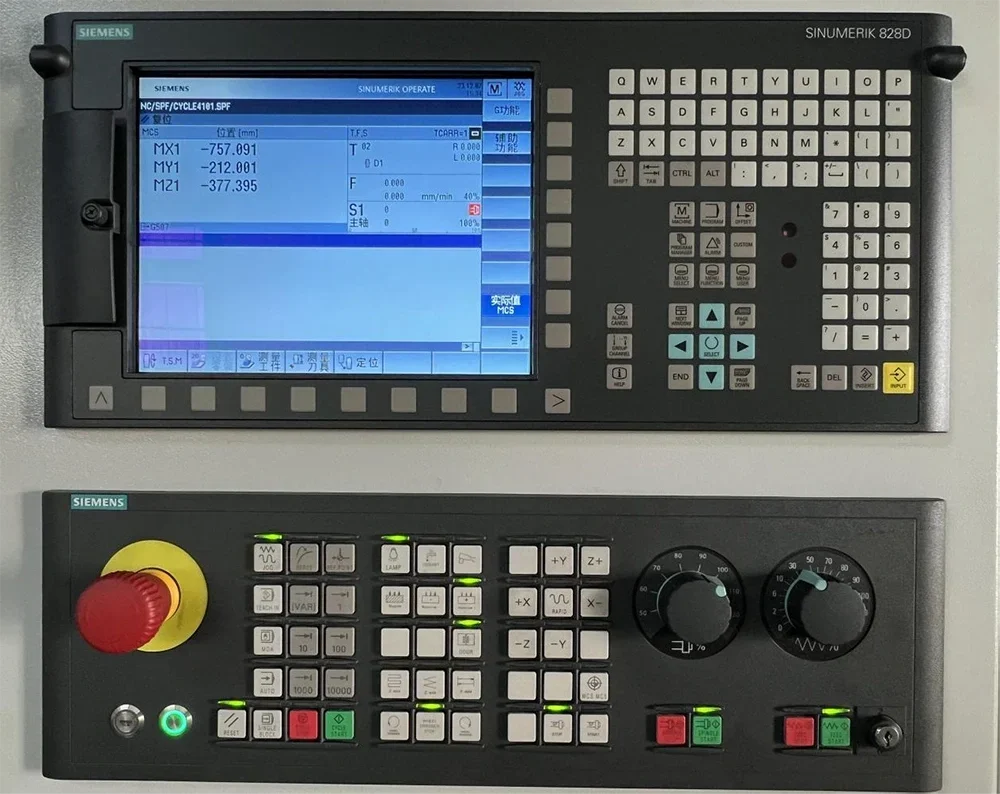

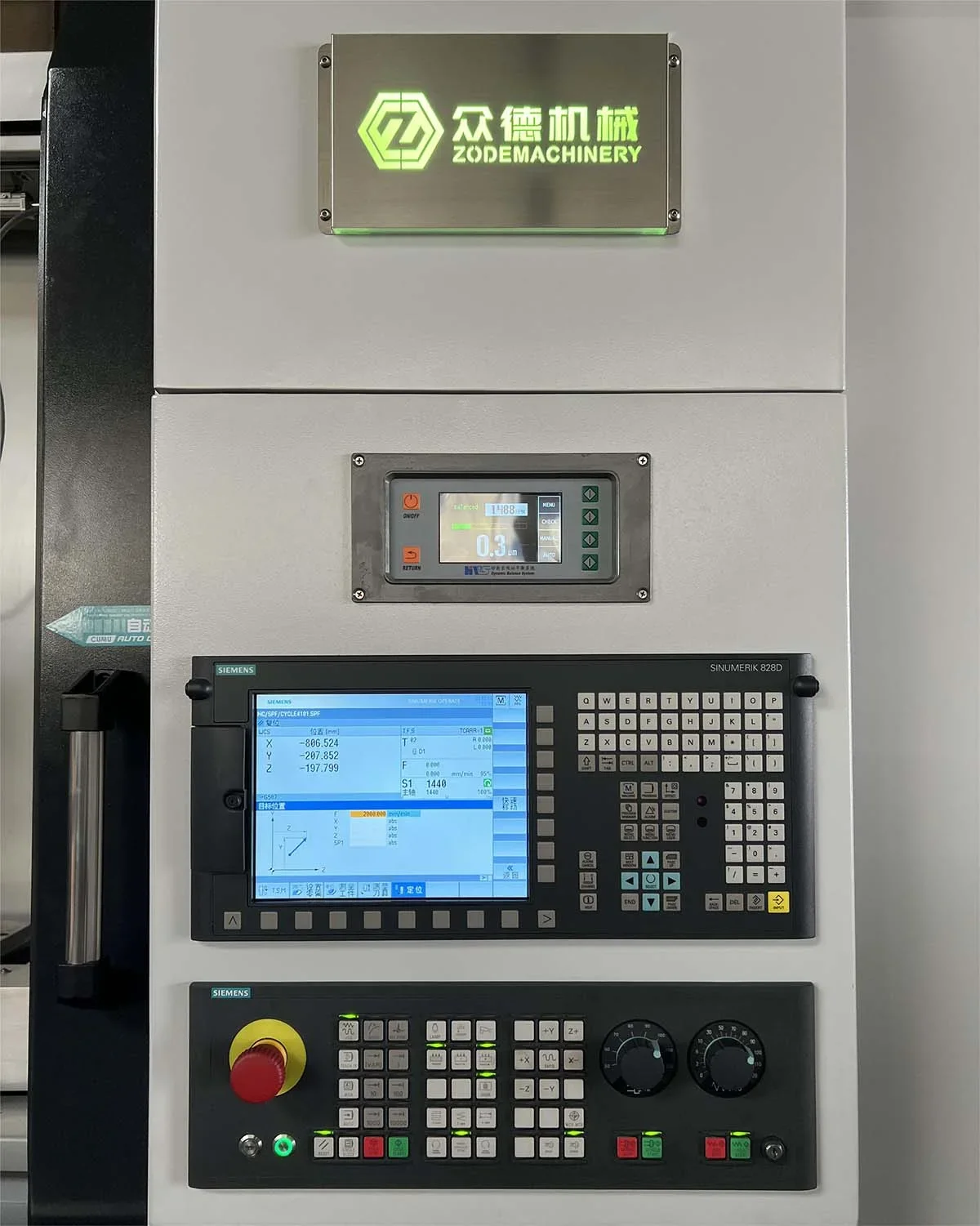

400*600mm 3 AXES CNC SURFACE GRINDING MACHINE SG640CNC-3 is an automatic, high precision metal and ceramics flat surface grinder with CE and ISO 9001 certification and condition New. Grinding square meter 400*600 mm, table size 400*600mm and table load 600 kg; max. table travel 650 mm; max. cross travel 400 mm; distance table to grinding spindle 140~525 mm. Table speed 1~16 m/min; vertical speed 1~4500 mm/min; cross speed 1~4500 mm/min; min down feedrate 0.001 mm; min cross feedrate 0.001 mm; table speed control Remote Control Valve; total power 9kw; floor space 3600*3000mm; specification 3600*2250*2200mm. X, Y and Z axis use Siemens Servo Motor with 1 kw power each; X axis screw P3 Grade, vertical screw P2 Grade and cross feed screw P3 Grade; CNC Controller Siemens 828d and Siemens PLC; spindle motor 4 kw (ABB/Siemens) with spindle speed 1000~3000 rpm and NSK P4 Grade spindle bearing; grinding wheel dimensions 350*40*127 mm; main electrics Schneider Electrics; transport package Wooden Case; origin China; trademark ZODE; HS Code 8460191000. Standard accessories include Grinding wheel, Wheel flange, Wheel balancing base, Wheel balancing arbor, Extractor, Diamond dresser, Leveling pad, Anchor bolt, Tool box with tools and Electricmagneticchuck. Features include CNC expandability to 2-axis and 3-axis CNC profile forming grinding, automatic grinding wheel dressing during automatic cycles, and a movable column mechanical mechanism with strong rigidity for large work piece processing. Applicable to all kinds of processing machinery, auto parts, fixture, magnetic steel, mould parts processing industry. The machine tool can grind steel, iron, ceramics and non-ferrous metal parts.
