RCF — flexible linear Multi-Machine Automation

Overview

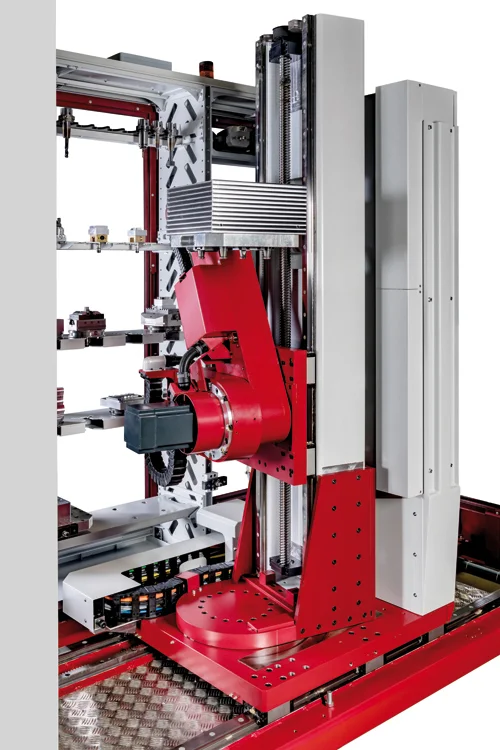

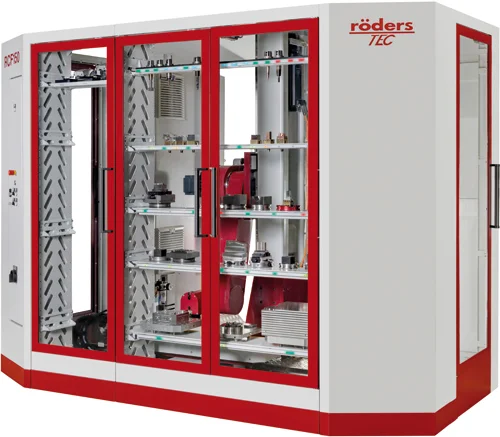

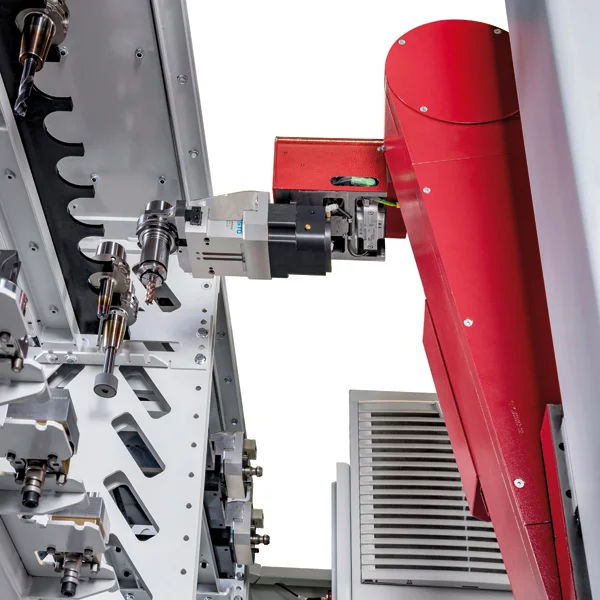

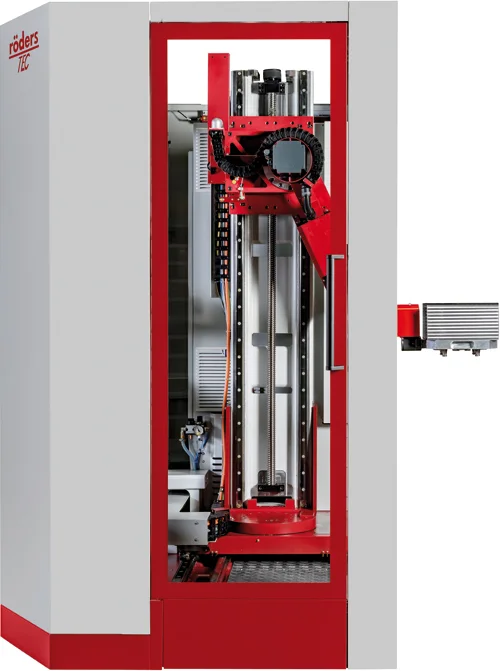

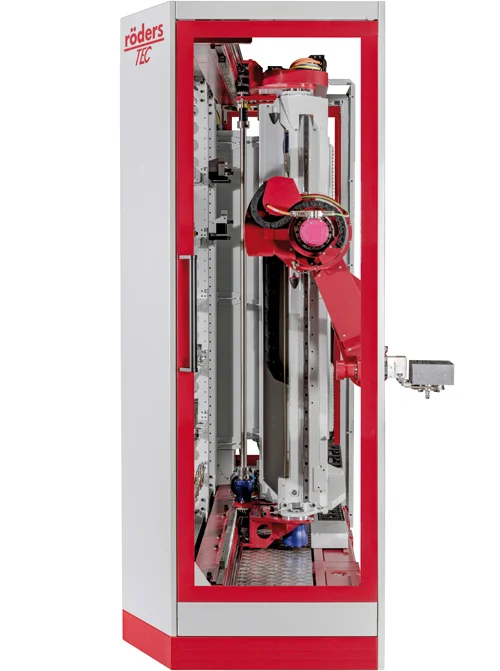

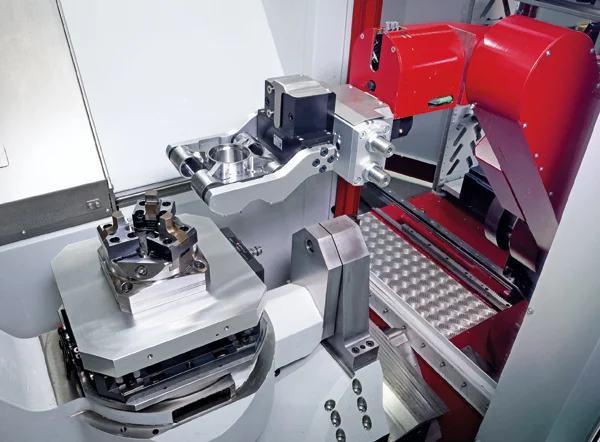

RCF — flexible linear Multi-Machine Automation is a linear handling device for single- or multi-machine automation. It is 1.5 m / 1.0 m wide including the shelving system and features a modular, expandable construction that significantly reduces installation times and costs. Machines can be arranged along one side and at the front. The system is highly rigid and therefore highly dynamic with short changeover times, and chip identification of the pallets and LED status display are available. The system is driven by job management software on a separate computer; for automation of only one machine the software can optionally be installed on the machine control. - RCF150 — Max. Workpiece weight: 150 kg; Width: 1.5 m; Max. Workpiece dimensions: diameter 320 mm or 320 mm x 320 mm (others on request); Largest pallet: Erowa UPC / System 3R Dynafix; Z-travel for shelves: 1750 mm; Magazine width (per shelf): 1400 mm / 680 mm; Gripper change: yes; External tools: yes; Loading station: yes. - RCF30 — Max. Workpiece weight: 30 kg; Width: 1.0 m; Max. Workpiece dimensions: diameter 180 mm or 125 x 125 mm (others on request); Largest pallet: Erowa ITS 148 / System 3R Macro Magnum; Z-travel for shelves: 1600 mm; Magazine width (per shelf): 1400 mm / 640 mm; Gripper change: yes; External tools: yes; Loading station: no. Use cases explicitly supported by the description include automation of single machines or multiple machines in a linear arrangement with machines positioned along one side or at the front. The system supports workpiece and tool handling, including direct clamping of workpieces or on pallets and mixed operation, and it provides gripper change capability and support for external tools; the RCF150 includes a loading station while the RCF30 does not. Control is provided by job management software on a separate computer, with the option to install the software on the machine control for automation of a single machine.
