VR100-1P-TV-AW

Overview

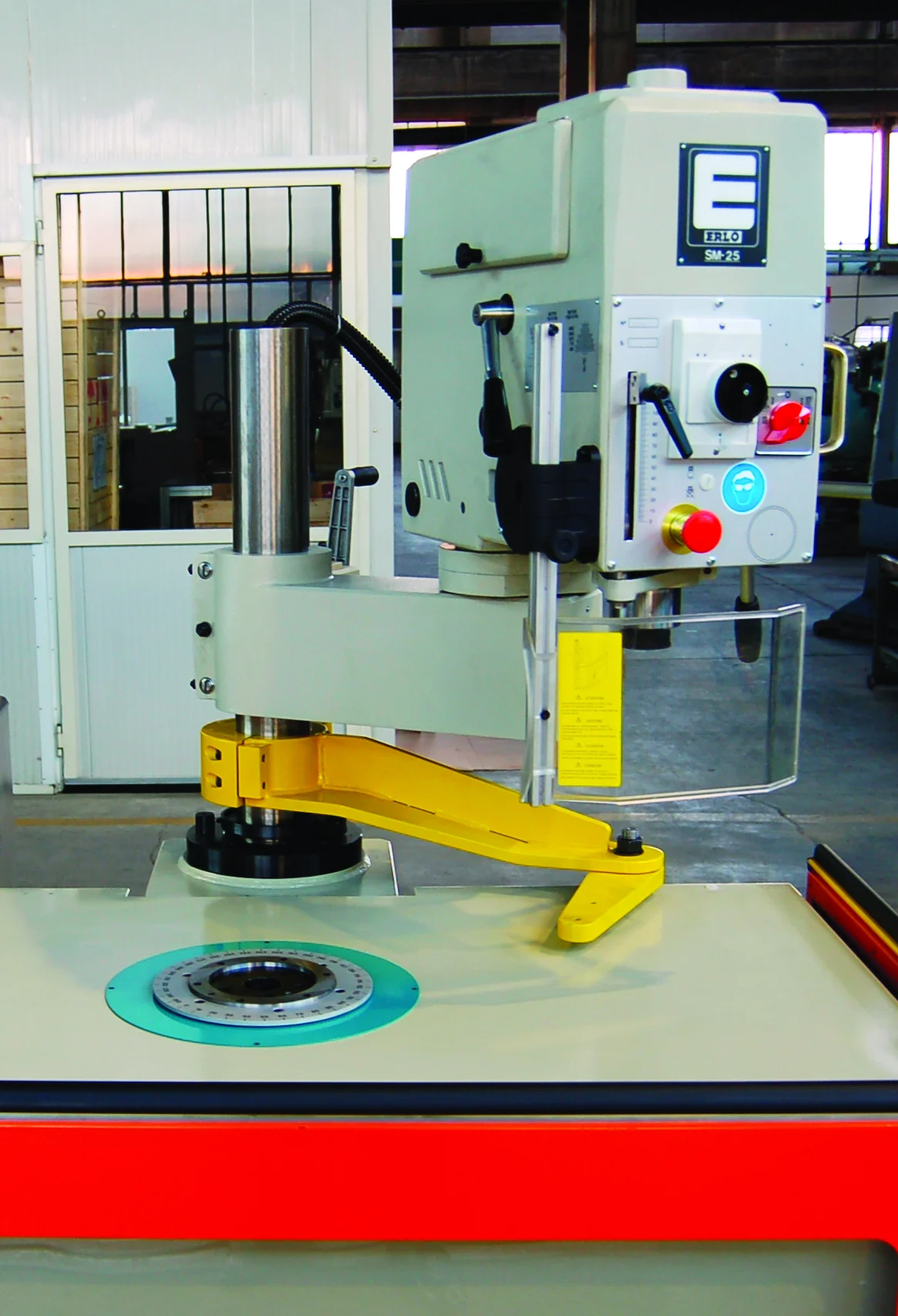

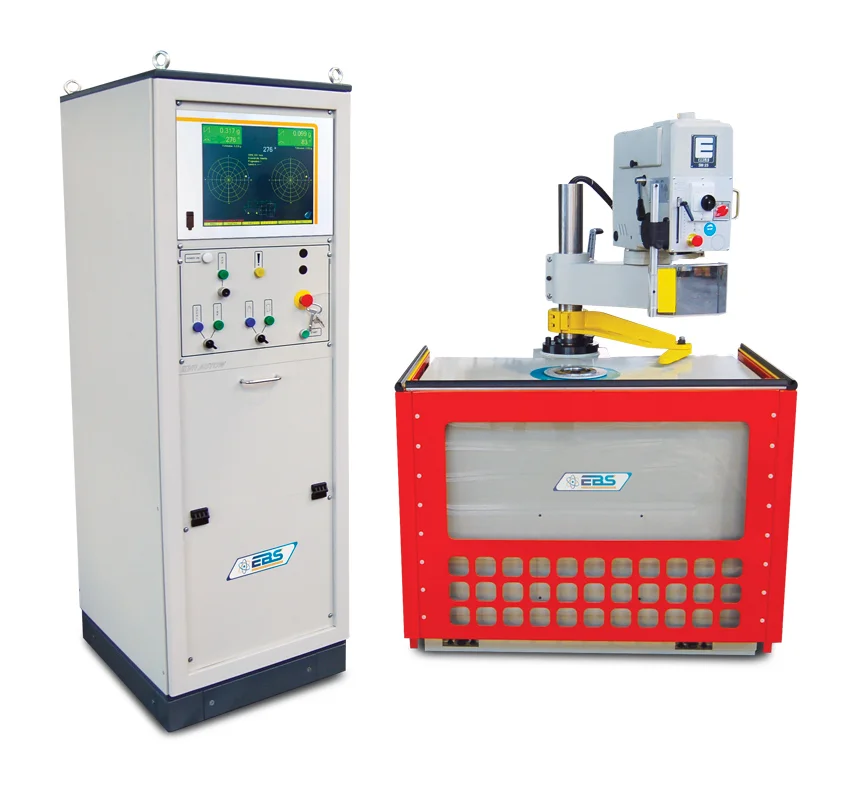

Model VR100-1P-TV-AW (SKU: VR100-1P-AW) is a vertical balancing machine with a maximum rotor weight of From 1 to 100 kg. It is equipped with automatic angular positioning and a manual vertical drilling unit for correction of imbalance directly on the machine. The drilling unit is mounted on a "floating" support that compensates its weight to avoid unwanted forces on the measurement spindle. The machine includes a high-sensitivity touch monitor EQ21S-TS and is fitted with safety protections. Technical specifications: Maximum diameter 600 mm; Maximum height 300 mm; Balancing speed 750 RPM; Drive motor power 5.5 kW; Measure uncertainty (1 plane) 20 g mm; Measure uncertainty (2 planes) 40 g mm; Maximum inertia 4.5 kg m². Performs vertical balancing of rotors with weights From 1 to 100 kg and dimensions up to 600 mm diameter and 300 mm height. It enables imbalance correction directly on the machine using the manual vertical/horizontal drilling unit, with the floating support reducing unwanted forces on the measurement spindle. Operator interaction and positioning are supported via automatic angular positioning and the EQ21S-TS touch monitor, and a printer accessory can create the balancing certificate.
