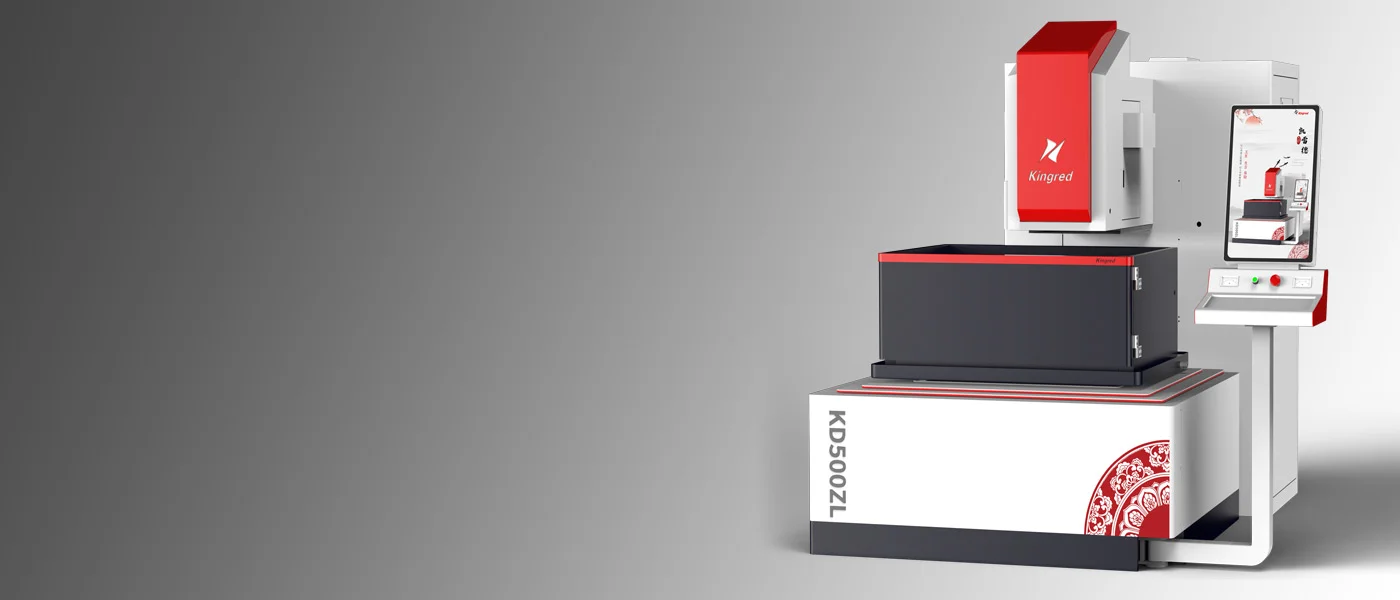

Kingred Brand Wire Cut EDM KD500ZL

Overview

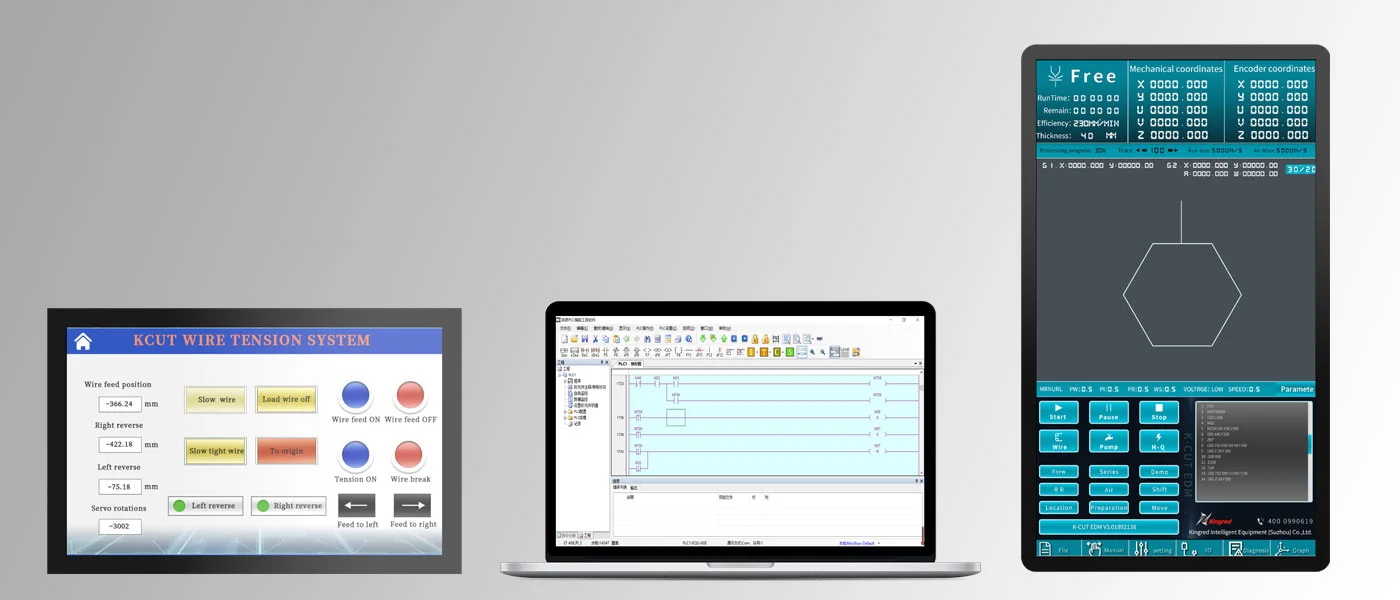

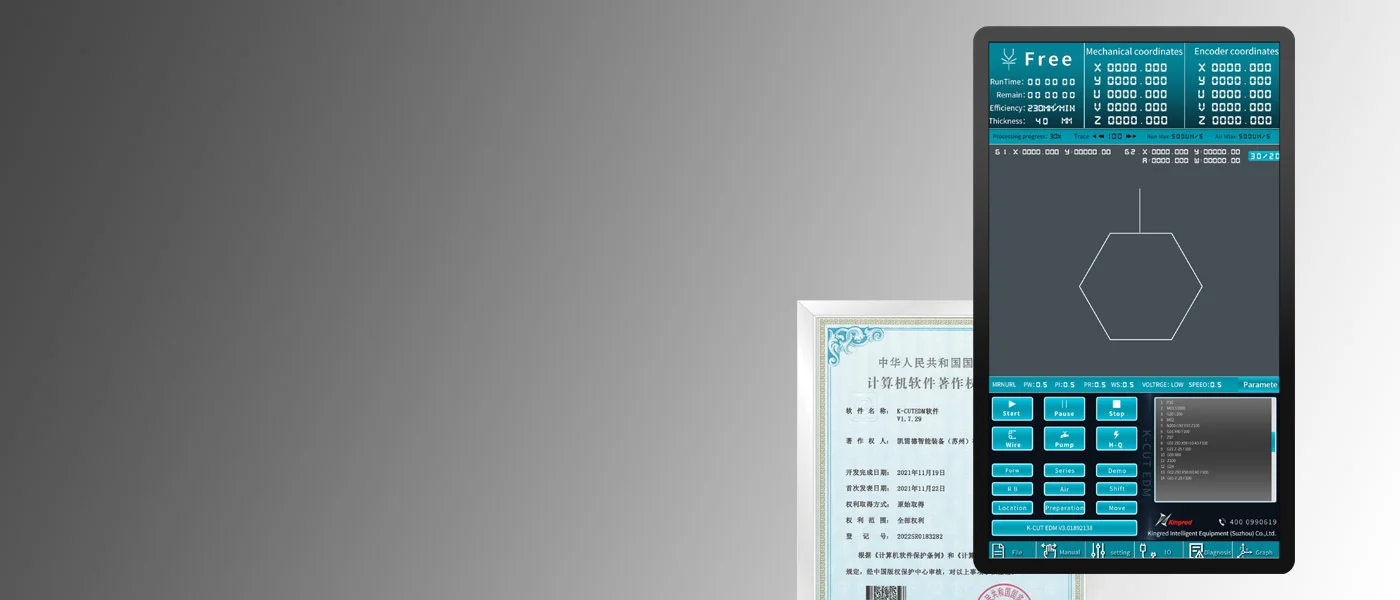

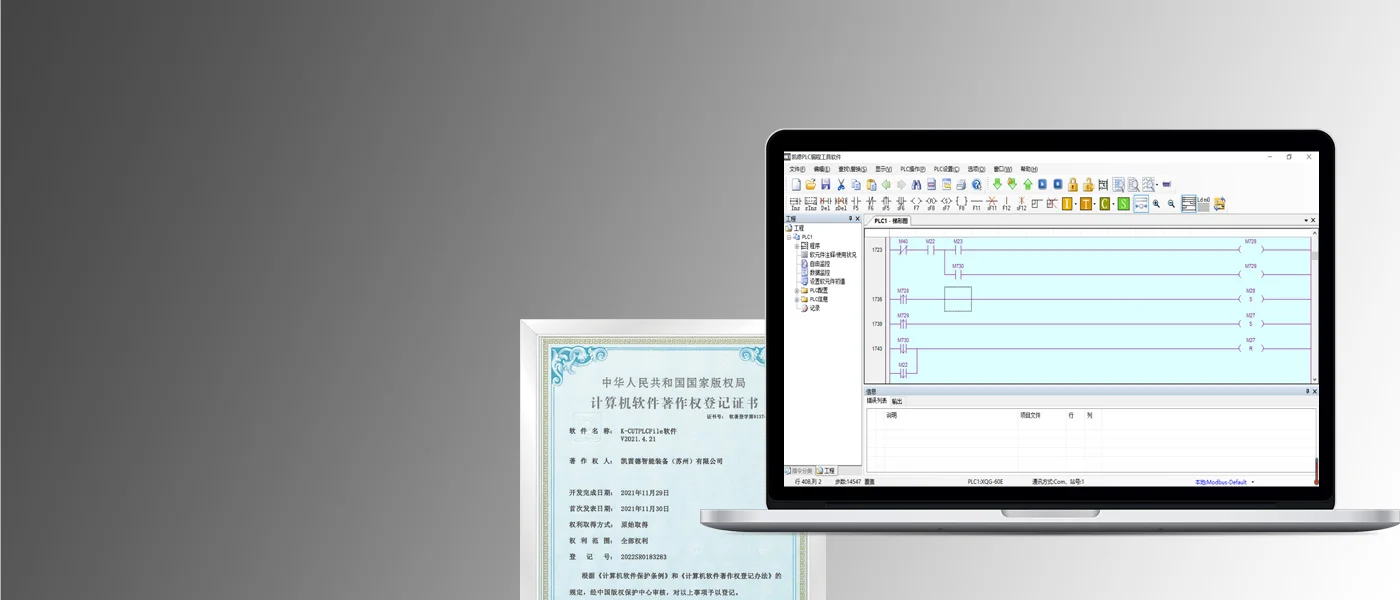

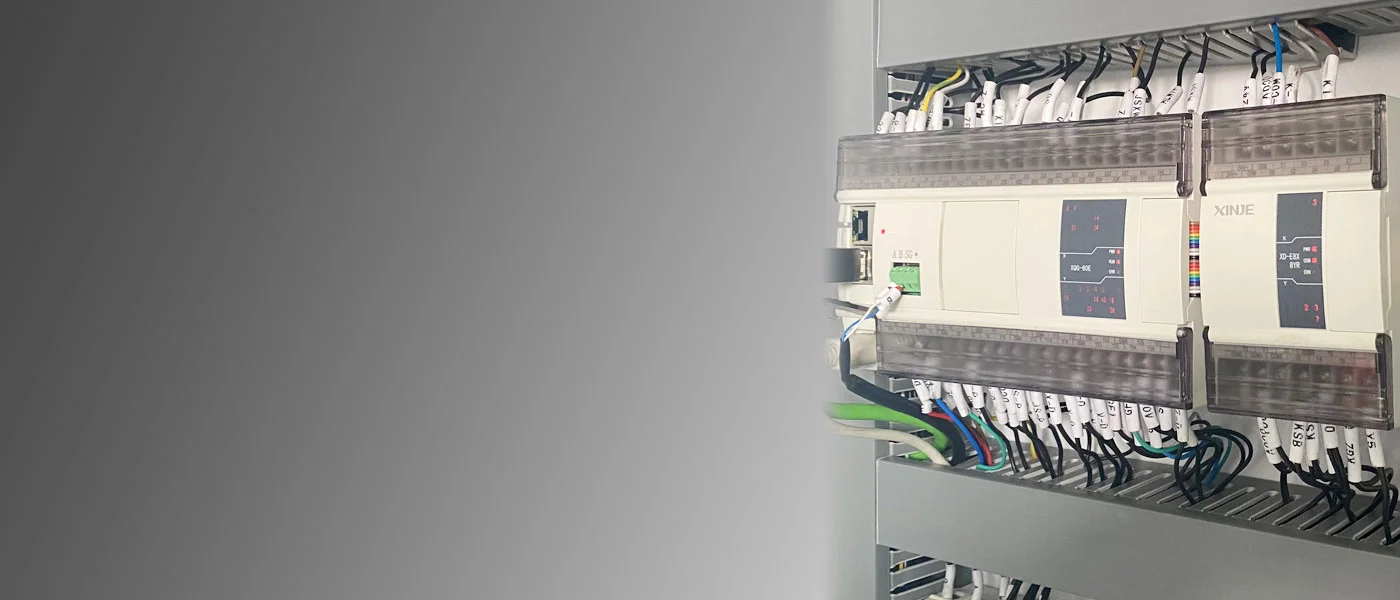

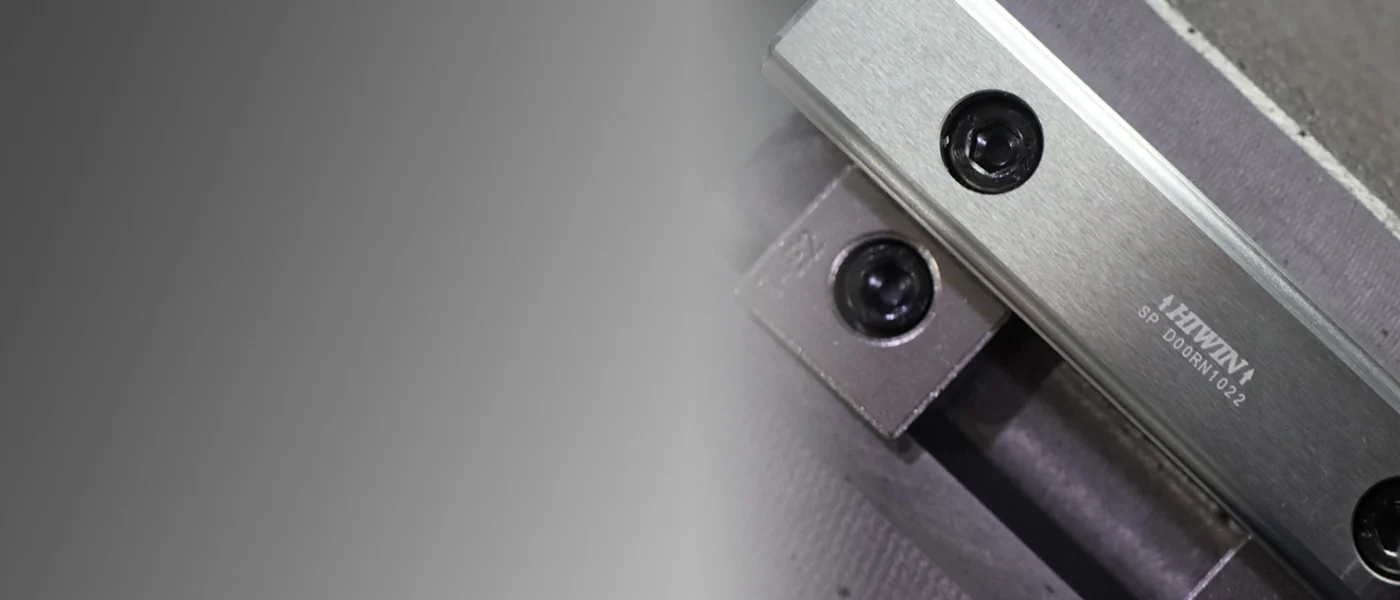

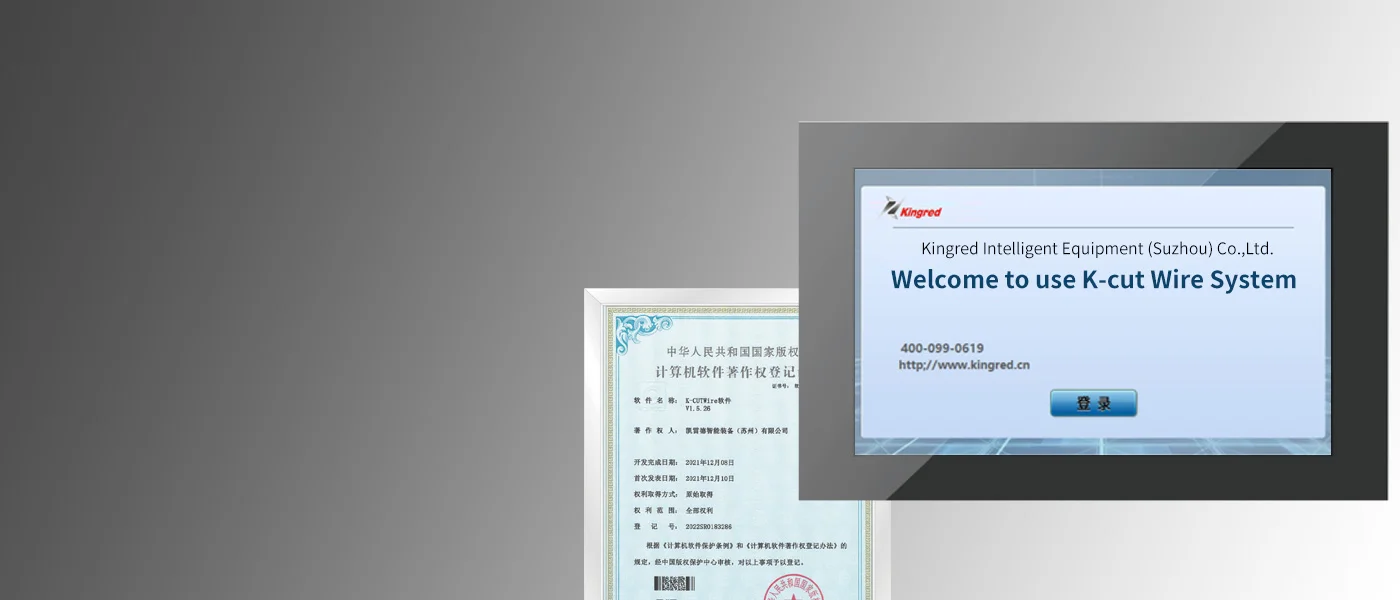

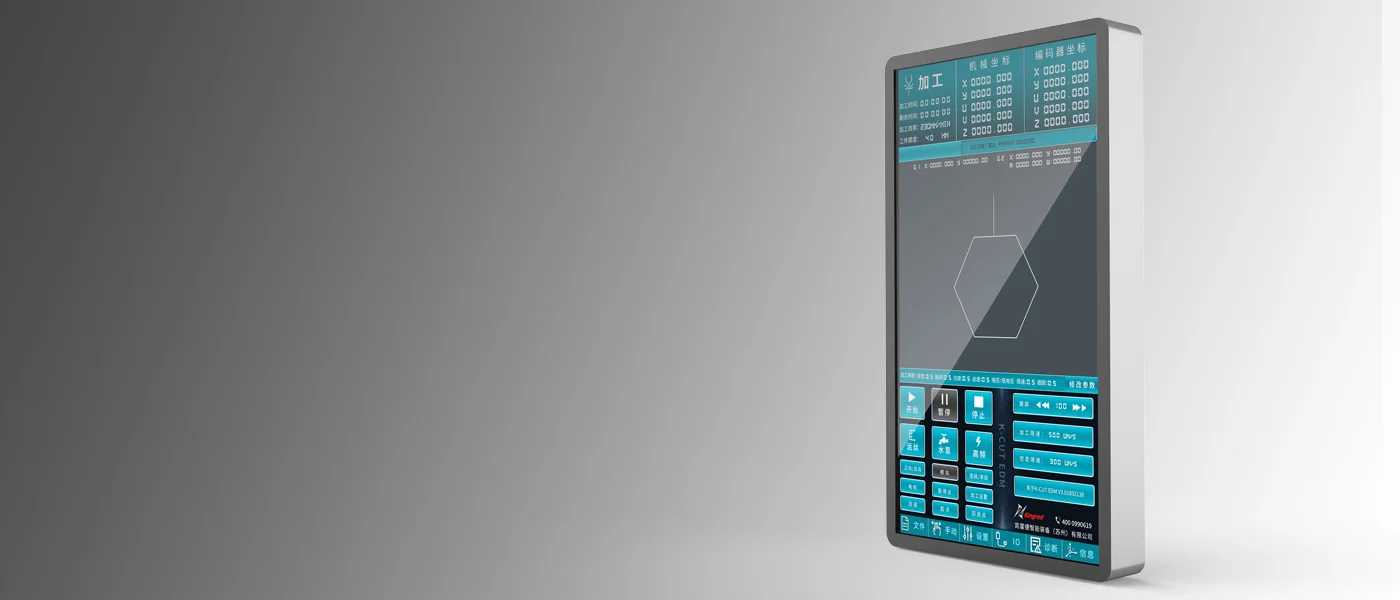

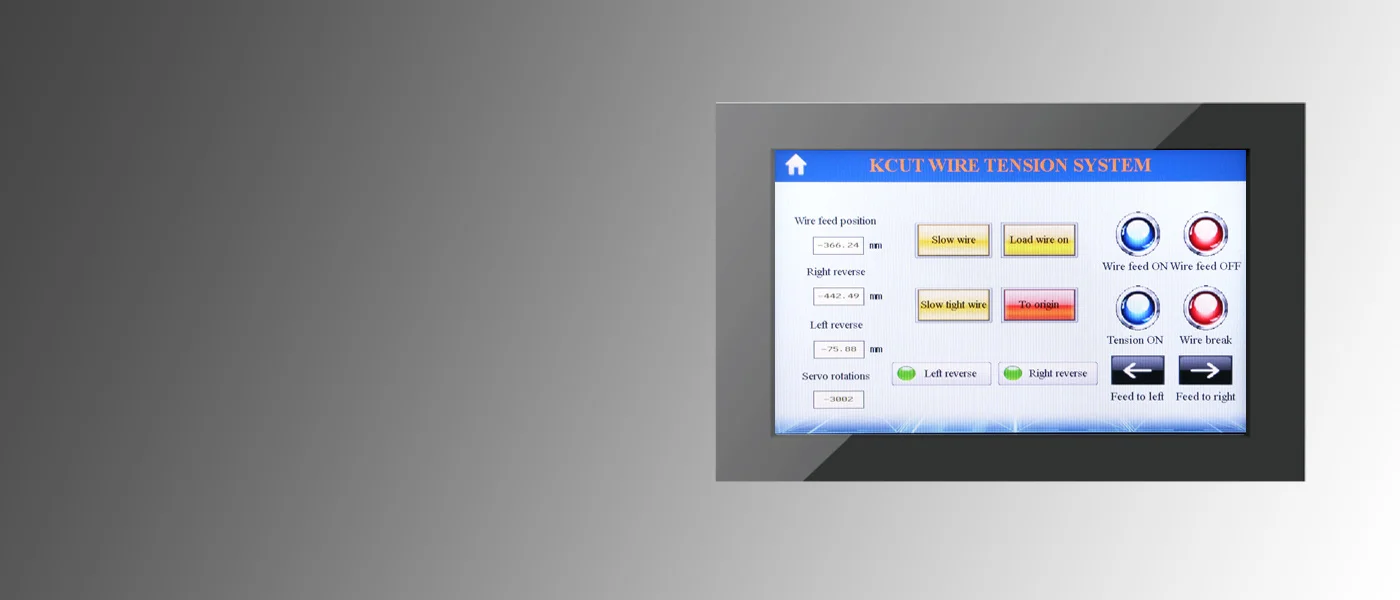

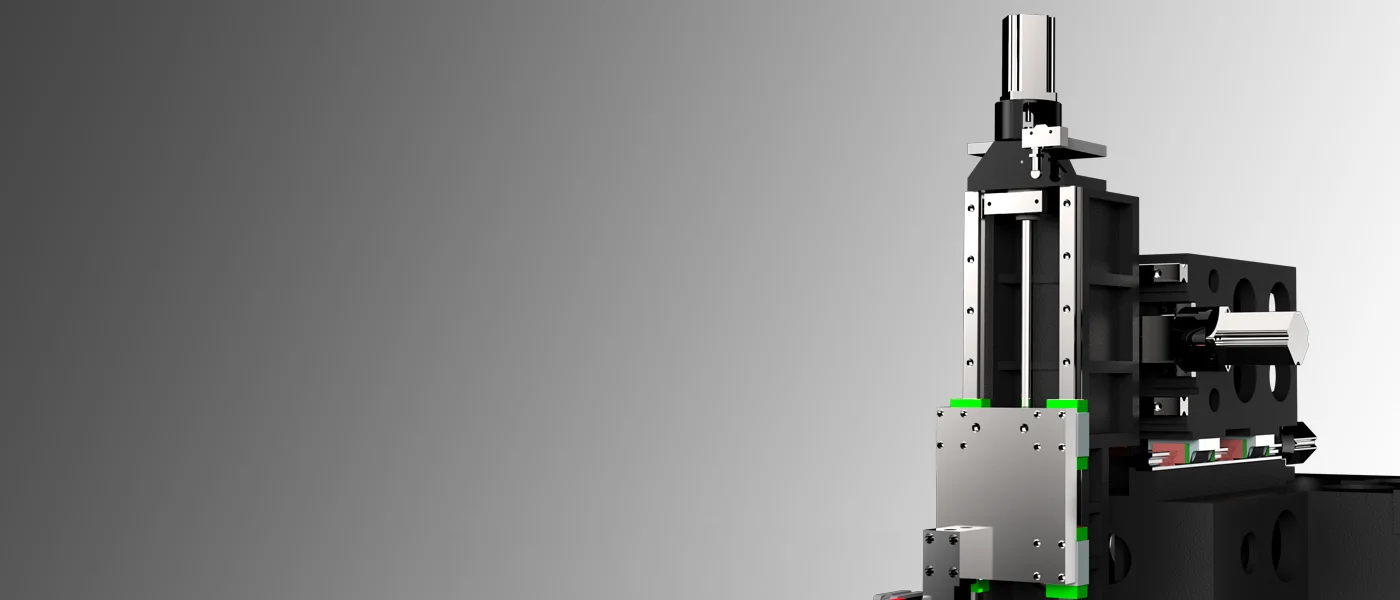

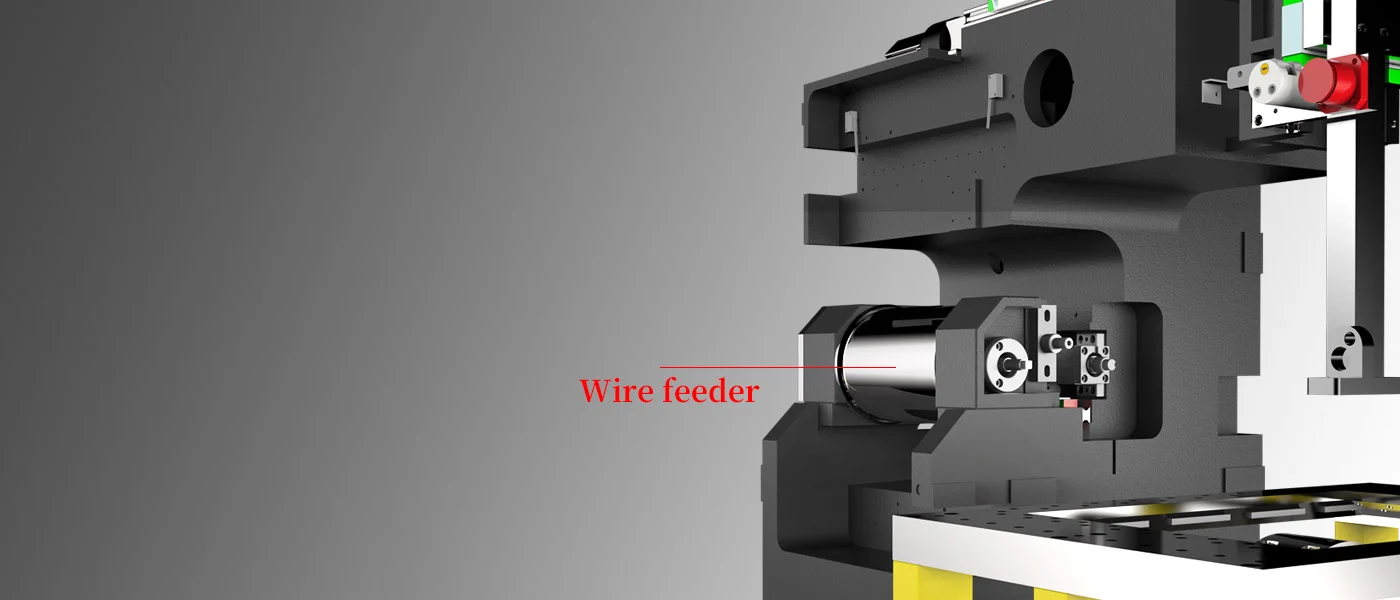

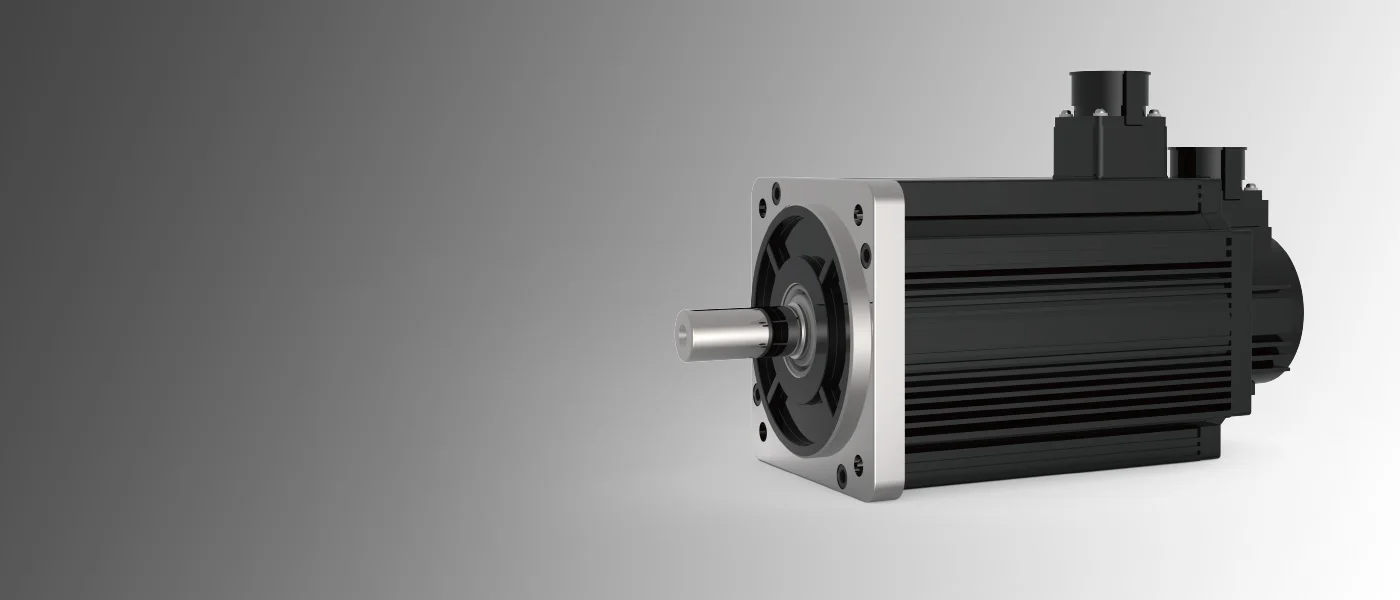

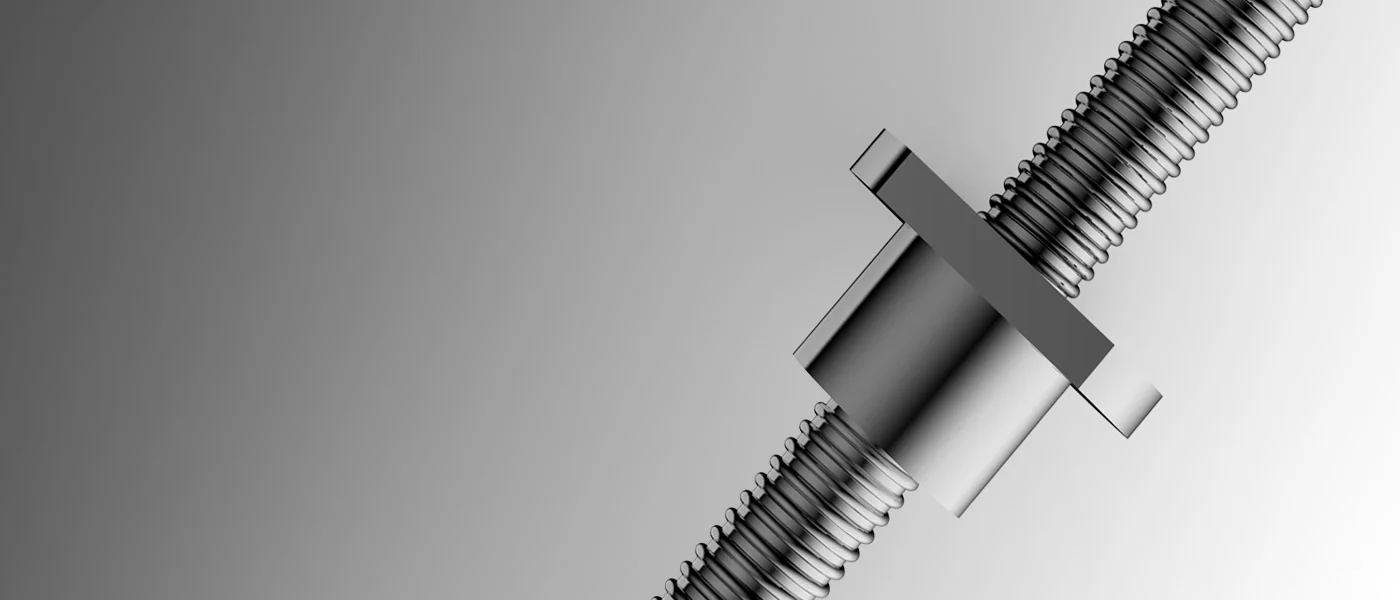

Model: Kingred Brand Wire Cut EDM KD500ZL. Core motion and control features include Servo Motor Drive with DSP+FPGA algorithm, Absolute Encoder Positioning, and PLC control. The machine implements 6-axis CNC with X, Y, U, V, Z and wire feed axes fully CNC. Mechanical components and construction details specified include H250 standard casting with two times tempering and 3-6 months natural aging, SP grade linear guideway with 1.5µm precision, and P grade ball screw. The machine integrates a 21.5-inch display and a horizontal wire feeder with vibration-reduction design. The software and control ecosystem comprises K-Cut EDM system, K-Cut Wire management system, and K-Cut PLC system. The KD500ZL supports multi-axis simultaneous machining to produce taper, variable cone, and upper and lower special-shaped workpieces. The K-Cut EDM system provides graphical programming and practical functions such as AR measurement of slant edge, finding the center of a circle, compensation of screw pitch, and intelligent auxiliary calculations to assist machining. The K-Cut WIRE system provides wire visual data management with integrated one-key wire feeding, CNC wire tightening, digital reverse control and dynamic wire speed control for digital wire-feed management.
