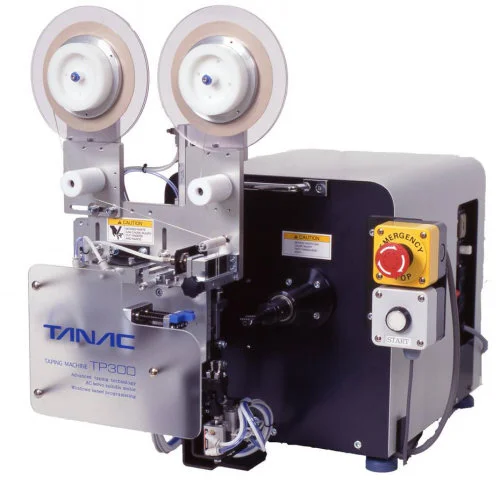

TP300 taping machine

Overview

The TP300 taping machine is available in two versions: TP300B for barrier or margin taping and TP300C for cover taping. Either version can be converted to the other function through the purchase of additional parts. The machine uses an AC servo motor to provide quick and accurate positioning of the tape start/end position. The spindle motor specification is AC Servo 200W with a spindle speed of 1,000rpm. Connection to a personal computer through the RS232C port is used to upload and download programs for extra program storage capacity. The on-line programming feature enables the PC to display taping turns count and production count. Coil Outer Ø for Taping: 4 ~ 40mm Maximum Rotation Ø: 70mm Width of Cover Tape: 3 ~ 40mm Width of Barrier Tape: 1.6 ~ 8mm Tape Supply Reel: Inner 3, Outer 6 Safety Cover: Left / Right Opening Power Supply: 230VAC 50/60Hz single phase Power Requirement: 400W Air Pressure: 0.49 ~ 0.59MPa Dimensions: 450 (W) x 680 (D) x 450 (H) mm Weight: 30kg TP300B is used for barrier or margin taping and TP300C is used for cover taping, with either version convertible to the other by purchasing additional parts. The RS232C PC connection and on-line programming feature support uploading and downloading of taping programs for extra program storage and allow the PC to show taping turns count and production count.
