TM-400061Y2

Overview

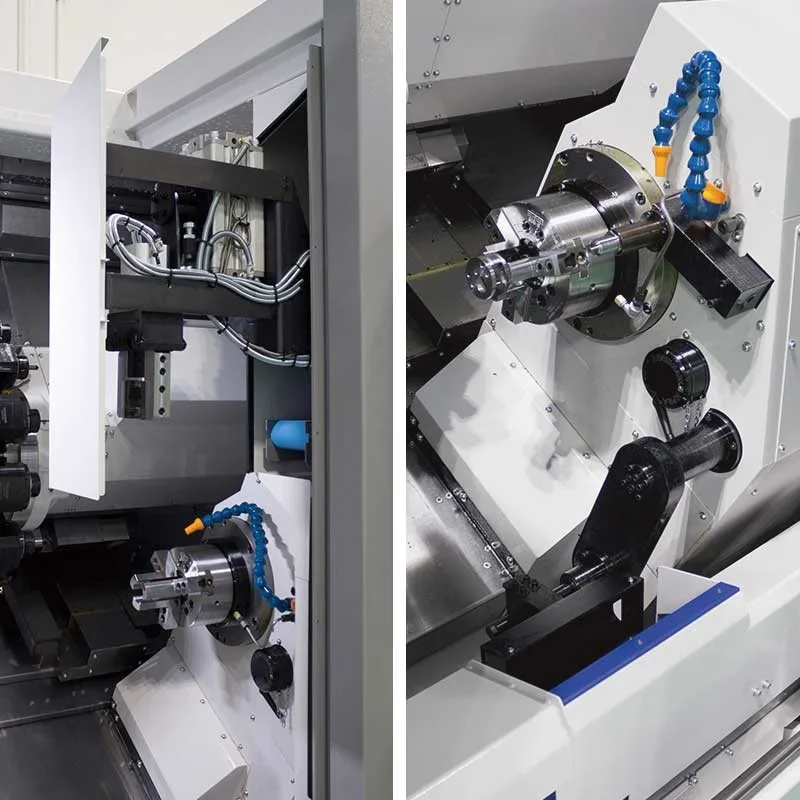

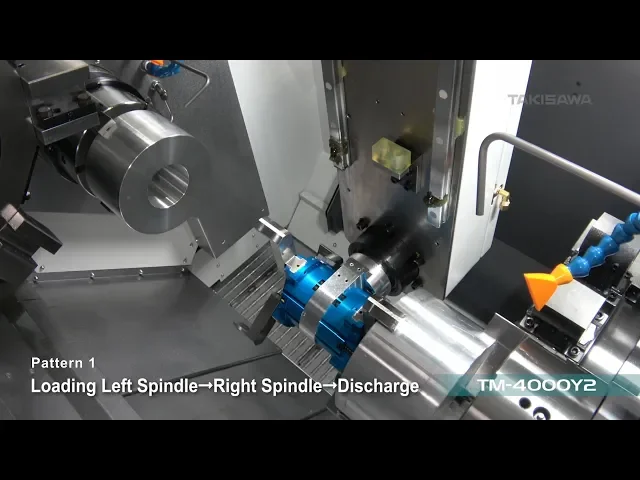

TM-400061Y2 is a dual-spindle turn-mill center configured with a 12-Station Turret (T12) and both upper and lower turret Y-axis capability. Chuck Size: inch | 8. Maximum turning length is specified as: mm | 800. Machine Height: mm | 2444 and Machine Weight: kg | 9880. Spindle and tooling specifications: Right Spindle Speed: min-1 | 5000; Left Spindle Speed: min-1 | 4200; Rotary Tool Speed: min-1 | 6000. Drive ratings are listed with S3 25%/continuous values as follows: Left Spindle Motor: kW | 18.5/15; Right Spindle Motor: kW | 15/11; Rotary Tool Motor: kW | 7.5/3.7. Axis performance and rapid traverses are provided separately for the two turrets. Rapid Traverse Rate (Upper Turret): m/min | X1 : 22 / Y1 : 12 / Z1 : 30. Rapid Traverse Rate (Lower Turret): m/min | X2 : 20 / Y2 : 12 / Z2 : 30. Designed for multi-process turn‑mill production of turned and milled features on the same setup, the machine supports parts up to mm | 800 in turning length and uses live rotary tooling (Rotary Tool Speed: min-1 | 6000) for milling, drilling and tapping operations. Dual spindles (Left and Right) with the listed spindle speeds and kW ratings enable workpiece transfer or simultaneous machining strategies that increase throughput in production environments. Typical applications include medium‑ to high‑volume production of precision turned components where multi-axis turret milling is required—examples include automotive and fluid-power components, transmission parts, and general industrial turned/machined parts. The T12 turret with Y-axis capability allows off-center milling and cross-hole machining while the rapid traverse rates (X/Y/Z values given per turret) shorten non-cutting time in serial production. Configuration and cell integration should account for the machine weight (kg | 9880) and height (mm | 2444) as part of factory layout planning.
