ALZSTAR 23-T/S

Overview

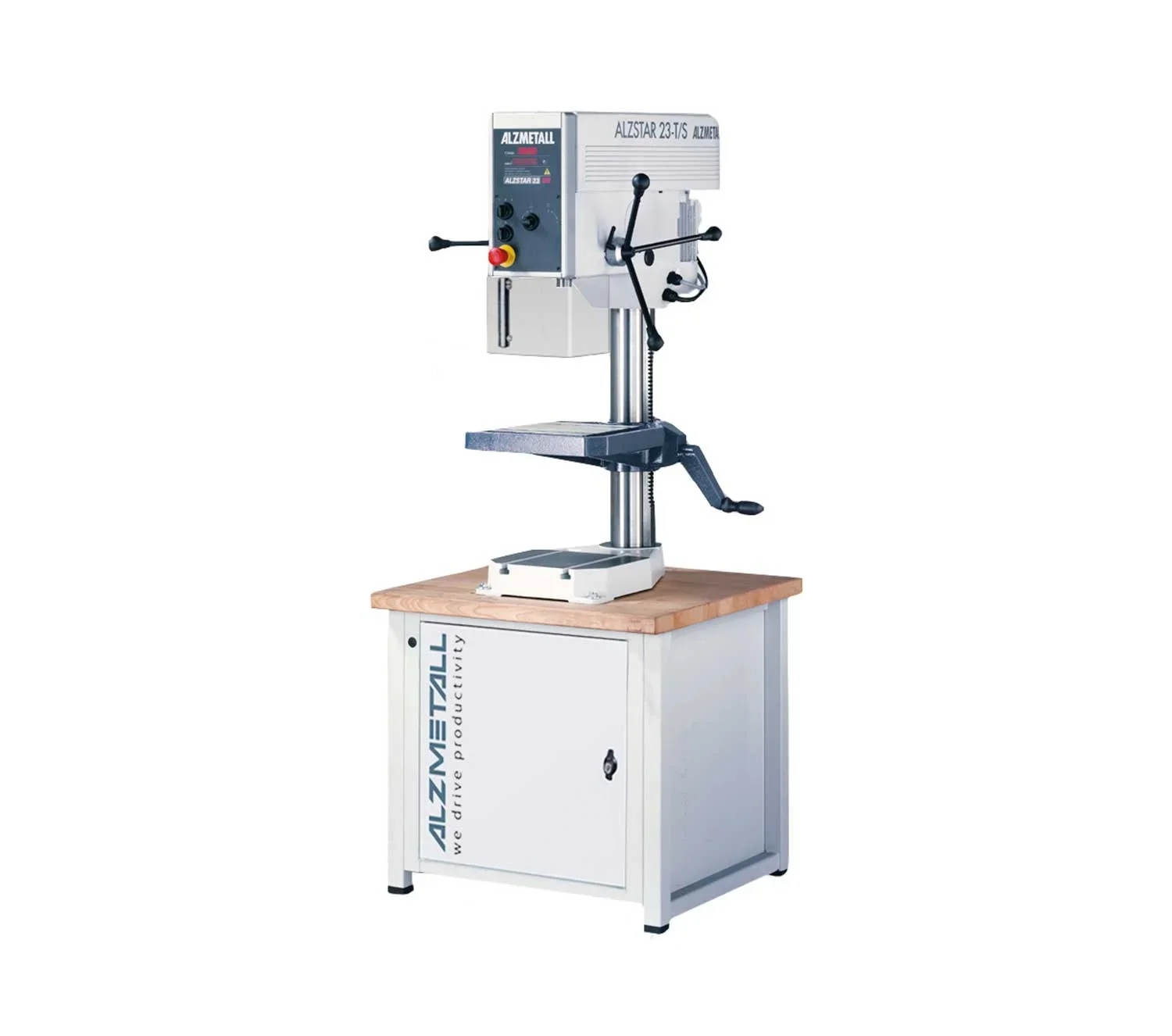

ALZSTAR 23-T/S is a Table Bench Drilling Machine with table height adjustment; a product variant listed is ALZSTAR 23-T iTRONIC. Key machining capacities and dimensions: - Drilling Capacity Steel E335 (St 60) [mm]: 23 - Tapping performance steel E335 (St 60) [mm]: M 14 - Spindle, short: MT 2 - Distance spindle to column [mm]: 250 - Table clamping area [mm]: 370 x 300 - Distance spindle - table min./max. [mm]: 125 / 455 - Column diameter [mm]: 90 - Z-travel of spindle [mm]: 100 Drive, speed and controls: Feed: manual. Power [KW]: 0,6 / 0,95. Motor 1 [MIN-1]: 750 / 1500. Spindle Rpm range | Option 1 [U/MIN-1]: 225-4300. Touchscreen: No. Standard equipment includes a main switch lockable; self-locking mushroom button for Emergency-Off; reverse switch for tapping; overload protection switch; infinitely variable speed drive, mechanical variator; digital RPM read-out; Motor Isolation Class “F” (155′); protection class IP 54; cable w/o plug, 2m; spindle protection electrically secured; lacquer DD-structured signal white RAL 9003, PANTONE 7545c, black. Available options include Table/Bench, LED machine light, Coolant Attachment B, Packaging, and Packaging table 09.1. The machine is configured for drilling in steel E335 (St 60) up to 23 mm and for tapping in the same material up to M 14, with a reverse switch provided specifically for tapping operations. Its manual feed, adjustable table height, table clamping area of 370 x 300 mm, spindle Z-travel of 100 mm and a spindle-to-table travel range of 125 / 455 mm support positioning and manual processing of workpieces, while the variable spindle speed range 225-4300 U/MIN-1 and the digital RPM read-out provide speed control for drilling and tapping tasks.
