Benchtop Tempering Furnace / Oven 1250°F - K-120832-DW 480V-3PH

Overview

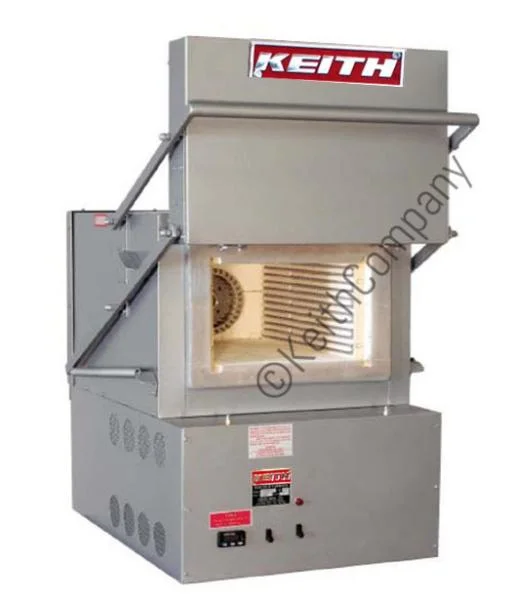

K-120832-DW is a benchtop tempering furnace/oven rated for 1250°F. The base unit includes a Watlow PM3T-Legacy controller, (1) type K thermocouple, fire brick with easy to change resistance wire heating elements, a vertical rising counter balanced door that keeps the hot face away from the operator, door safety switches that disconnect power to heating elements when the door is opened, and a door with ceramic fiber rope seal for better temperature uniformity. Electrical and physical specifications are: Power kW: 5; Volt/Phase: 480V - 3PH; Chamber Size W"xH"xD": 12x8x29; Outside Dimensions: Width 25 in, Length 54 in, Height 28 in; Weight: 500 lb. Optional and upgrade items listed for the model include Watlow PM4R PM Plus programmable temperature controller (4 programs with 10 steps) (+$380), Watlow F4 programmable temperature controller (40 programs with 256 steps) (+$1,640), West ProEC-44 (RFQ), Audible Alarm (+$125), Honeywell digital eZtrend paperless digital recorder with 3 channels (RFQ), Quench Tank on steel casters (17 x 17 x 17) (+$570), Steel furnace Stand (+$625), Test Thermocouple port with threaded plug (+$780), Watlow series LV high limit temperature protection (+$510), and spare parts including Spare ceramic hearth plate (+$145), Two (2) spare element plate assemblies without embedding (+$730), and Spare Thermocouple with ceramic insulator connector bushing (+$145). Described as a Benchtop Tempering Furnace / Oven, the K-120832-DW provides benchtop tempering/oven capability up to 1250°F. Programmable controller options (Watlow PM4R PM Plus and Watlow F4) and an available Quench Tank on steel casters (17 x 17 x 17) are offered as optional configurations.
