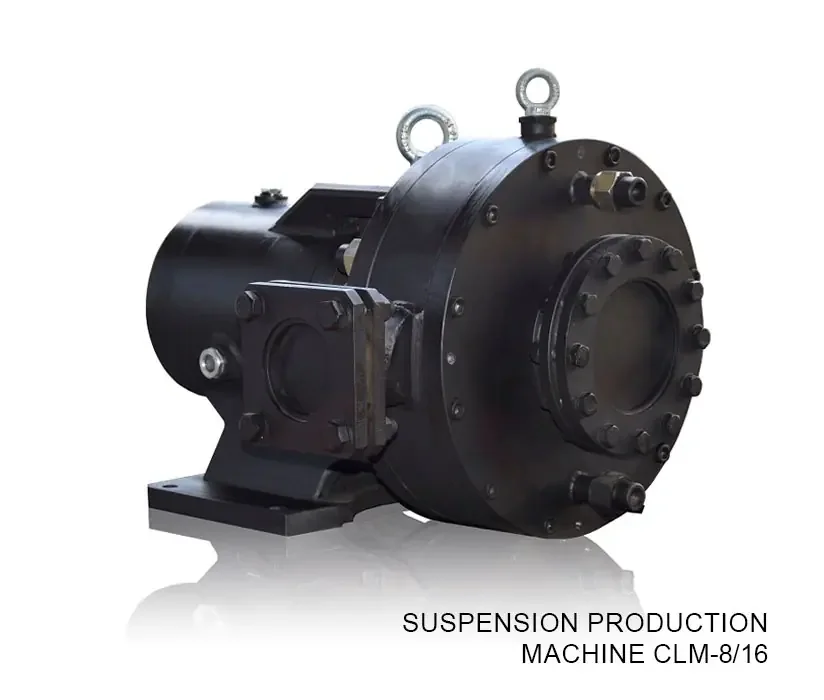

Suspension production machine CLM-8/16

Overview

The CLM-8/16 suspension production machine by Globecore is made to produce suspensions and employs novel mixing and processing technologies for highly accurate component mixing to produce stable and reliable suspensions. The unit provides adjustments for temperature, viscosity, and mixing speed and includes an automated control system that reduces the necessity for manual intervention. Performance specifications include a mill capacity of 8… 16 m3/h (35… 70)*, kinematic viscosity of product not more than 150 mm2/s (1.5 St), initial size of polymer particles not more than 5 mm (0.2 in), maximum operating pressure 0.6 MPa (87 psi), rated rotation frequency 2,950 rpm, and drive motor power 75 kW; parameters of electricity mains are listed as custom. Mechanical and dimensional data include nominal bore diameter of mill fittings inlet 120 (4.7) mm and outlet 80 (3.1) mm, operating temperature not more than 180 °C (356 °F), mill shaft seal type: packing, knife gap adjustment type: manual, knife gap adjustment range, mm (in): 0,2…62 (8×10-3… 8×10-3), knife tip speed at 3,000 rpm not more than 47 m/s (105 mph), overall dimensions length 1,690 (67) mm, width 650 (26) mm, height 770 (30) mm, and net weight not more than 780 kg (1,720 lb). The CLM-8/16 is made to make suspensions that are frequently used in the chemical, food, cosmetics, and pharmaceutical industries. It is intended to produce stable and reliable suspensions while preserving active component qualities through controllable temperature, viscosity, and mixing speed. The machine’s automated control system and compact innovative design make it suitable for use by large and medium-sized industrial firms and reduce the need for manual intervention.
