Medical Coating Equipment

Overview

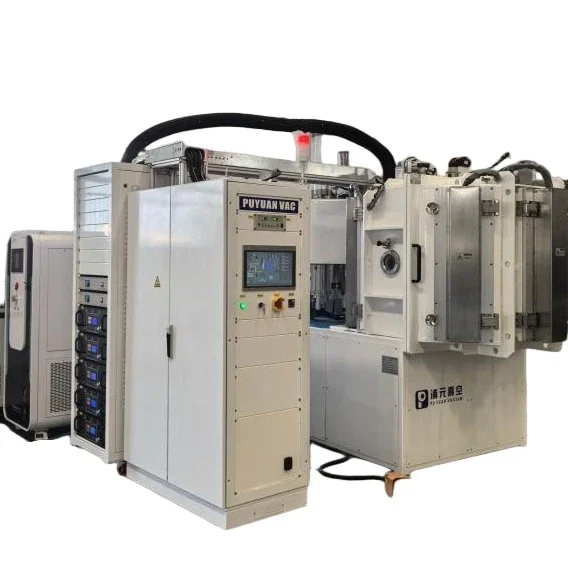

Medical Coating Equipment is a PVD (Physical Vapor Deposition) coater designed for medical products. Condition: New. Warranty: 1 Year. Certification: CE, ISO9001. After-sales service includes field installation, commissioning and training, and engineers available to service machinery overseas. The vacuum chamber material is SUS-304 superior stainless steel and the vacuum chamber size is custom-made, with structure options of Vertical/Horizontal/Batch/In-line. Supported substrates include Plastic, metal, glass, ceramic, stainless steel, etc., and deposition materials include Titanium, Aluminum, Chrome, Copper, TiAl, TiN, SS, etc. Coating film functions listed are Decorative, super hard, wear-resistant, anti-corrosion, reflective, etc., with available coating colors such as Gold, Rose gold, silver, black, blue, coffee, rainbow, purple, etc. The equipment provides high-performance coatings to meet requirements for biocompatibility, durability, sterility, functionality and aesthetics. The coating process is carried out in a high vacuum environment producing dense, non-porous, high-purity films with precisely controllable thickness usually in the micron or sub-micron range, and the coating material is described as chemically stable for long-term implantation. Vacuum coating Ti/Pt film on the surface of medical devices is explicitly listed as an application. The equipment deposits ultra-thin, high-purity, dense, biocompatible coatings that provide wear resistance, corrosion resistance, low coefficient of friction, and reflective or decorative finishes. These coatings are intended to improve surface hardness, reduce friction during instrument operation, isolate substrates from contact with body fluids and disinfectants, hinder bacterial adherence due to a smooth non-porous surface, and maintain chemical stability to avoid decomposition or release of harmful substances during long-term implantation.
