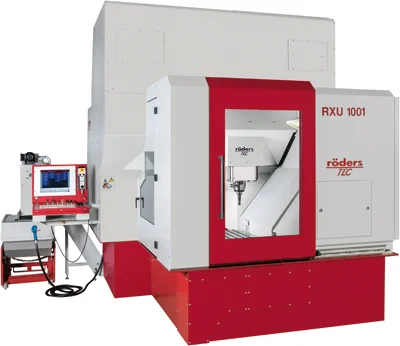

RXU1001 – Quadroguide

Overview

RXU1001 – Quadroguide with QUADROGUIDE for high roughing capacity, dynamics and precision. All axes with direct drives. Milling spindle may be chosen depending on the application, up to 102 Nm (S1) available; the standard milling spindle is 24,000 rpm, 67 Nm (S1), HSK A63 with max. tool diameter 35 mm (others on request). Machining range is 1000 mm x 810 mm x 500 mm with a table size of 996 mm x 796 mm and a maximum height of 700 mm between spindle nose and machine table (680 mm clearance between machine table and portal). Workpiece weight max. 2,000 kg and feed 0–60,000 mm/min. Tool changer: 40 places standard, optional 75 or more places (chain changer can be loaded during machining), and an integrated measuring laser. Chip disposal is with 2 screws into a chip box behind the machine or with an additional chip conveyor. Machine weight is ~19.5 t and required space is W 4120 mm x L 4910 mm with HC (depending on configuration) x H 3300 mm. Described as ideal for forging dies, mould and die making, aerospace industry, medical applications, machine production and part manufacturing. The QUADROGUIDE is indicated as providing the high roughing capacity, dynamics and precision relevant to these applications.
