GS 800/5-T

Overview

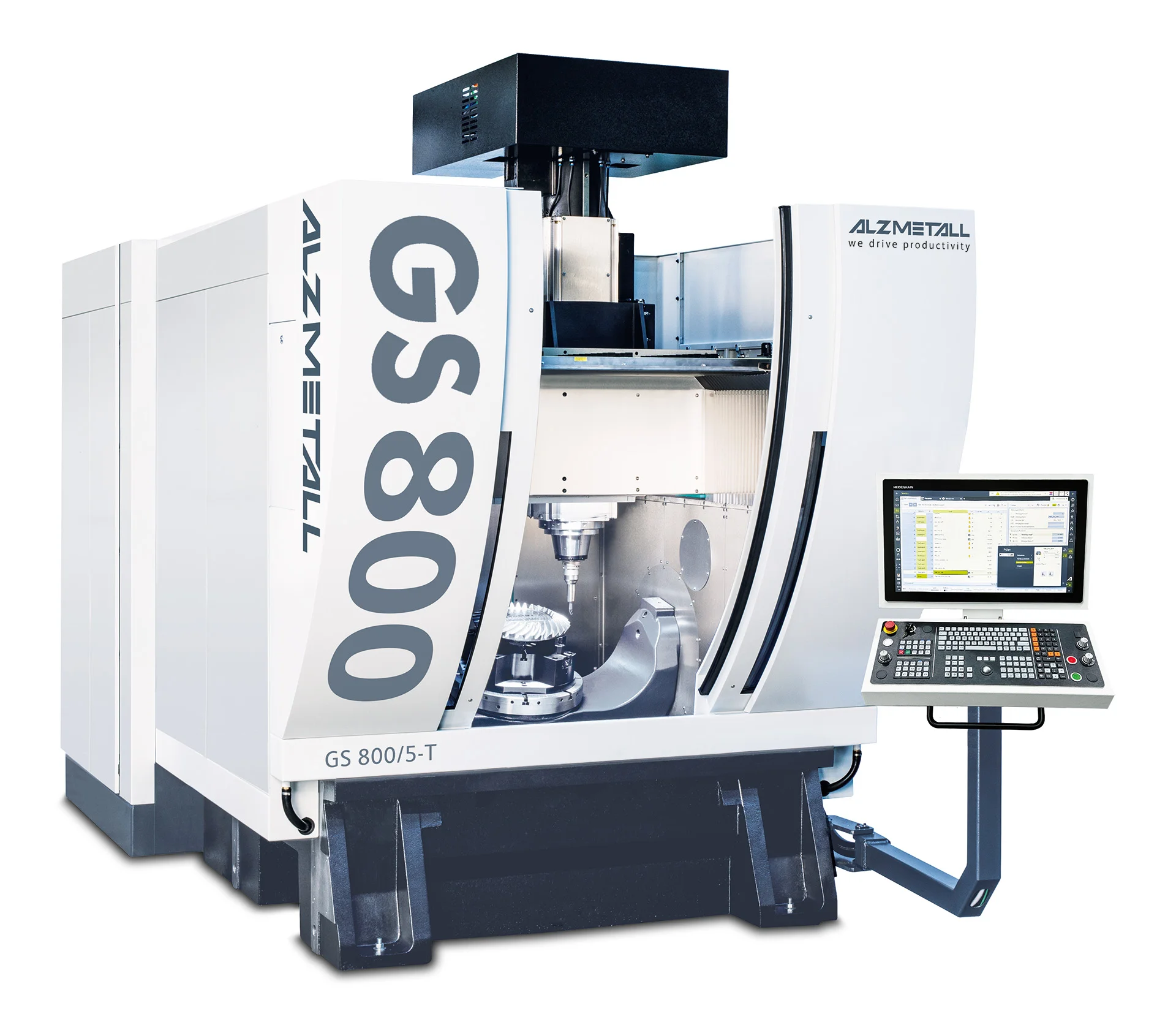

Model GS 800/5-T is presented under the ALZMETALL Gantry Concept (AGK) and is made from Grey Cast Iron and Spheroidal Graphite Cast Iron. The machine features a Monobloc Travel-System-Carriage with an incorporated Box-in-Box-System. It uses 2-fold linear guidance for the X-Y travel system-carriage and 4-fold linear guidance for the Z-axis with travel-system-carriage with integrated motor-spindle. 3-fold torque-drives are specified for the Swivel-Axis (A-Axis) and Rotary-Axis (C-Axis) at GS 800NE/5-T and GS 800NE/5-FDT. Technical data: - X-Axis: 660 - Y-Axis: 800 - Z-Axis: 550 - Interference circle diameter: 800 - Distance Spindle: Up to 650 mm - Machine-Table Load: 500 - Maximum rapid travel X/Y/Z at TCP max.: 75 - Cutting-Tool Interface: HSK-A63 - Motor-Spindle-Power at CDF 25% max.: 16 - Variable Speed Range max.: 10.000 - Motor-Spindle Torque at CDF 25% max.: 102 The machine supports hybrid machining applications such as drilling, milling, turning and grinding at one clamping set-up. It is specified to handle up to 500 kg workpiece weight including clamping-set-up-device at GS 800NE/5-T and GS 800NE/5-FDT.
