GR-510

Overview

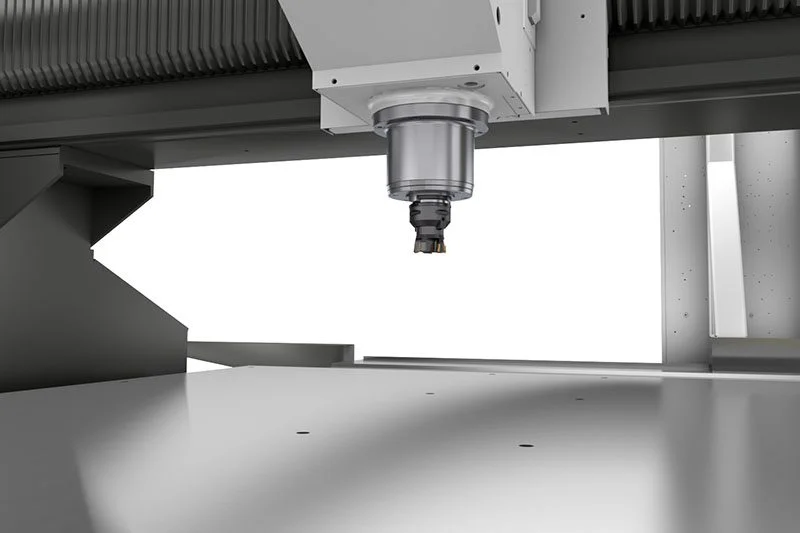

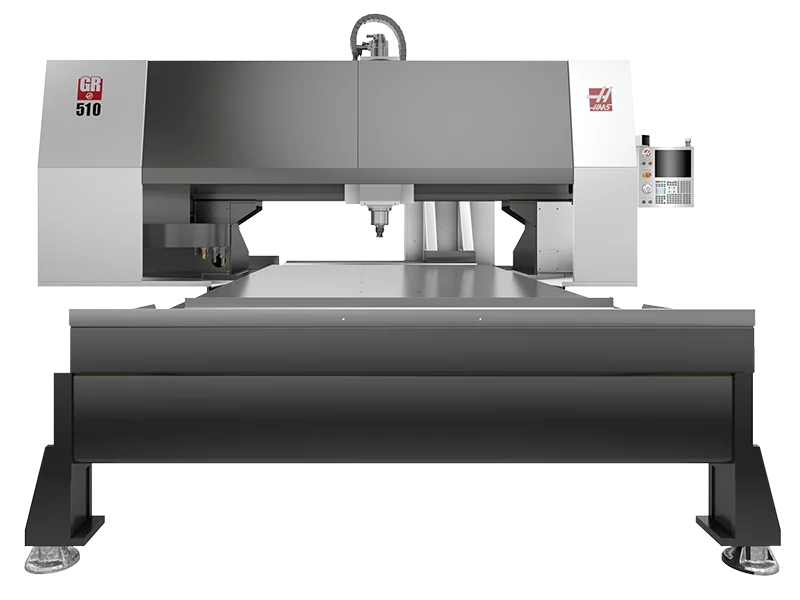

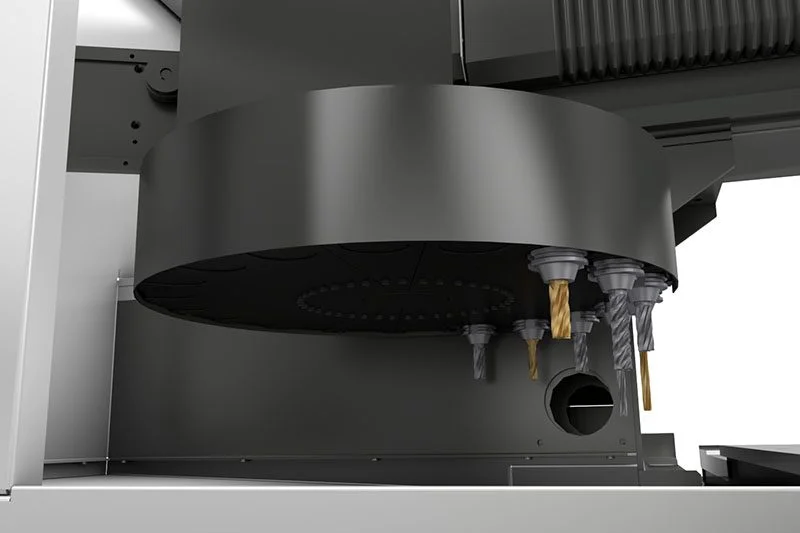

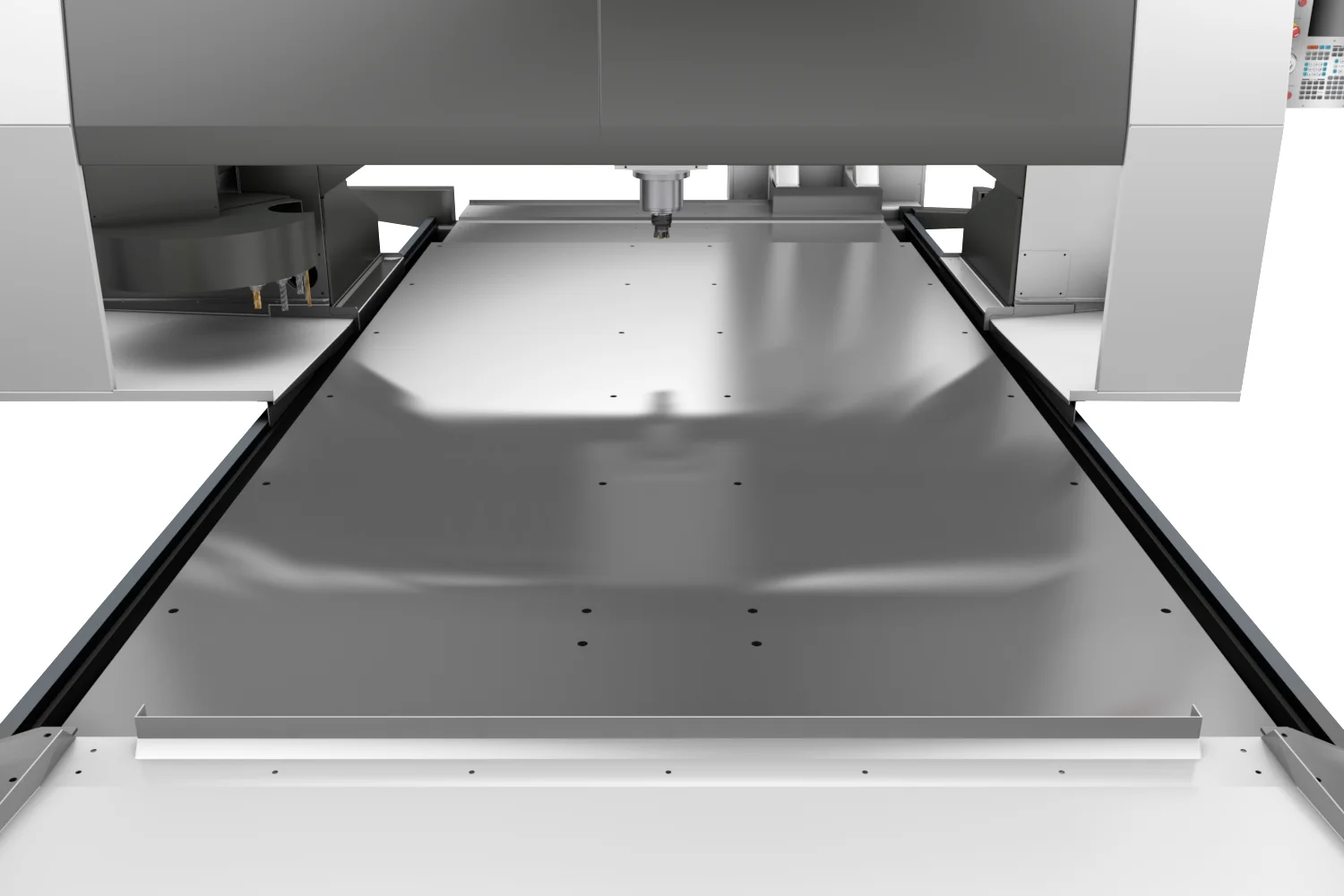

The GR-510 is a CNC gantry router with travels of 121.00 in (X) x 61.00 in (Y) x 11.00 in (Z). The machine has a 122.0 in x 53.0 in table and a 1" thick aluminum table is standard. The machine features rigid-steel construction and a traveling guard for chip and coolant containment. Between columns is 62.0 in (1575 mm) and the maximum evenly distributed weight on the table is 6000 lb (2722 kg). The spindle is an 8100-rpm spindle rated 15.0 hp (11.2 kW) with a max speed of 8100 rpm, max torque of 48.0 ft-lbf @ 1500 rpm (65.0 Nm @ 1500 rpm), CT or BT 40 taper, and a Direct Speed, Belt Drive spindle drive system. Max cutting feedrate is 800 ipm (20.3 m/min); rapids are X 800 ipm (20.3 m/min), Y 2100 ipm (53.3 m/min), and Z 1100 ipm (27.9 m/min). Spindle nose to table ranges from 13.5 in (343 mm) to 2.5 in (64 mm). Tool handling is provided by a 10-pocket carousel tool changer with a max tool diameter (full) of 3.5 in (89 mm) and max tool weight of 12.0 lb (5.4 kg). Coolant capacity is 95 gal (360 L), air required is 4 scfm @ 100 psi (113 L/min @ 6.9 bar) with a 3/8 in inline air hose and 3/8 in coupler, and minimum air pressure is 80 psi (5.5 bar). Input AC voltage (3 Phase) is 220 VAC (Low) at 40 A full load and 440 VAC (High) at 20 A full load, and machine weight is 19400 lb (8800.0 kg). Standard control features include a Control Widescreen Monitor, Ethernet Interface, WiFi Connection for the Haas Control, Power Surge Protection, Early Power-Failure Detection Module, Advanced Tool Management, Media Display M-Code M130, HaasConnect remote monitoring, HaasDrop, 1 GB standard program memory, and ECO Mode. Warranty is 1-Year Standard Warranty. The GR-510 has the power to cut aluminum and other metals, and the speed to cut plastics and other light materials. The machine can easily handle large sheets of material or machine small parts by the thousand.
