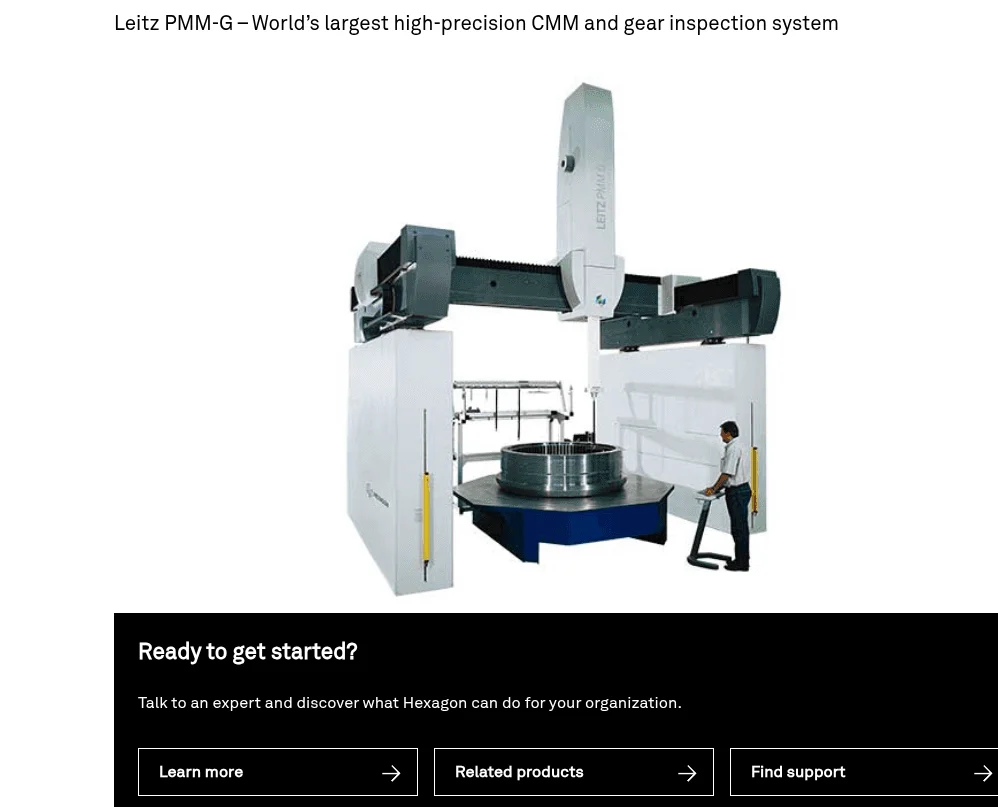

Leitz PMM-G

Overview

Overhead CMM architecture with an integrated U-shaped foundation and an integrated pneumatic damping system that isolates both machine and foundation to stabilize long-reach gear measurements. The X axis is equipped with dual drive motion systems and transducer systems to support heavy-duty, high-accuracy traverses. Probe head: Leitz LSP-S2. Styli configurations of up to 800 mm and 1000 g are possible, enabling measurement of deep tooth spaces and long shafts. Available CMM stroke configurations span multiple model families (XX.20.ZZ, XX.30.ZZ, XX.40.ZZ, XX.45.ZZ) with X stroke options 3000/4000/5000/6000/7000 mm depending on model; Y stroke choices of 2000, 3000, 4000 or 4500 mm depending on series; and Z stroke options 1200, 1600, 2000, 2500 or 3000 mm. X/Y/Z combinations are offered across the listed model variants to match part envelope requirements. Gear inspection capability: module range 1 - 100 mm. Minimum-to-maximum gear diameter (spur) per machine family: 10 -1950 mm (PMM-G XX.20.ZZ), 10 - 2950 mm (XX.30.ZZ), 10 - 3950 mm (XX.40.ZZ), 10 - 4450 mm (XX.45.ZZ). Minimum-to-maximum gear diameter (helical*) per family: 10 - 1600 mm (XX.20.ZZ), 10 - 2500 mm (XX.30.ZZ), 10 - 3500 mm (XX.40.ZZ), 10 - 4100 mm (XX.45.ZZ). Maximum shaft length: up to 7000 mm. Interfaces for automation and data exchange include Gleason GAGE 4/WIN; Klingelnberg KIMOS; DMG (Deckel Maho Gildemeister); Depo. Evaluation and reporting conform to DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT. The product listing also cites compatibility with gear cutting tool types relevant to inspection context: Hob cutter, broach, shaper cutter, shaving gears, form cutter. Intended for industrial-scale gear and shaft inspection in production or metrology labs where large envelopes and long shafts must be measured with high stability and traceability. Typical users include transmission and gearbox manufacturers, heavy-equipment and wind-turbine component producers, aerospace gear suppliers, and contract inspection houses verifying gears produced by hob cutters, broaches, shapers, shaving or form-cutting processes. Deployment scenarios include floor-mounted metrology cells integrated into production lines or standalone inspection rooms; the integrated U-shaped foundation and pneumatic damping reduce the need for external vibration isolation measures for long-reach measurements. The range of stroke configurations and styli capacity supports both small-diameter, fine-module gears and very large-diameter or long-shaft components, and the available interfaces (Gleason GAGE 4/WIN, Klingelnberg KIMOS, DMG, Depo) enable integration with common gear-manufacturing and CNC equipment for automated transfer of measurement programs and results. Compliance with DIN, ISO, AGMA, ANSI, JIS, CNOMO, CAT makes it suitable for quality workflows requiring standard reporting and cross-supplier acceptance.
