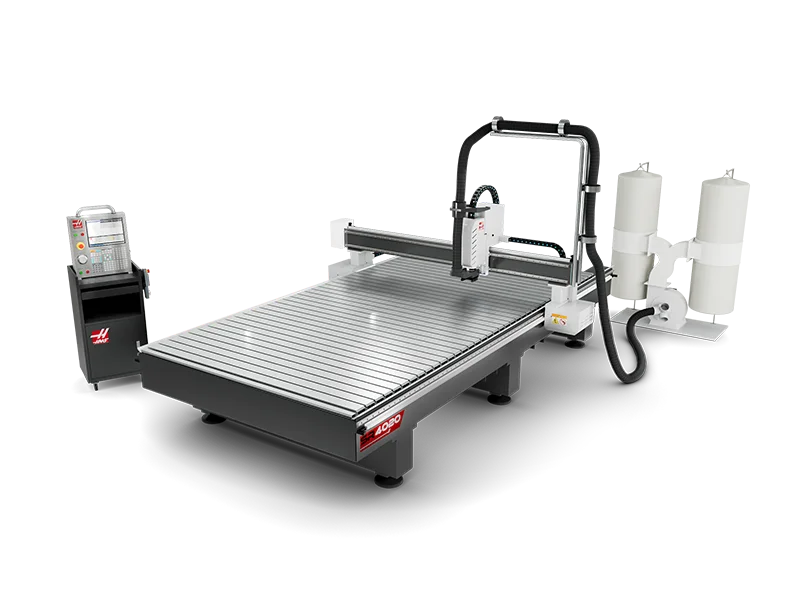

SR-4020 Sheet Router

Overview

SR-4020 Sheet Router. Starting Price:US$62,995CNY ONLY. CNC Sheet Router described with 159" x 86" x 6.8" in the product summary. The machine is equipped with an 18,000-rpm ER32 collet spindle that accepts tools up to 0.75" (20 mm) diameter and is rated 6.1 hp | 4.5 kW with an integral spindle/motor drive and ER32 taper; spindle max speed is 18000 rpm and spindle nose-to-table travel is ~max 7.3 in | 185 mm and ~min 0.3 in | 8 mm. Axis travels are X: 158.60 in | 4029 mm, Y: 86.40 in | 2195 mm, and Z: 6.76 in | 172 mm; table length is 157.5 in | 4000 mm and table width is 82.7 in | 2100 mm, with a maximum evenly distributed load on the table of 8818 lb | 4000 kg and table between columns of 82.1 in | 2084 mm. Feedrates are Max Cutting 236 ipm | 6.0 m/min with rapids X/Y 315 ipm | 8.0 m/min and rapid Z 98 ipm | 2.5 m/min; axis drive type is Stepper Motor with Max Thrust X: 340 lbf | 1512 N, Y: 680 lbf | 3025 N, and Z: 1150 lbf | 5110 N. Electrical inputs include Input AC Voltage (3 Phase) - Low: 220 VAC and Full Load Amps (3 Phase) - Low: 30 A; shipping dimensions are 222.0 in x 112.0 in x 75.5 in | 564 cm x 285 cm x 192 cm and shipping weight is 4850 lb | 2200.0 kg. Standard features include a full-function Haas control with Large Remote Jog Handle with Touchscreen Display, Ethernet Interface, WiFi Connection for the Haas Control, Advanced Tool Management, Visual Part Programming System, User-Definable Macros, Standard Program Memory 1 GB, built-in dust collection system, and built-in tool setting system; a 6-Month Standard Warranty is listed and a Dust Collector for Sheet Router is offered as a product option. Haas describes the SR Series as an affordable alternative to gantry-style milling machines for cutting lighter, non-metallic materials such as wood, plastics, high-density foam, and composites. The SR-4020's large travels are stated to easily accommodate full sheets of material, long extrusions, or multiple setups of smaller parts. The product text states that the intuitive Haas control interface and robust features make programming and adjustments easy even for beginners.
