Digatron DLS

Overview

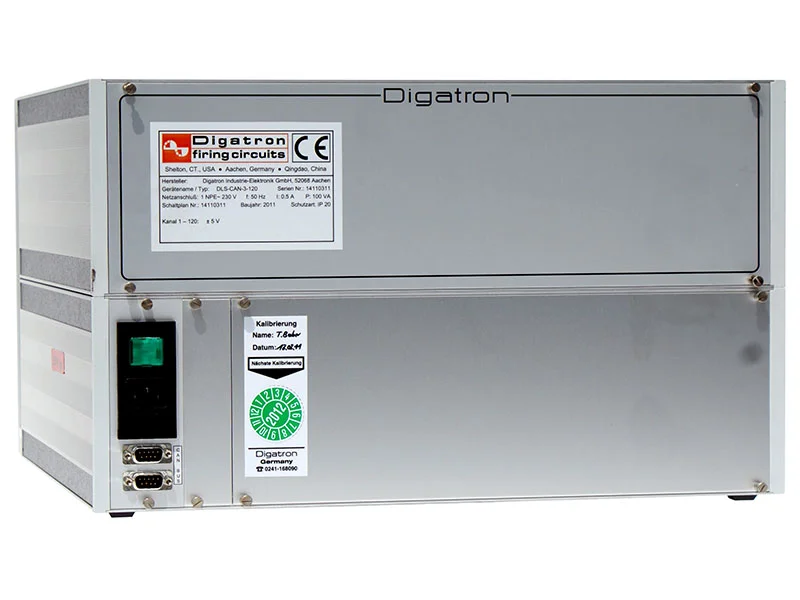

Digatron DLS is a fully integrable data logger designed for seamless data acquisition during the test phase, recording single cell voltages and battery and tank voltages during the test cycle. The device has a modular design that can be adapted to specific requirements and is scalable from a small design with only a few channels up to larger installations with several hundred channels. It can be fitted with inputs for many different types of temperature probes and the measuring transducer can replicate virtually every physical value. Key technical details: - Interface: Digatron CAN Bus - No. of Input Channels: Max. 500 Channels - Type of Input Channels: Voltage, Thermocouples, PT100, AD 590 - Accuracy Voltage Channels: ± 0,1 % fs - Resolution Voltage Channels: ± 15 bit - Accuracy Temperature Channels: ± 1° C - Resolution Temperature Channels: ± 11 bit (AD 590) - Data Acquisition Rate (DAR): Min. 20 msec - Datasheet: https://www.digatron.com/Portals/38/Images/documents/PRODUKTBLATT_DL_EN.PDF?ver=2019-06-12-091050-313&timestamp=1561628249587 The Digatron DLS is used for acquiring sequential test-cycle data for single cell voltages and for battery and tank voltages. Recorded data can be used for comparisons, assessments or as evidence. The logger also supports temperature measurement via multiple probe types and can capture other physical values through its measuring transducer, and its modular, scalable design supports small installations and larger systems with several hundred channels.
