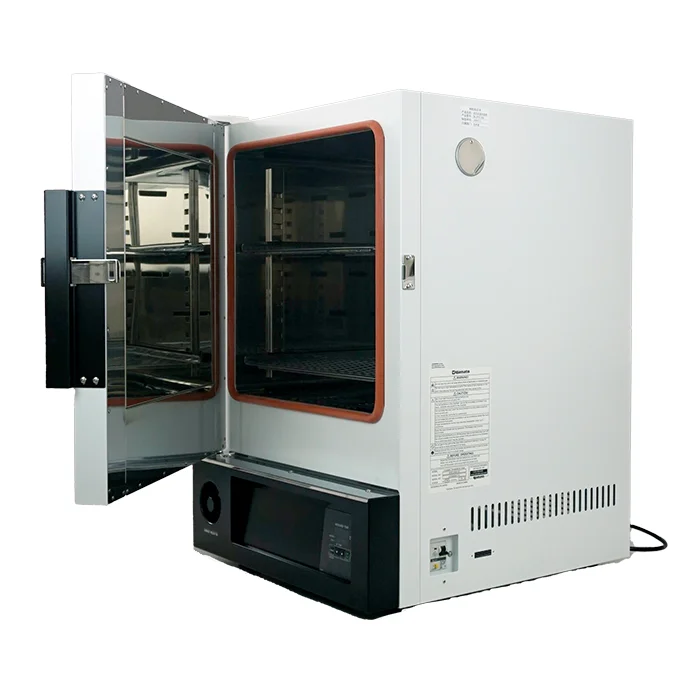

Yamato DKL Series Basic and Economical Forced Convection Oven

Overview

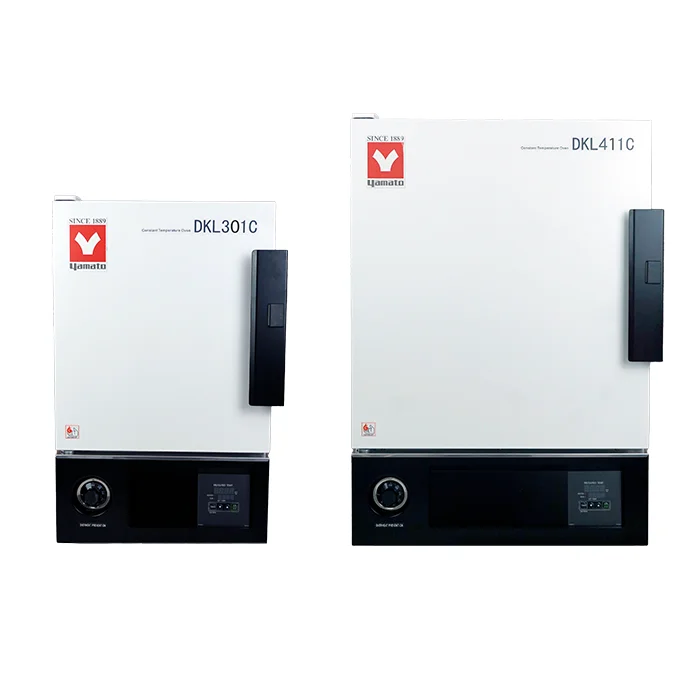

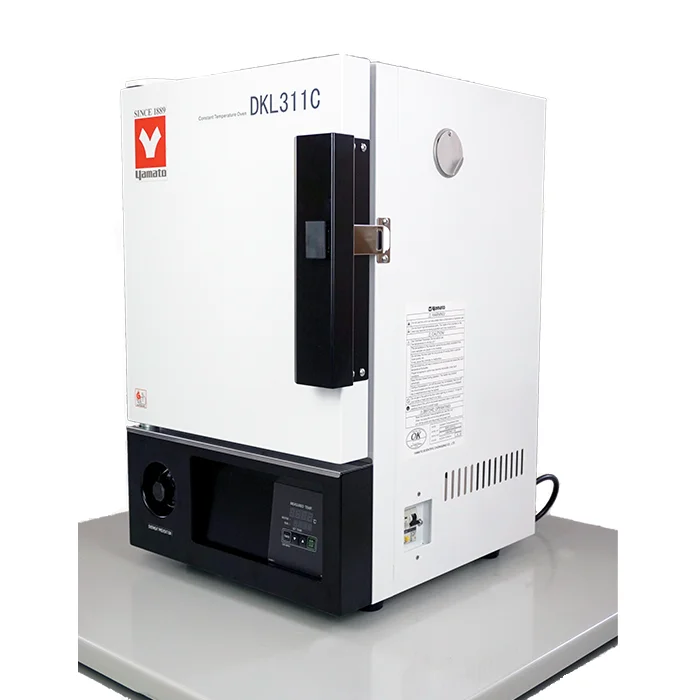

Yamato DKL Series Basic and Economical Forced Convection Oven is a basic non-programmable forced convection constant temperature oven with simple operation functions. Not Available For Sale: DKL301C, DKL311C, DKL401C, DKL411C, DKL601C, DKL611C. Circulation Method: Forced air circulation. Operating Temperature Range: Room temp. +10~260°C. Temp. Control Accuracy: ±1°C (at 260°C). Temp. Distribution Accuracy: ±2.5°C (at 260°C). Temperature rise time: ~90min (at room temp. ~260°C). Interior Material: Stainless Steel (SUS430). Exterior Material: Steel plate SPCC (powder coating). Heat Insulating Material: Glass wool. Heater: SUS pipe heater, 0.8kW / 1.2kW / 1.5kW (model-dependent). Fan motor: Sirocco fan 10W. Cable Port: 30 mm l.D.×1 pc. (right side). Exhaust Port: 30 mm l.D.×2 pcs. (top). Temperature control is PlD control by microprocessor with digital setting by ▲/▼ key. Operation functions include Fixed temperature, Quick auto-stop, Auto stop, and Auto start; additional functions include a calibration off-set function, SSR heater circuit control, and a K-thermocouple sensor. Internal Dimensions W×D×H: 310×310×310mm, 450×450×450mm, 610×500×500mm; External Dimensions W×D×H: 410×450×680mm, 560×600×820mm, 710×650×880mm. Internal Capacity: 27L, 90L, 150L. Shelf Plate With Standard Load: 15kg/piece. Shelf Rest Step Number: 6 steps, 9 steps, 12 steps. Shelf Rest Pitch: 35mm. Safety Device: Self diagnostic functions (temperature sensor error, memory error, auto overheat prevention, measured temperature error), MCB with an over current protector, hydraulic standalone overheat prevention device. All products come with a 1 year warranty and the company notes 40 years as a leading scientific lab equipment provider in the United States. The DKL Series are basic non-programmable forced convection constant temperature ovens designed to provide forced air circulation temperature control within Room temp. +10~260°C. Available operation modes include Fixed temperature, Quick auto-stop, Auto stop, and Auto start with digital setting by ▲/▼ key and a calibration off-set function.
