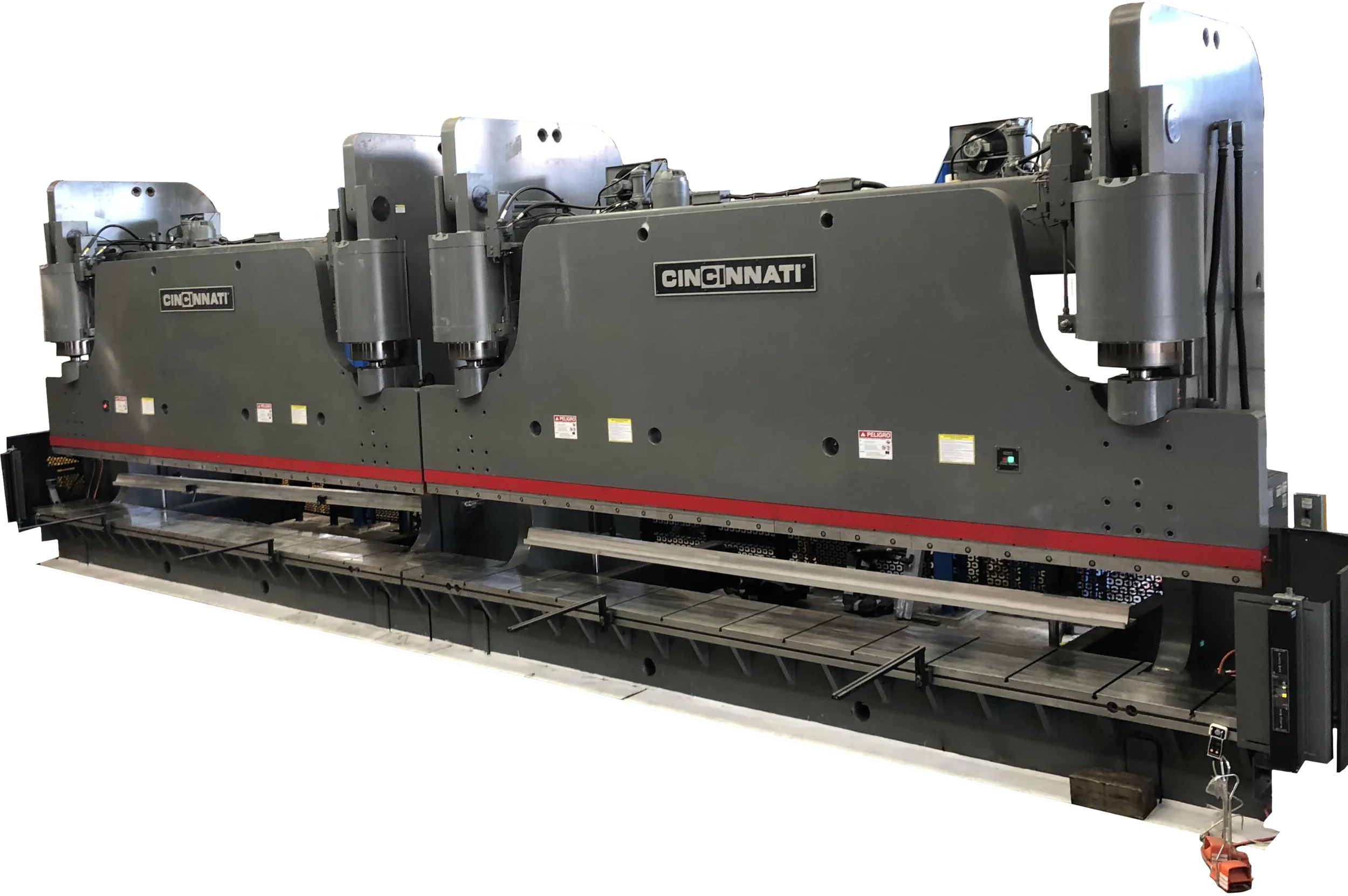

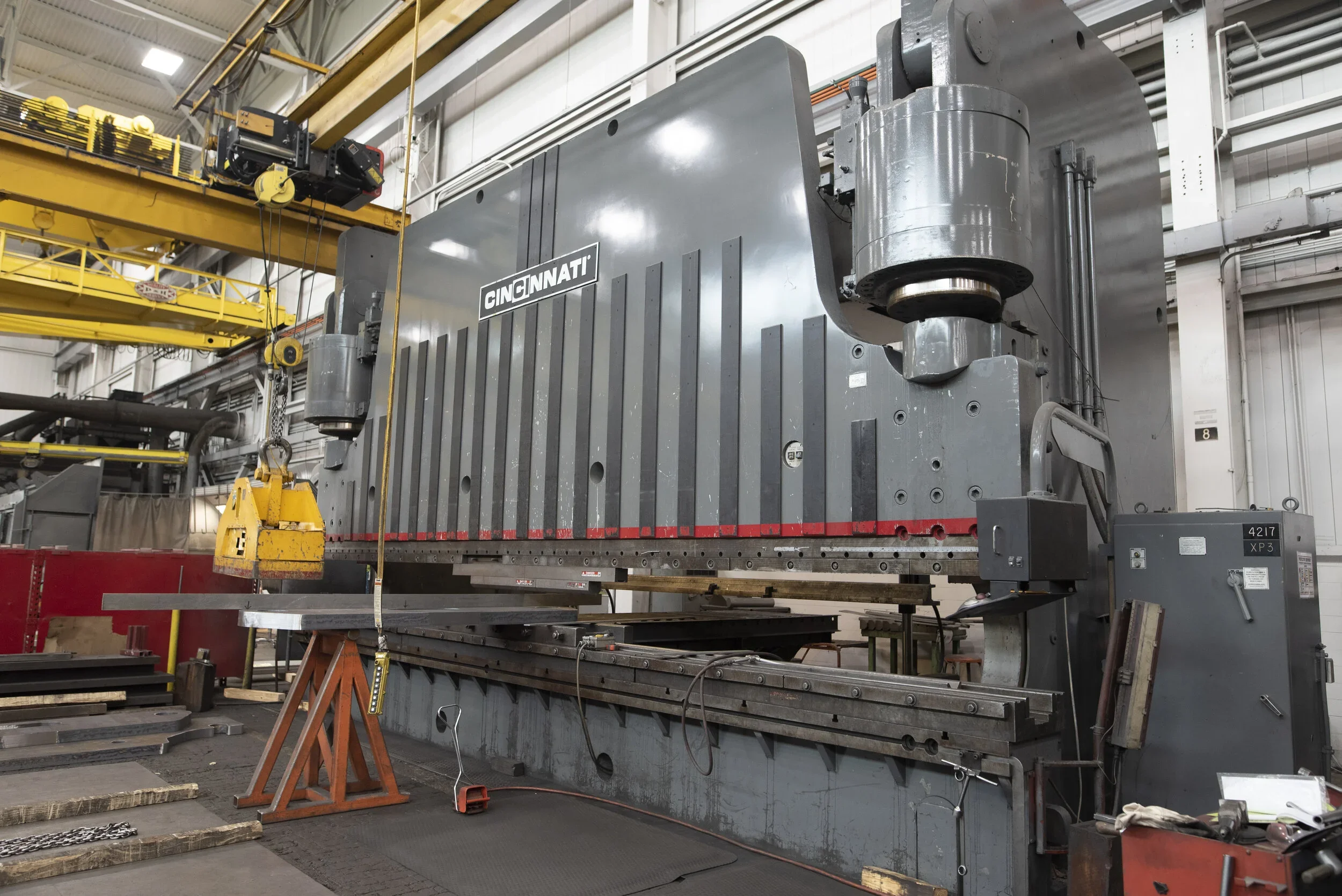

Proform and Autoform Large Tonnage Press Brakes

Overview

Proform and Autoform Large Tonnage Press Brakes are available in large versions ranging from 400 to 2,000 tons. The Autoform & Proform are described as durable and stable, offering rigidity and accuracy, and are fully upgradable with control upgrades, new back gauges and retrofit options. Technical specifications are provided in tables listing models and corresponding dimensions, speeds, motor and shipping weight data; examples include: - 400PF8: Overall Die Surface (ft.): 12 | Closed Height (in.): 8 | Stroke Length (in.): 12 | Open Height (in.): 20 | Throat (in.): 10 | App. Speed (ipm): 167 | Forming Speed (ipm): 36 | Return Speed (ipm): 164 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 45,000 - 400PF10: Overall Die Surface (ft.): 14 | Closed Height (in.): 8 | Stroke Length (in.): 12 | Open Height (in.): 20 | Throat (in.): 10 | App. Speed (ipm): 167 | Forming Speed (ipm): 36 | Return Speed (ipm): 164 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 50,000 - 400PF12: Overall Die Surface (ft.): 16 | Closed Height (in.): 8 | Stroke Length (in.): 12 | Open Height (in.): 20 | Throat (in.): 10 | App. Speed (ipm): 167 | Forming Speed (ipm): 36 | Return Speed (ipm): 164 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 56,000 - 400PF14: Overall Die Surface (ft.): 18 | Closed Height (in.): 8 | Stroke Length (in.): 12 | Open Height (in.): 20 | Throat (in.): 10 | App. Speed (ipm): 167 | Forming Speed (ipm): 36 | Return Speed (ipm): 164 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 63,000 - 400PF16: Overall Die Surface (ft.): 20 | Closed Height (in.): 8 | Stroke Length (in.): 12 | Open Height (in.): 20 | Throat (in.): 10 | App. Speed (ipm): 167 | Forming Speed (ipm): 36 | Return Speed (ipm): 164 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 70,000 - 500PF8: Overall Die Surface (ft.): 12 | Closed Height (in.): 10 | Stroke Length (in.): 12 | Open Height (in.): 22 | Throat (in.): 14 | App. Speed (ipm): 143 | Forming Speed (ipm): 29 | Return Speed (ipm): 146 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 57,000 - 500PF10: Overall Die Surface (ft.): 14 | Closed Height (in.): 10 | Stroke Length (in.): 12 | Open Height (in.): 22 | Throat (in.): 14 | App. Speed (ipm): 143 | Forming Speed (ipm): 29 | Return Speed (ipm): 146 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 63,000 - 500PF12: Overall Die Surface (ft.): 16 | Closed Height (in.): 10 | Stroke Length (in.): 12 | Open Height (in.): 22 | Throat (in.): 14 | App. Speed (ipm): 143 | Forming Speed (ipm): 29 | Return Speed (ipm): 146 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 69,000 - 500PF14: Overall Die Surface (ft.): 18 | Closed Height (in.): 10 | Stroke Length (in.): 12 | Open Height (in.): 22 | Throat (in.): 14 | App. Speed (ipm): 143 | Forming Speed (ipm): 29 | Return Speed (ipm): 146 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 76,000 - 500PF16: Overall Die Surface (ft.): 20 | Closed Height (in.): 10 | Stroke Length (in.): 12 | Open Height (in.): 22 | Throat (in.): 14 | App. Speed (ipm): 143 | Forming Speed (ipm): 29 | Return Speed (ipm): 146 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 84,000 - 600PF8: Overall Die Surface (ft.): 12 | Closed Height (in.): 10 | Stroke Length (in.): 12 | Open Height (in.): 22 | Throat (in.): 14 | App. Speed (ipm): 107 | Forming Speed (ipm): 24 | Return Speed (ipm): 100 | Motor (HP): 25 | Domestic Shipping Wgt. (lbs): 67,000 The large Proform and Autoform press brakes are presented for high-tonnage applications, including large construction equipment, large agricultural equipment, large custom structural steel products, ship building, and power pole manufacturing. The product description states the machines have the size—and accuracy—needed to retain customers, implying suitability where large part size and bending accuracy are required.
