SOGEVAC B Single-stage rotary vane vacuum pumps

Overview

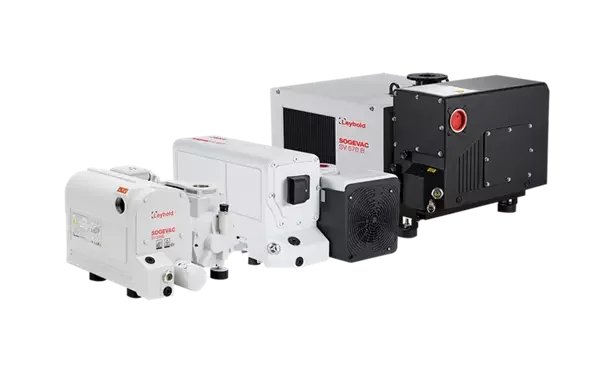

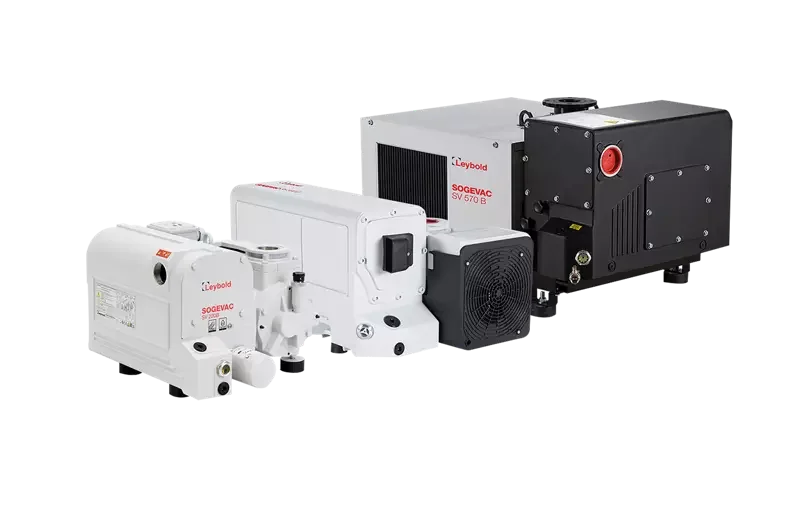

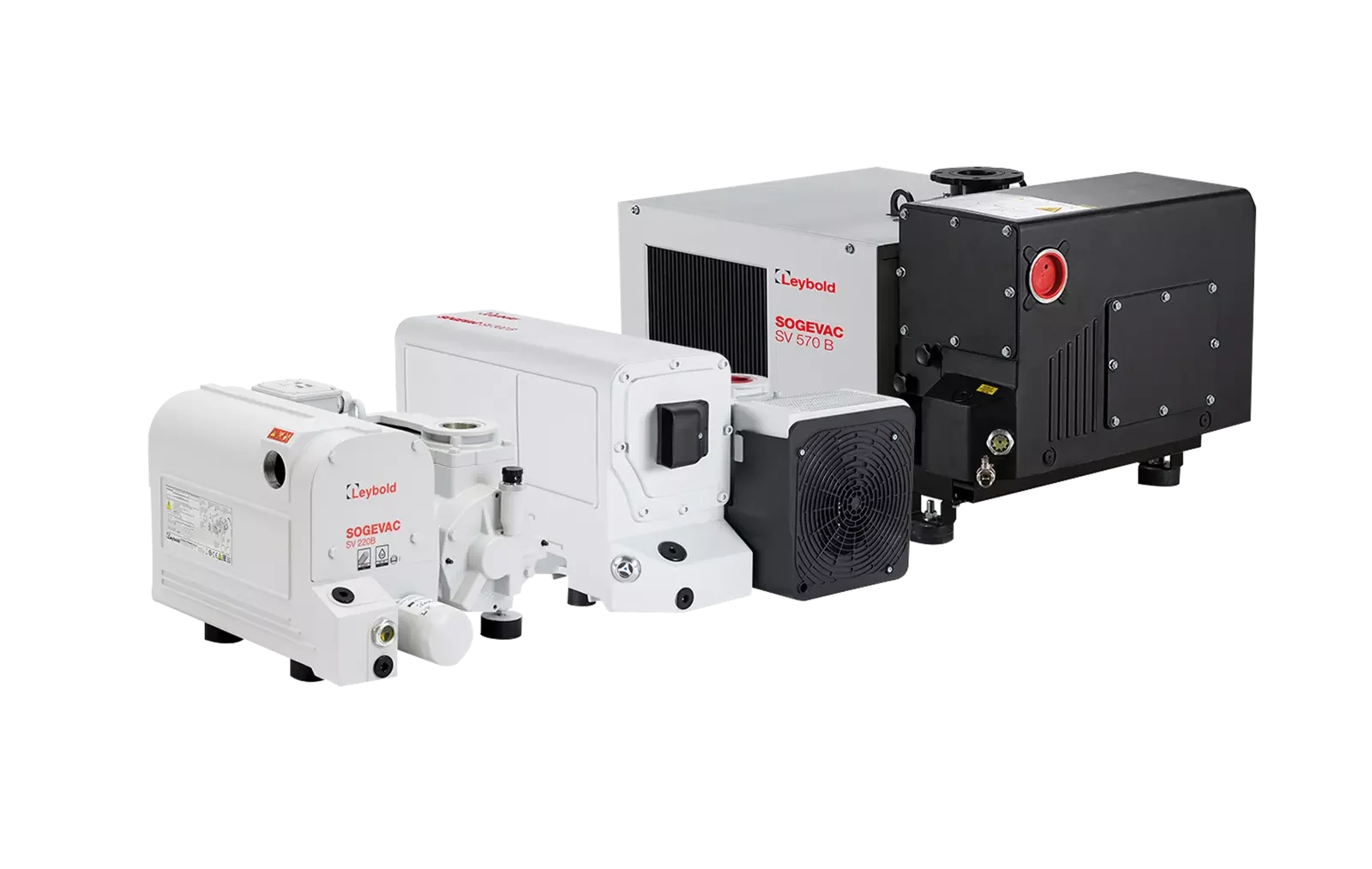

The Leybold SOGEVAC B are single-stage oil-sealed rotary vane pumps characterized by low noise levels, high pumping speeds and high reliability. Pumping capacity range is 10 to 750 m3/h @ 50 Hz, with model-specific pumping speeds specified for 50 Hz and 60 Hz (examples: SV 750 B: 755 m3/h at 50 Hz; SV 630 B: 640 m3/h at 50 Hz and 755 m3/h at 60 Hz). Ultimate total pressure without gas ballast is specified per model (examples: SV 16 B: 1 mbar(a); SV 40 B, SV 65 B, SV 100 B: 0,5 mbar(a); SV 220 B, SV 320 B, SV 570 B, SV 630 B, SV 750 B: 0,08 mbar(a)). Oil loss is below 1 ppm and oil is injected into the inlet chamber to guarantee air-tightness, lubrication and cooling; oil is roughly separated by gravity in the oil sump and finely separated in the exhaust filter. Applications listed for the SOGEVAC B series include vacuum packaging (chamber machines, table-top machines, modified atmosphere, rollstock), coating, central vacuum systems, heat treatment, degassing, drying / filling, impregnation and leak testing. Variants are available for special applications: SOGEVAC B ATEX for explosion-proof applications, SOGEVAC B DOT for brake fluid filling, and SOGEVAC PFPE for pumping Oxygen (O2) or aggressive gases. Remote connectivity and monitoring is provided via GENIUS Instant Insights, which informs with actionable insights to prevent common pump failures and provides 24/7 accessibility.
