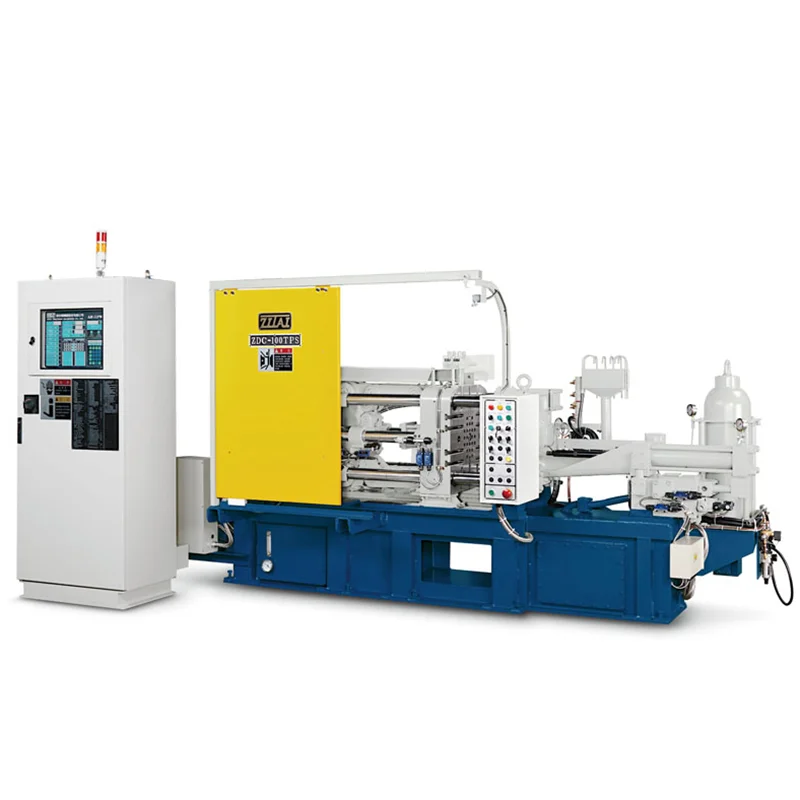

ZDC-100TPS Cold Chamber Die Casting Machine

Overview

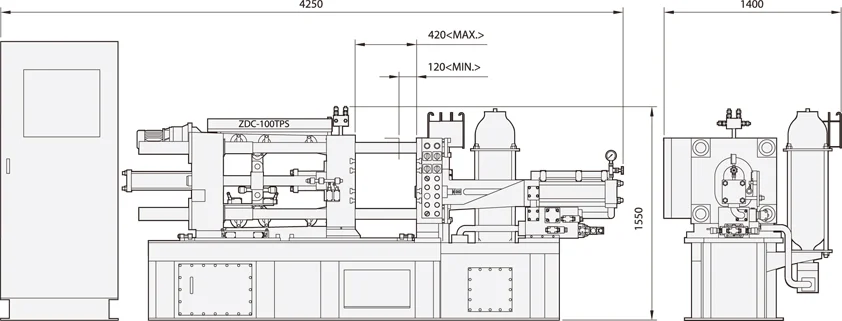

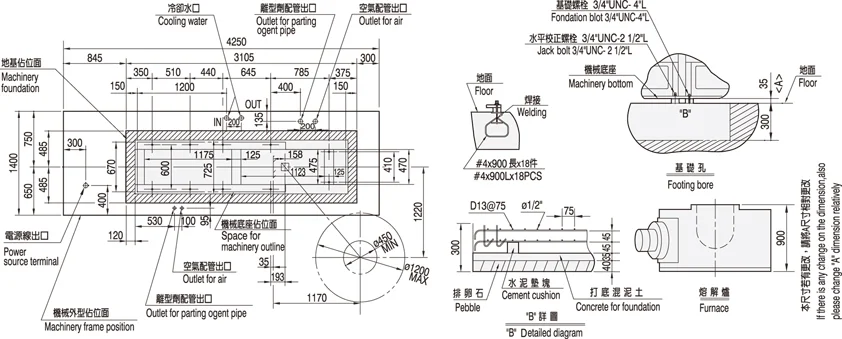

The ZITAI ZDC-100TPS is a cold chamber die casting machine designed for precision aluminum castings and is described as a compact, high-efficiency entry-level model with a 100 ton locking force. It features a TPS injection system for high-speed, precise injection and requires a capacity of 12 KVA for power source operation. Die and locking details include a die platen dimension of 580 x 580 mm, tie bar distance of 382 x 382 mm, die height distance 120 ~ 420 mm, die stroke 240 mm, and tie bar diameter ∅70 mm. Die adjustment speed is 159(50HZ) mm/min and 192(60HZ) mm/min. The machine overall dimensions are 4250x1400x1550 mm and machine weight is 3.3 ton. Ejecting and electrical specifications are ejecting force 6.6 ton with ejecting stroke 70 mm, electromagnetic valve PT 3/8" x 1(set), oil outlet PT 1/2" x 2 (sets), motor capacities Pump 7.5 KW and Die adjustment 0.375 KW, and power source AC 200/220(50/60HZ). Shot unit specifications include shot force 13.3 ton, max. shot speed 5.0 M/Sec, plunger stroke 325 mm, plunger tip penetration 135 mm, and plunger tip diameter Min Ø 40 | Med Ø 45 | Max Ø 50. Casting pressures are 1058 | 836 | 677 Kgf/cm² across corresponding casting areas 95 | 120 | 148 cm², yielding net shot weights 0.64 | 0.81 | 1.0 Kgf. Cooling and hydraulic data list cooling water inlet pipe diameter PT 1-1/4", die cooling water outlet pipe diameter 1" x 1 (inlet) and 2" x 1 (outlet), number of die cooling water adjusting valves 7 (inlet) and 8 (outlet), die cooling water 15~30 Ltr/min, die & ejecting pressure 100;100 Kgf/cm², max. intensified pressure of injection 210 Kgf/cm², cycling oil volume 240 Ltr, and cooling water 30 Ltr/min (Water temp 25°C). The ZITAI ZDC-100TPS is intended for producing small, high-precision aluminum parts. Explicitly stated target applications include small electronic components such as mobile phone and camera housings, LED lighting parts, compact automotive precision components, and home appliance parts.
